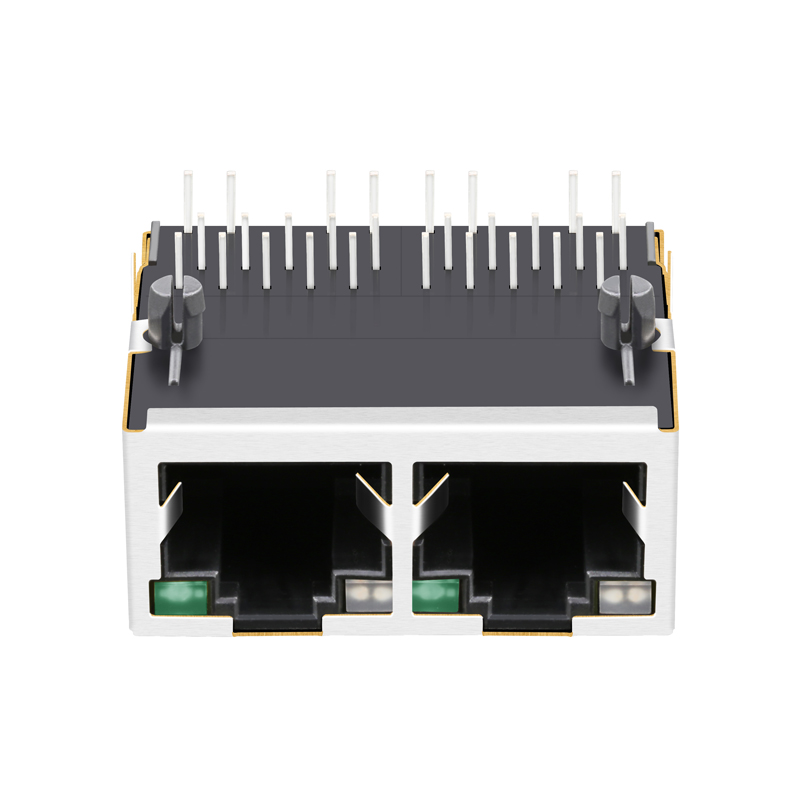

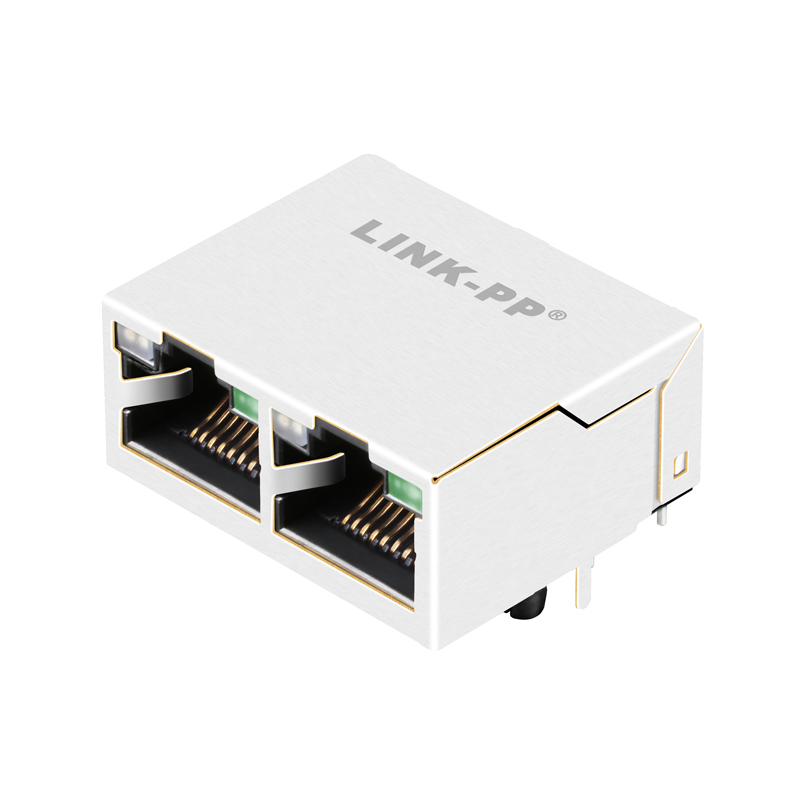

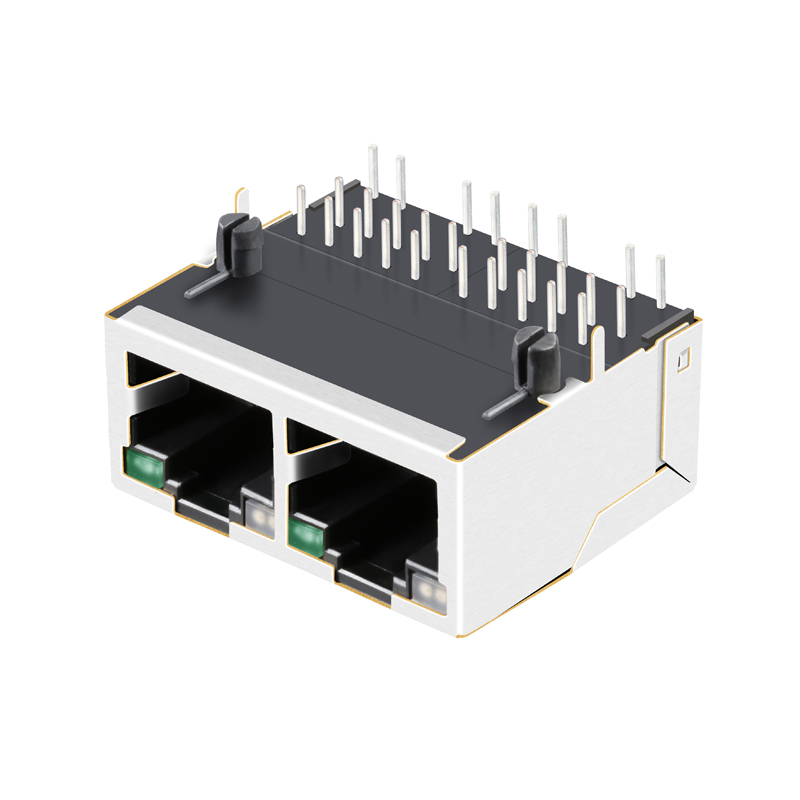

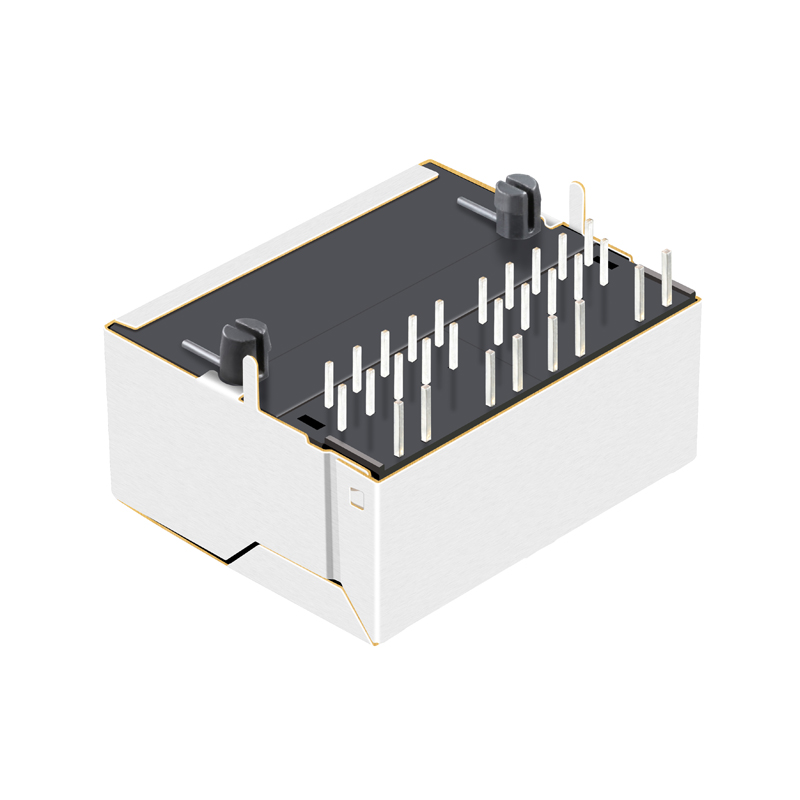

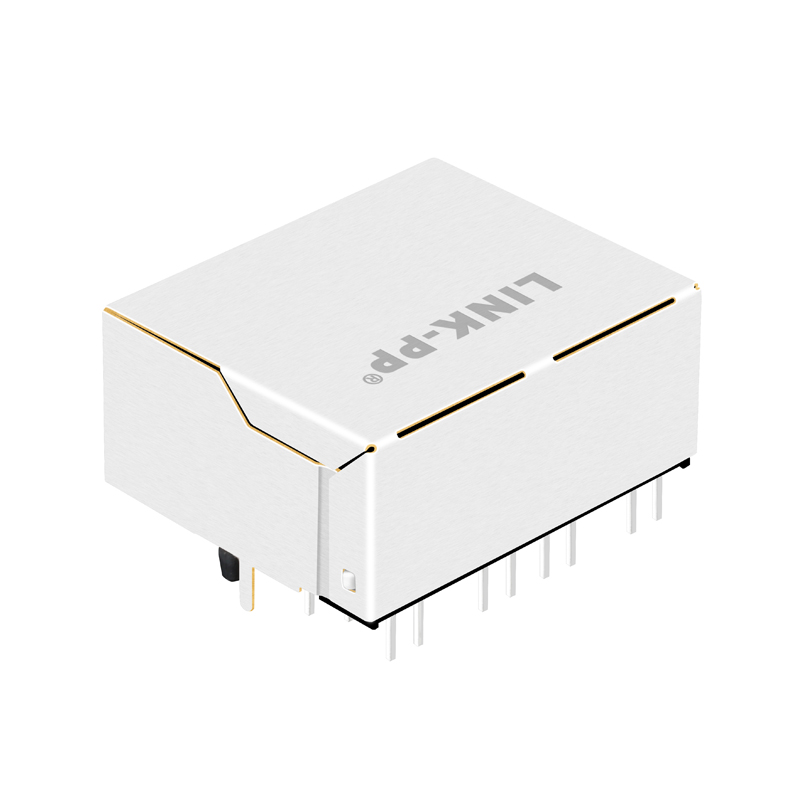

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
1 / 5
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1

Send Inquiry

Product Description

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1

Separator 1X2 Harmonica Jack Separator
Part Number5-6610197-1
AutoMDIXYES
Bst CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"/50u"
Cores Per Port4
DiodesNO DIDES41
LED OptionGREEN/YELLOW
LatchUP
Number of Ports1X2
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWITH OR WITHOUT
Speed10/100 BASE-T
Temperature0 TO 70°C / -40 TO 85°C
Turns Ratio RX1CT:1
Turns Ratio TX1CT:1
✓ Why Choose Our Products

Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

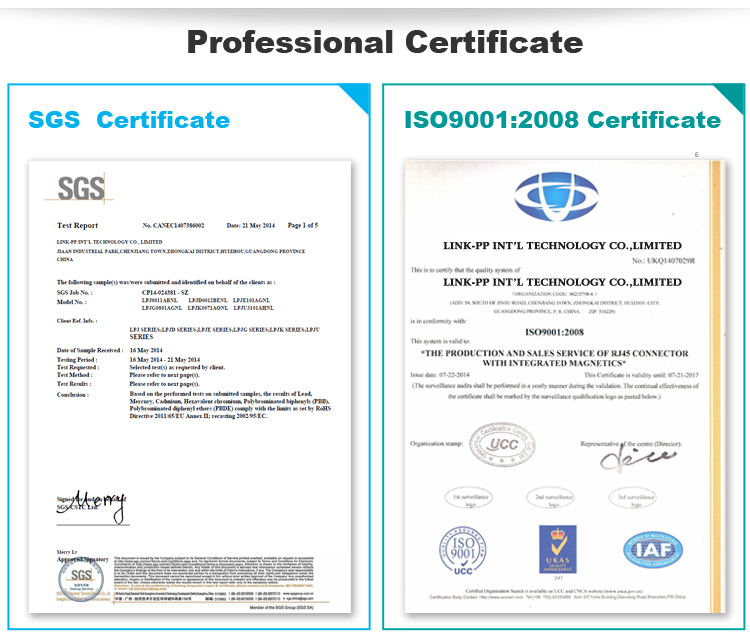

Professional Certification

● ISO 9001:2008
● UL Certification
● Reach Certification
● RoHS Compliance
● Active Environmental Policy

100% Quality Guarantee

● Manufactured Under Strict Controls
● 100% Tested (Not Just Batch Tested)
● Quality Guarantee: 6 Years
● Professional OEM Manufacturing Experience

Competitive Price And Service

● More Competitive Pricing
● Delivery Time: 2-3 Weeks After Orders
● Free Samples Are Available
● Custom Design Support for Requirements
Product Drawing 1 Product Drawing 2
Technical Layout
Internal Schematic

Standard Corporate Policy:

● Achieve Highest Level Of Customer Satisfaction
● Continuous Improvements In Quality, Delivery And Service
● Company Standard Is Defect-Free Products And Services
Footer Line
Application 1 Application 2
? Frequently Asked Questions
1. What is the data transfer speed of this RJ45 connector?
This connector supports 10/100 BASE-T Ethernet speeds, making it ideal for standard industrial and commercial networking applications.
2. Does the 5-6610197-1 support AutoMDIX?
Yes, this model features AutoMDIX support, allowing it to automatically detect and configure the correct connection type.
3. What are the available plating options for the contact area?
The contact mating area can be plated with Gold in various thicknesses, including 6u", 15u", 30u", and 50u", depending on your durability requirements.
4. Can this connector operate in extreme temperatures?
Yes, it is designed to operate within a standard range of 0 to 70°C and an extended industrial range of -40 to 85°C.
5. Is the product compliant with environmental standards?
Absolutely. The connector is RoHS compliant (RoHS-5) and meets both UL and Reach certification standards.
6. What is the port configuration for this specific harmonica jack?
This is a 1X2 port configuration (2 ports in a single row) with a Tab-Up latch design for secure connectivity.
