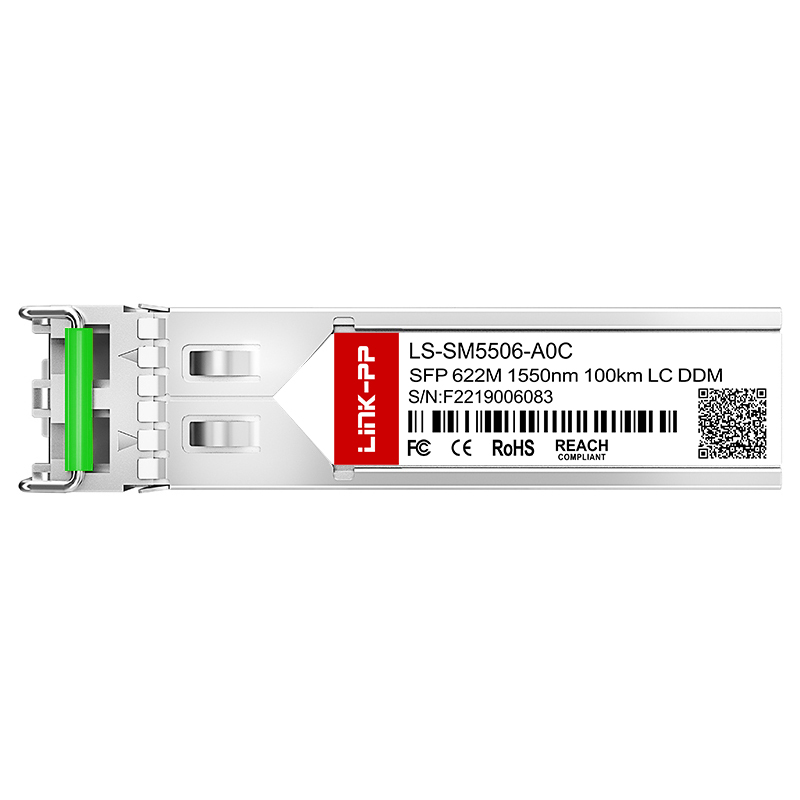

| Part No. | LS-SM5506-A0C |
| Form Factor | SFP |
| Max Data Rate | 622Mbps |
| Wavelength | 1550nm |
| Max Cable Distance | 100km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| EMC Supported | Yes |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM8506-S5C | 622Mbps | 850nm | 500m | Multi-mode | Yes |
| LS-SM3106-S5C | 622Mbps | 1310nm | 500m | Single Mode | Yes |
| LS-SM3106-02C | 622Mbps | 1310nm | 2km | Single Mode | Yes |
| LS-MM3106-02C | 622Mbps | 1310nm | 2km | Multi-mode | Yes |
| LS-SM3106-20C | 622Mbps | 1310nm | 20km | Single Mode | Yes |
| LS-SM3106-40C | 622Mbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM5506-80C | 622Mbps | 1550nm | 80km | Single Mode | Yes |
| LS-SM5506-A0C | 622Mbps | 1550nm | 100km | Single Mode | Yes |
| LS-SM5506-A2C | 622Mbps | 1550nm | 120km | Single Mode | Yes |
Providing end-to-end DWDM devices including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, and OTDR.
High-speed optical modules ranging from 10G to 800G, providing high-quality interconnection for data centers.
Solutions for Dark Fiber, WDM, Radio over Fiber, and Back-haul meeting 4G/5G system needs.
Total optical fiber access solutions including all-optical or optical-copper combined access products.
Our optical modules come with a 5-year warranty period, ensuring long-term reliability and performance for your network infrastructure.
Yes, samples are available for evaluation. You can test the quality and compatibility of the modules before proceeding with mass production orders.
Yes, Digital Diagnostic Monitoring (DDM/DOM) is supported, allowing real-time monitoring of parameters such as power, temperature, and voltage.
Stock items are ready to ship immediately. For mass production or custom orders, the delivery time typically ranges from 15 to 30 days.
All our optical modules are MSA (Multi-Source Agreement) compliant and certified by CE, UL, RoHS, and REACH to ensure global compatibility.
Yes, we accept OEM/ODM orders to meet specific technical requirements. Please provide your detailed specifications for a technical discussion.
