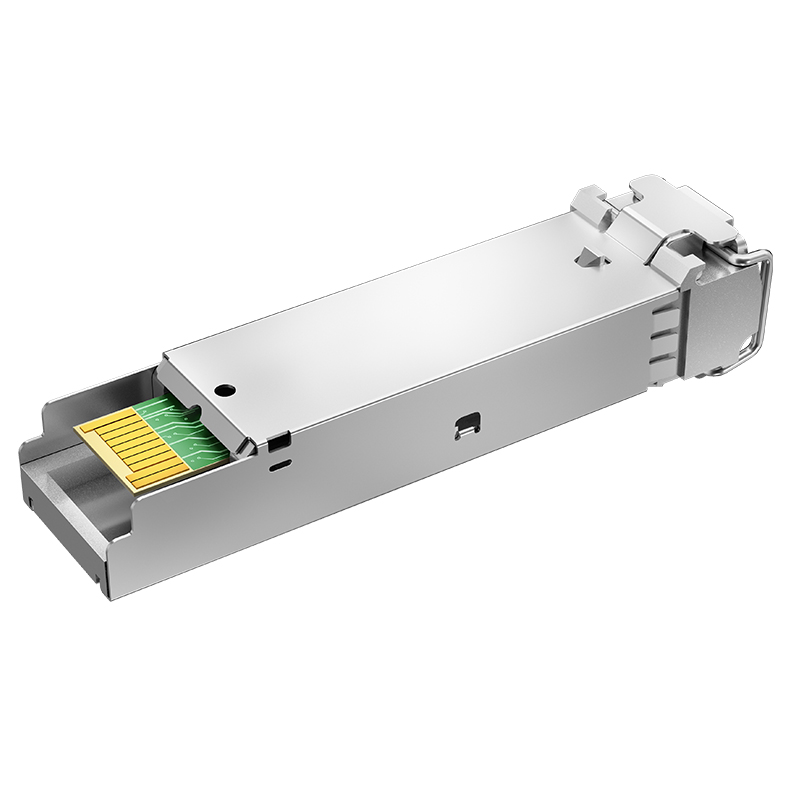

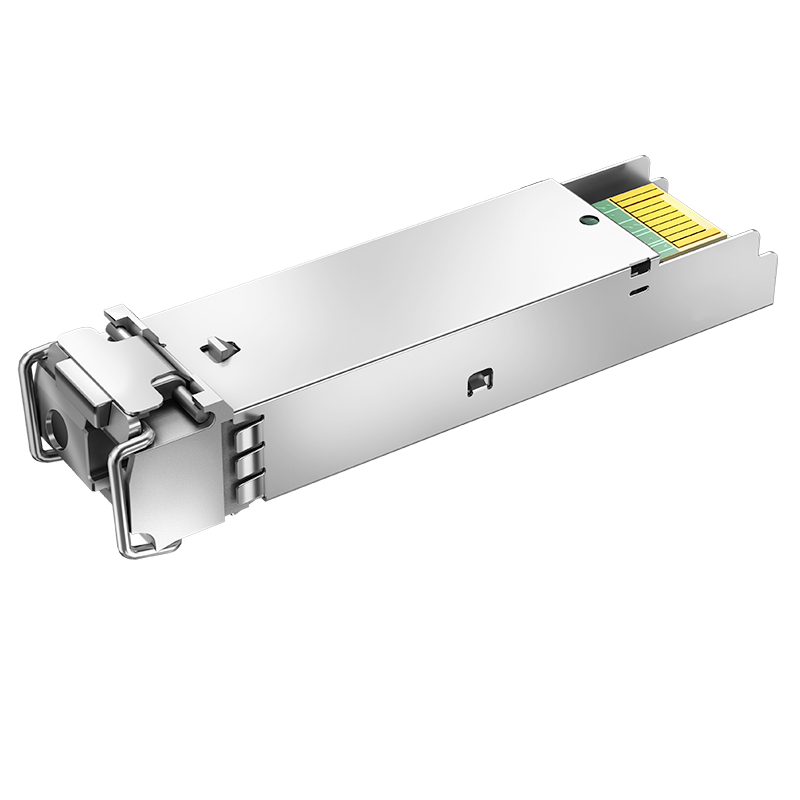

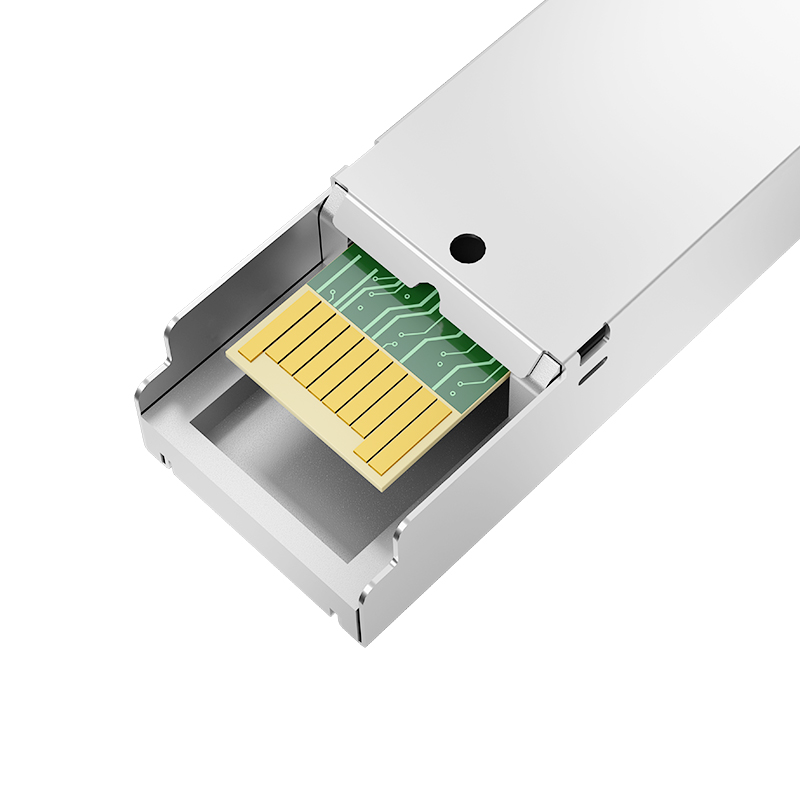

1550nm-TX/1310nm-RX Bidirectional SMF SFP 155M Bidi 10km LC Optic Transceiver Module

1 / 5

1550nm-TX/1310nm-RX Bidirectional SMF SFP 155M Bidi 10km LC Optic Transceiver Module

Send Inquiry

Product Description

Product Overview

1550nm-TX/1310nm-RX Bidirectional SMF SFP 155M Bidi 10km LC Optic Transceiver Module

Form Factor	SFP
Max Data Rate	155Mbps
Wavelength	1550nm-TX/1310nm-RX
Max Cable Distance	10km
Connector	Simplex LC
Media	SMF
Transmitter Type	FP
Receiver Type	PIN
TX Power	-14 ~ -8dBm
Receiver Sensitivity	< -30dBm
DDM/DOM	Supported
Protocols	Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
Warranty	5 Years

Professional Connectivity Solutions

Drawing on over 10 years of experience in chips and modules, we integrate fast speeds, compact size, power efficiency, and high performance into every module. Our full series of optical modules supports fixed access, wireless access, carrier Ethernet, WDM, and data communication networks.

Support Full Range Of 155M BiDi SFP

Part Number	Data Rate	Wavelength	Distance	Components	DDM
LS-BL315501-10C	155Mbps	1310nm-TX/1550nm-RX	10km	FP/PIN	Yes

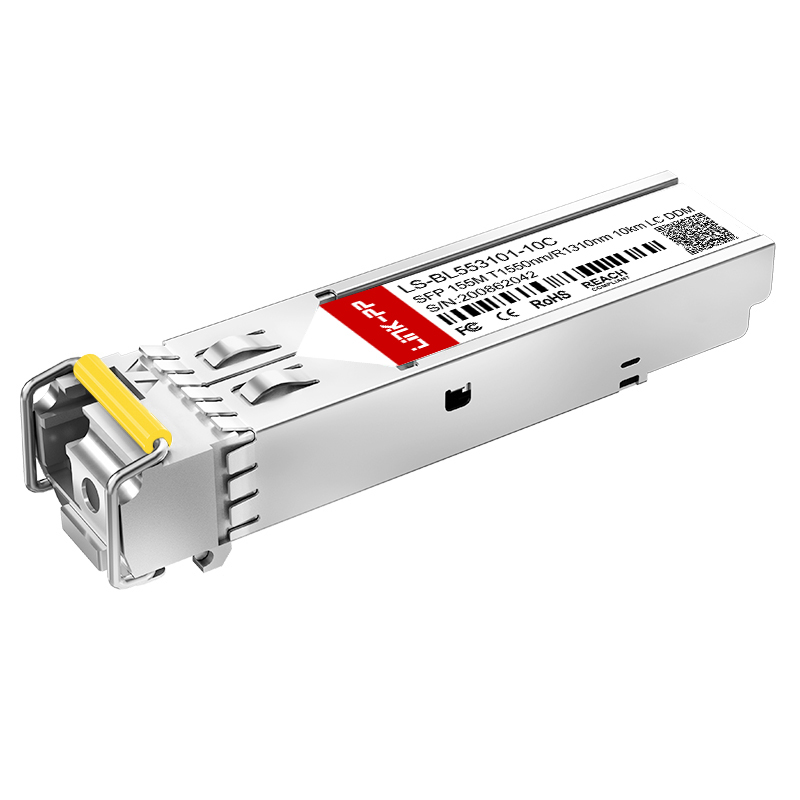

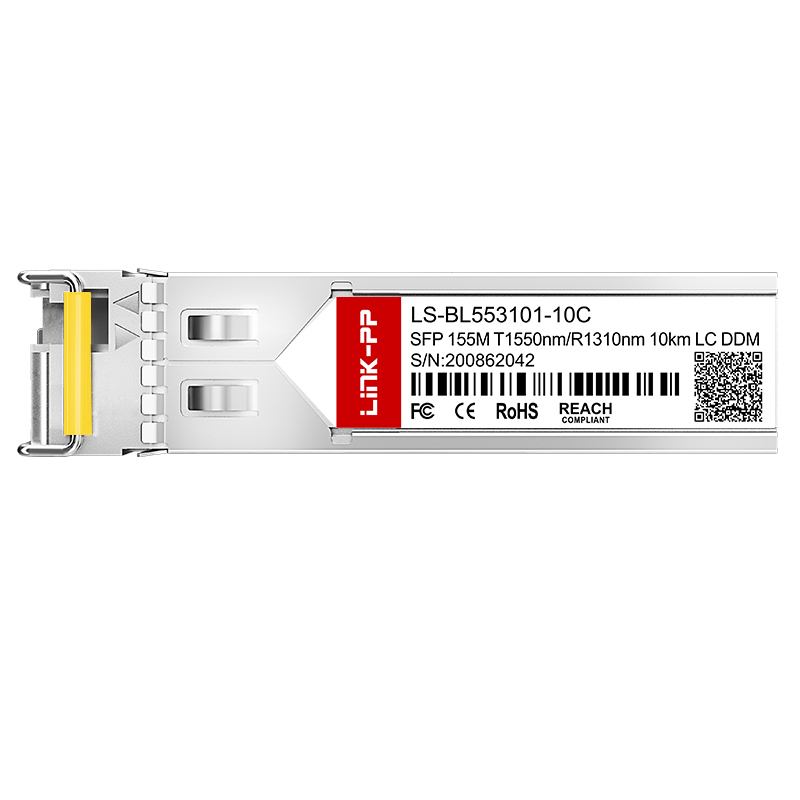

LS-BL553101-10C	155Mbps	1550nm-TX/1310nm-RX	10km	FP/PIN	Yes
LS-BL315501-15C	155Mbps	1310nm-TX/1550nm-RX	15km	FP/PIN	Yes
LS-BL553101-15C	155Mbps	1550nm-TX/1310nm-RX	15km	FP/PIN	Yes
LS-BL315501-20C	155Mbps	1310nm-TX/1550nm-RX	20km	FP/PIN	Yes
LS-BL553101-20C	155Mbps	1550nm-TX/1310nm-RX	20km	FP/PIN	Yes
LS-BL315501-40C	155Mbps	1310nm-TX/1550nm-RX	40km	FP/PIN	Yes
LS-BL553101-40C	155Mbps	1550nm-TX/1310nm-RX	40km	FP/PIN	Yes

Network Applications

🚀 Optical Transport Networks

Comprehensive DWDM solutions from active modules to passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, and OTDR.

☁️ Cloud and Enterprise

High-speed interconnect solutions ranging from 10G to 800G, designed to meet mass data transmission demands in modern data centers.

📡 Wireless Systems

High-reliability products for 4G/5G systems including WDM, Radio over Fiber, and back-haul solutions using mature laser technology.

🏠 FTTx Access

Total optical fiber access solutions for global communication networks, covering all-optical and hybrid copper-optical access.

Industry Excellence

Why Choose Our Solutions

Certified by ISO9001:2000, RoHS, REACH, CE, and UL, our production facilities utilize advanced manufacturing and testing equipment. With an abundant monthly production capacity, we ensure short delivery times and high-quality optical interconnect solutions for cloud computing and ultra-broadband networks.

Frequently Asked Questions

What is the advantage of using a BiDi SFP module?

BiDi (Bidirectional) SFP modules allow for the transmission and reception of data over a single strand of fiber by using two different wavelengths. This effectively doubles your fiber capacity without laying new cables.

Are these modules compatible with my existing network equipment?

Yes, our modules are MSA (Multi-Source Agreement) compliant, ensuring compatibility with a wide range of standard networking hardware and switches.

What does DDM/DOM support mean?

Digital Diagnostic Monitoring (DDM) allows users to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, and transceiver supply voltage.

Can I request samples for testing?

Yes, samples are available for quality testing and verification before moving to mass production. Please contact our support team for details.

What kind of warranty is provided?

We provide a comprehensive 5-year warranty on our optical transceiver modules, reflecting our confidence in their long-term reliability and performance.

What is the typical lead time for large orders?

While stock items are ready to ship immediately, mass production orders typically take 15 to 30 days depending on the volume and specifications.
