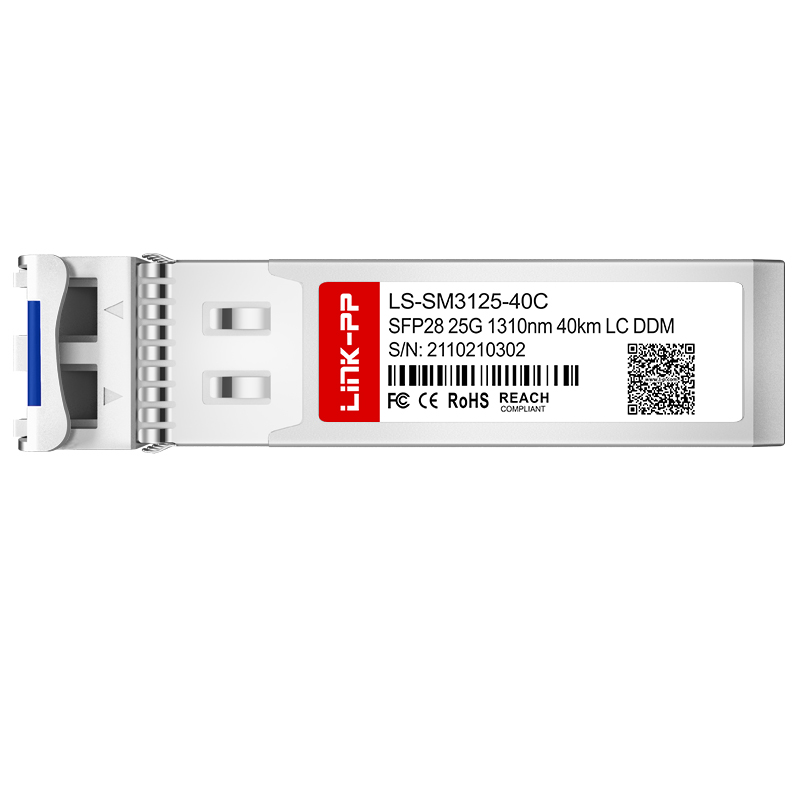

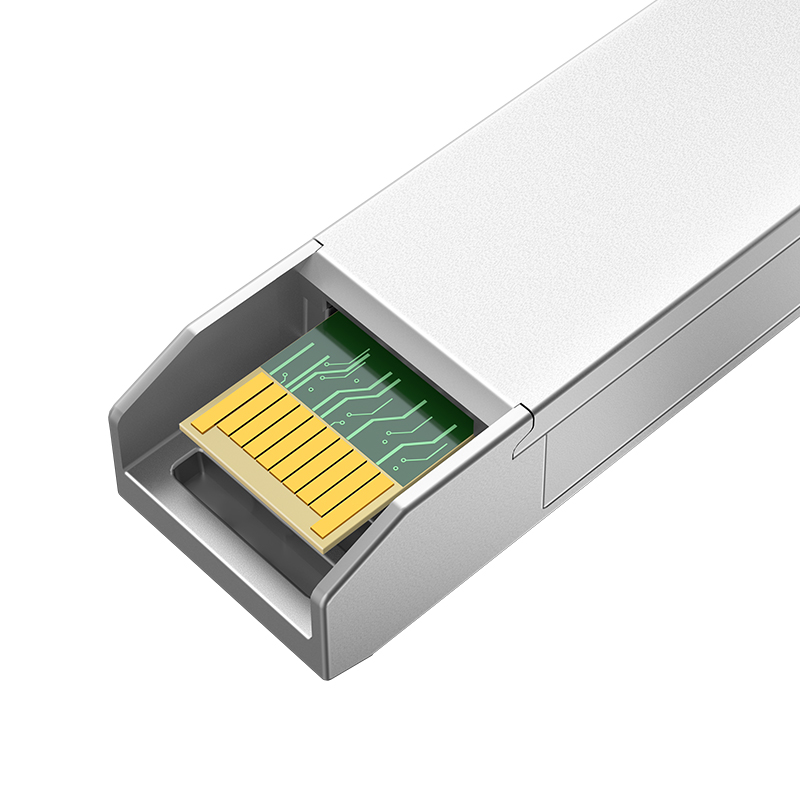

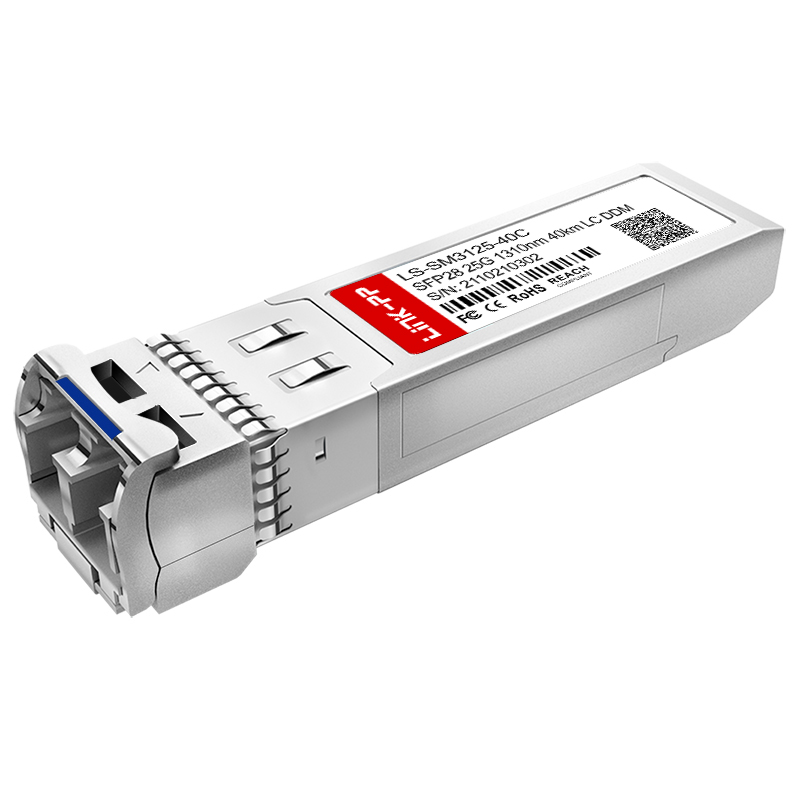

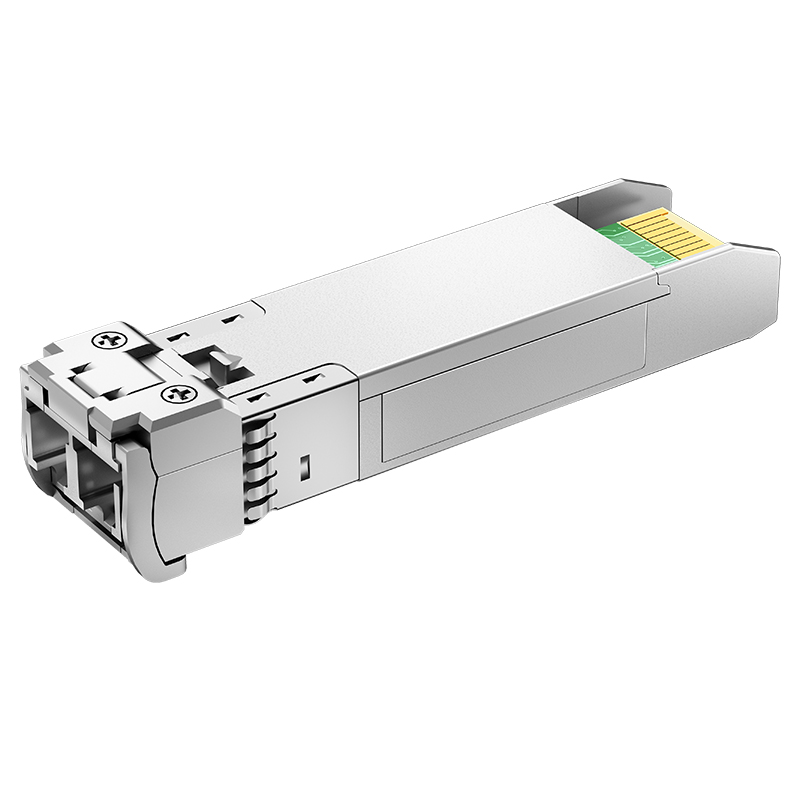

This high-performance SFP28 transceiver is designed for 25Gbps optical data communications, supporting links up to 40km over single-mode fiber.
| Item | 25G SFP28 Transceiver |
| Part No. | LS-SM3125-40C |
| Form Factor | SFP28 |
| Max Data Rate | 25Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 40km |
| Media | SMF |
| Connector | Duplex LC |
| Optical Component | EML/APD |
| TX Power | 0~6dBm |
| Receiver Sensitivity | <-19dBm |
| Power Consumption | ≤2.2W |
| DDM/DOM | Supported |
| Temperature Range | 0°C to 70°C / -40°C to 85°C |
| Protocols | MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |
Drawing on over 10 years of experience in chips and modules, we integrate high speeds, compact sizes, and power efficiency into every optical module. We provide a full series of modules for fixed access, wireless, carrier Ethernet, and WDM networks.
End-to-end DWDM solutions including active modules and passive devices like EDFA, Mux/Demux, and ROADM.
High-speed optical modules ranging from 10G to 800G for mass data transmission in modern data centers.
Reliable 4G/5G solutions including WDM and Radio over Fiber for high-speed front-haul and back-haul.
Total optical fiber access solutions covering all-optical and copper combined access needs.
Related SFP Cage Solutions
As a specialized manufacturer of magnetic telecom and networking components, we operate under ISO9001:2000, ROSH, REACH, CE, and UL certifications. Our manufacturing facilities utilize advanced imported testing equipment to ensure peak performance.
