Providing high-speed, small-size, power-saving, and high-performance optical interconnection solutions.

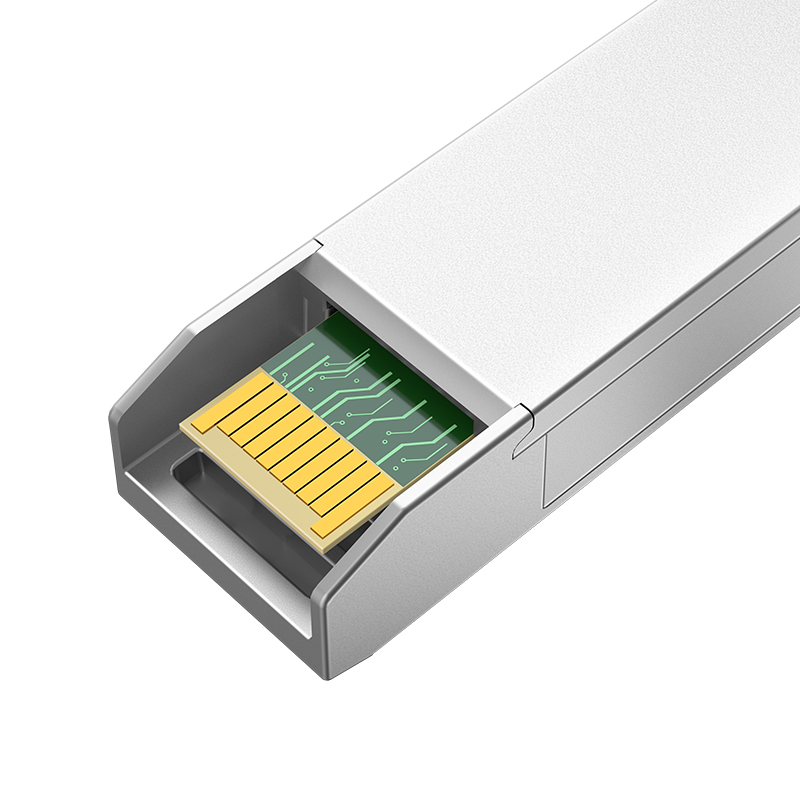

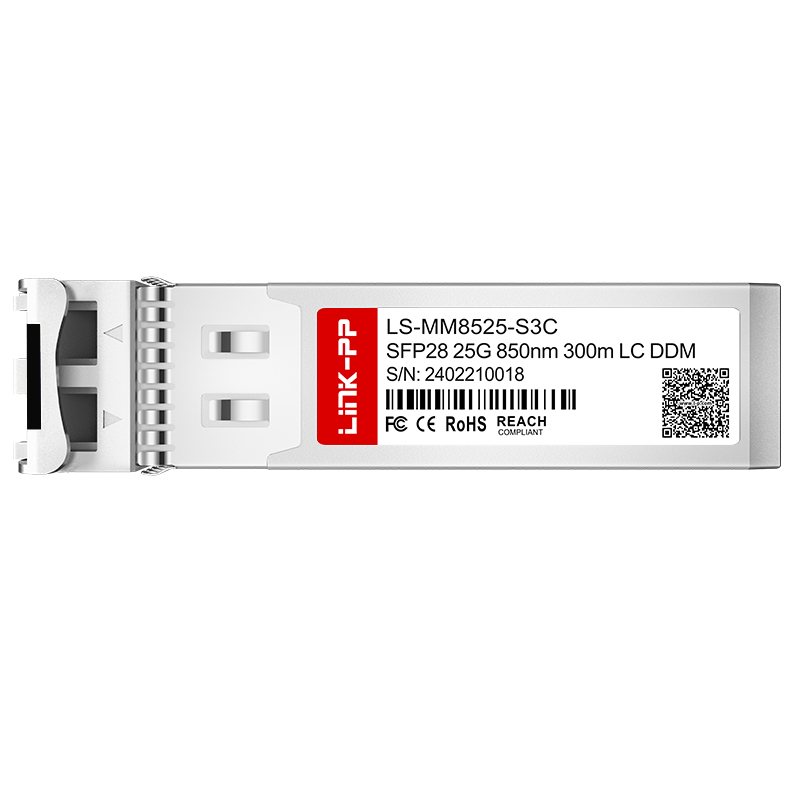

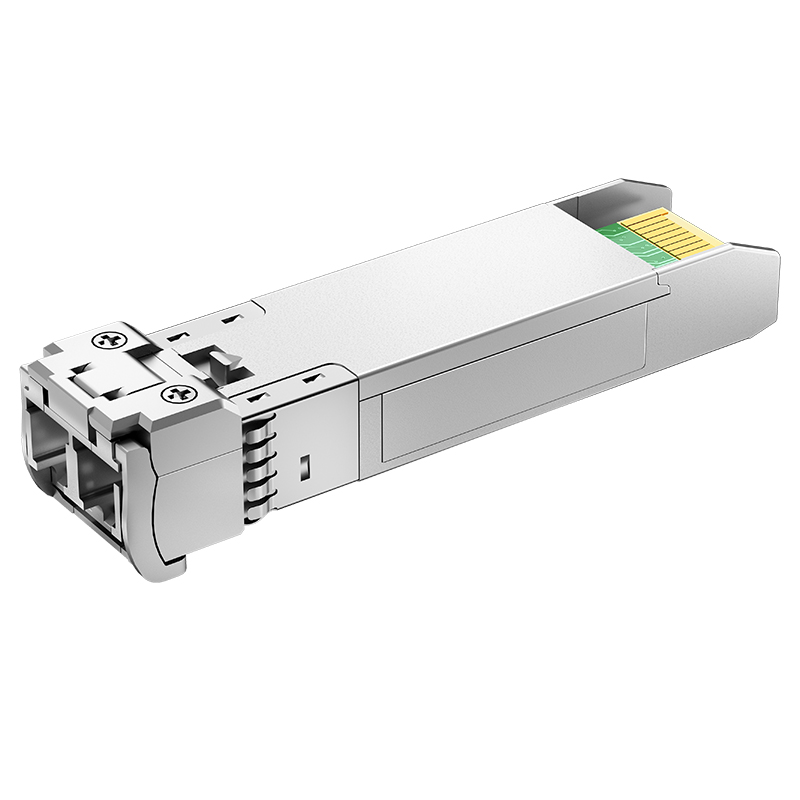

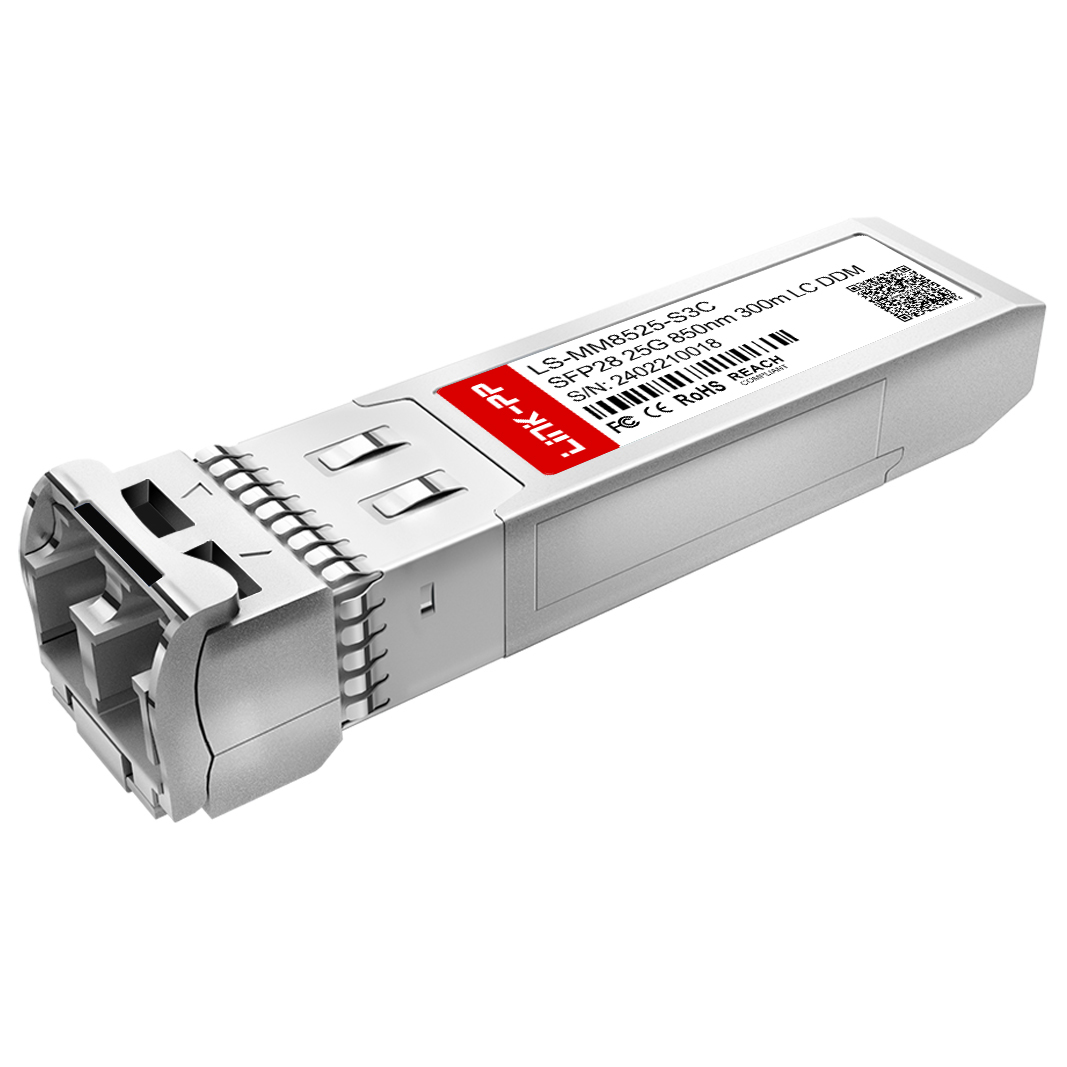

| Item | 25G SFP28 Transceiver |
| Part No. | LS-MM8525-S3C |
| Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 25Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 300m |
| Media | MMF |
| Connector | Duplex LC |
| Optical Component | VCSEL/PIN |
| TX Power | -6.4~2.4dBm |
| Receiver Sensitivity | <-6dBm |
| Receiver Overload | 2.4dBm |
| Power Consumption | ≤1W |
| Extinction Ratio | 2dB |
| DDM/DOM | Supported |
| Temperature Range | 0°C to 70°C / -40°C to 85°C |
| Protocols | SFP28 MSA Compliant, SFF-8472, SFF-8024, SFF-8431, SFF-8432 |
| Warranty | 5 Years |
| Sample | Available |
Drawing on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
End-to-end DWDM devices including active modules and optical passive devices - optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
Meeting mass data transmission demands in data centers with high-speed optical modules ranging from 10G to 800G, providing high-quality interconnection solutions.
High reliability products with mature lasers and mainstream chip solutions. Solutions include Dark Fiber, WDM, Radio over Fiber, High Speed, and Back-haul for 4G/5G systems.
Total optical fiber access solutions covering all-optical or combined optical-copper access for global communication network constructors.
Ensuring normal operation of communication lines with O&M solutions integrating optical line protection (OLP) and monitoring systems (OLM).
A specialized manufacturer of magnetic telecom and networking components, certified by ISO9001, RoHS, REACH, CE, and UL. We own advanced manufacturing facilities and imported test equipment. Established in 1997, we provide a full series of optical modules for fixed access, wireless, and data communication networks globally, utilizing the latest optoelectronics technologies.
