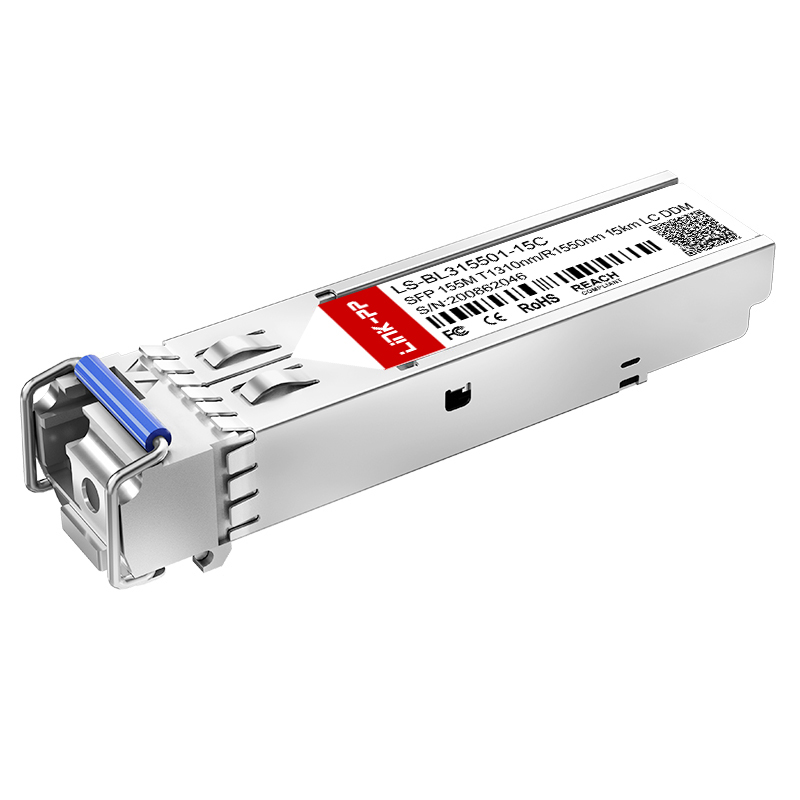

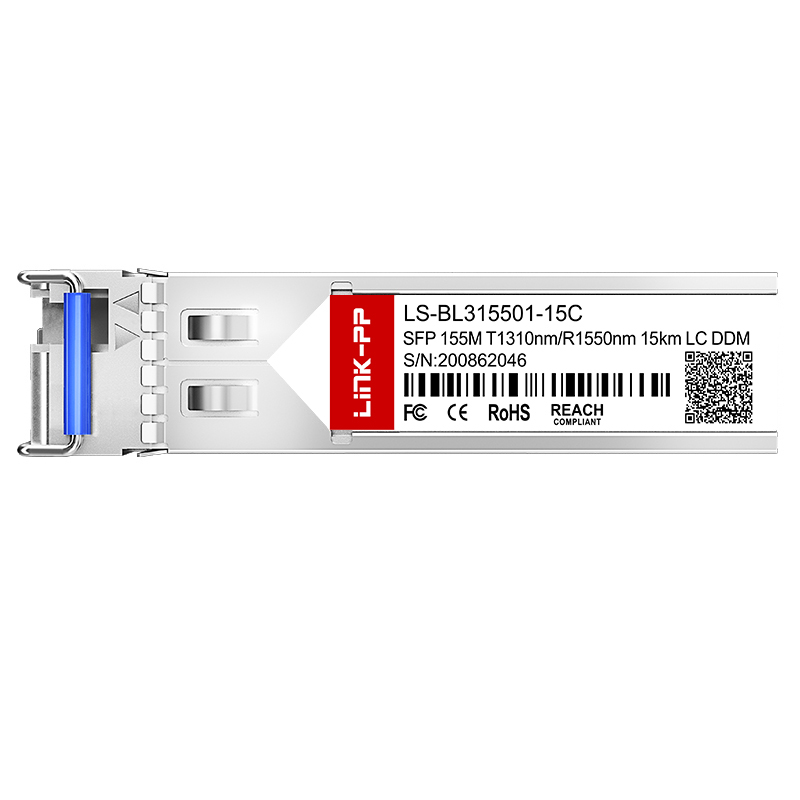

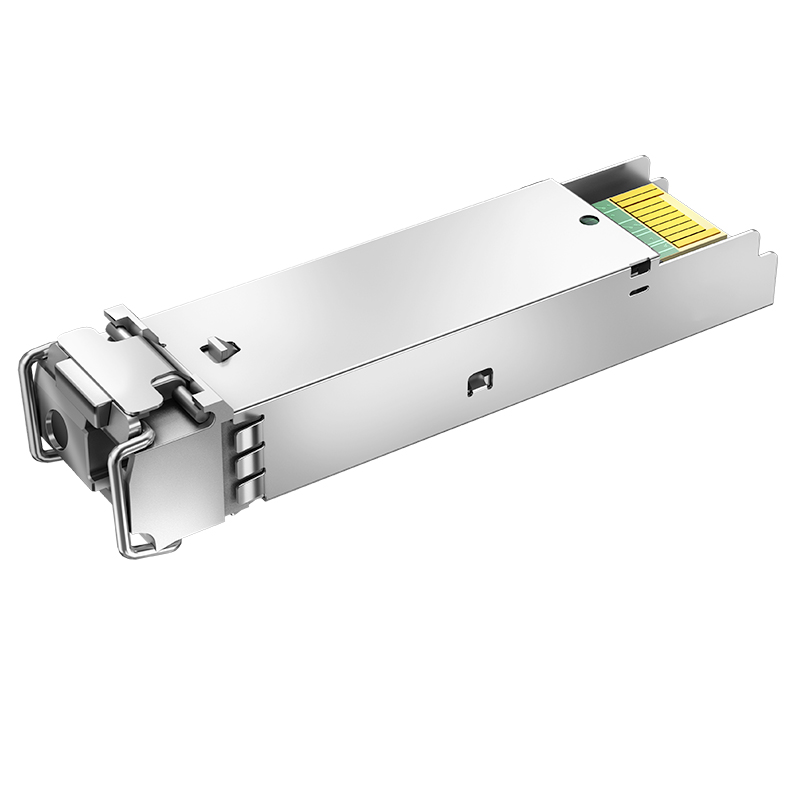

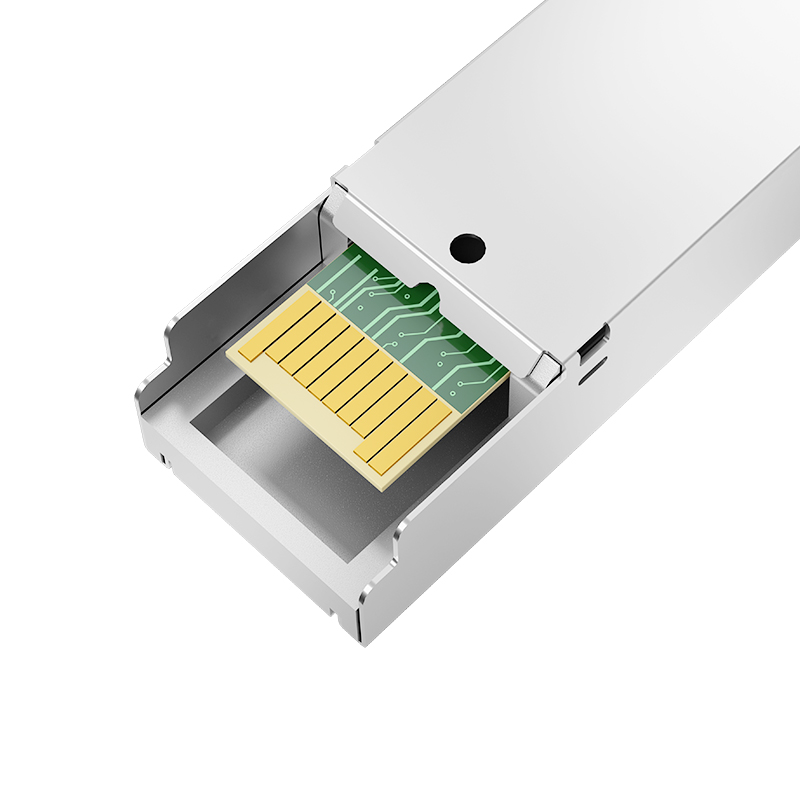

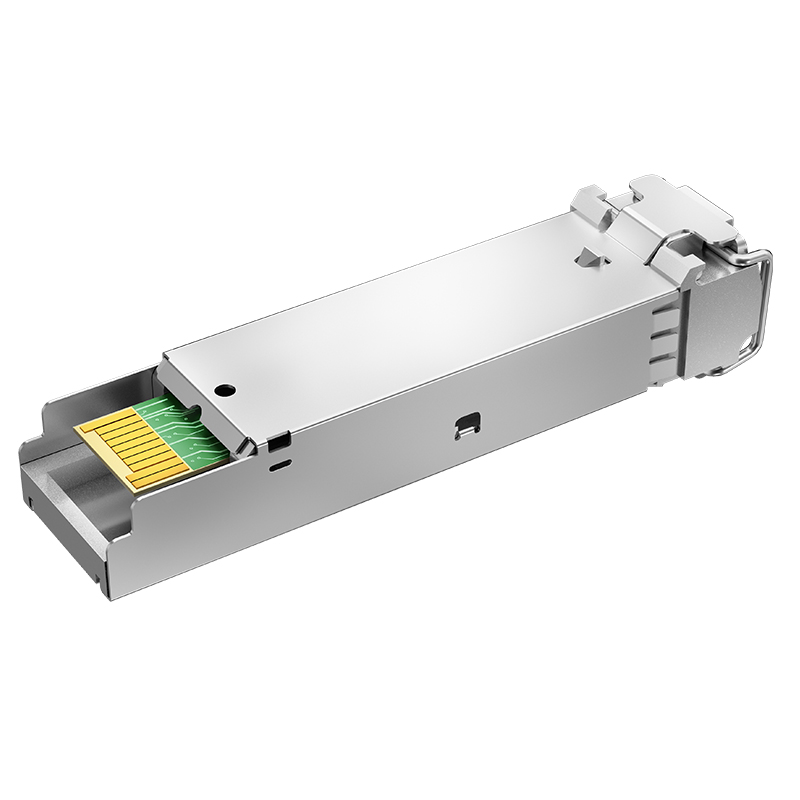

| Form Factor | SFP |
| Max Data Rate | 155Mbps |
| Wavelength | 1310nm-TX/1550nm-RX |
| Max Cable Distance | 15km |
| Connector | Simplex LC |
| Media | SMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -15 ~ -8dBm |
| Receiver Sensitivity | < -30dBm |
| DDM/DOM | Supported |
| Protocols | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
We provide end-to-end DWDM devices including active modules and optical passive devices like amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, and OTDR.
To meet high-speed data transmission demands in data centers, our high-speed optical modules range from 10G to 800G, providing high-quality interconnection solutions.
High reliability products with mature laser and mainstream chip solutions for 4G/5G systems, covering WDM, Radio over Fiber, and Back-haul scenarios.
Total optical fiber access solutions covered from all-optical or optical copper combined access products for global communication network constructers.
| Part Number | Data Rate | Wavelength | Distance | Components | DDM |
|---|---|---|---|---|---|
| LS-BL315501-10C | 155Mbps | 1310T/1550R | 10km | FP/PIN | Yes |
| LS-BL553101-10C | 155Mbps | 1550T/1310R | 10km | FP/PIN | Yes |
| LS-BL315501-15C | 155Mbps | 1310T/1550R | 15km | FP/PIN | Yes |
| LS-BL553101-15C | 155Mbps | 1550T/1310R | 15km | FP/PIN | Yes |
| LS-BL315501-40C | 155Mbps | 1310T/1550R | 40km | FP/PIN | Yes |
| LS-BL315501-80C | 155Mbps | 1310T/1550R | 80km | FP/PIN | Yes |
As a specialized manufacturer of magnetic telecom and network components, we are certified by ISO9001:2000, ROSH, REACH, CE, and UL. Established in 1997, we operate with advanced manufacturing and testing equipment. With an abundant production capacity of 3000K per month, we ensure timely delivery of high-speed optical interconnect solutions for cloud computing and ultra-broadband networks.
