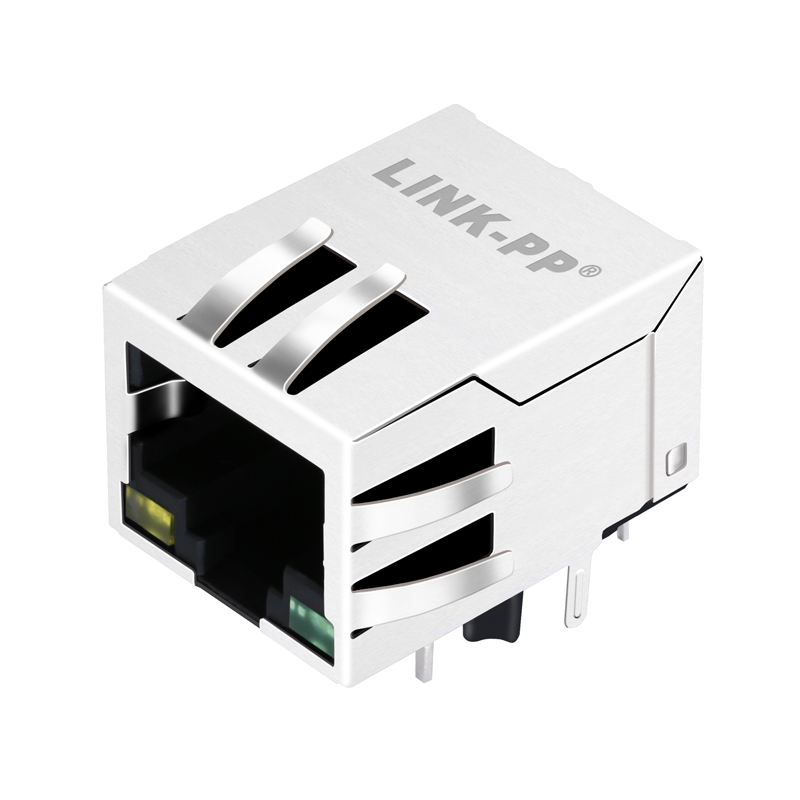

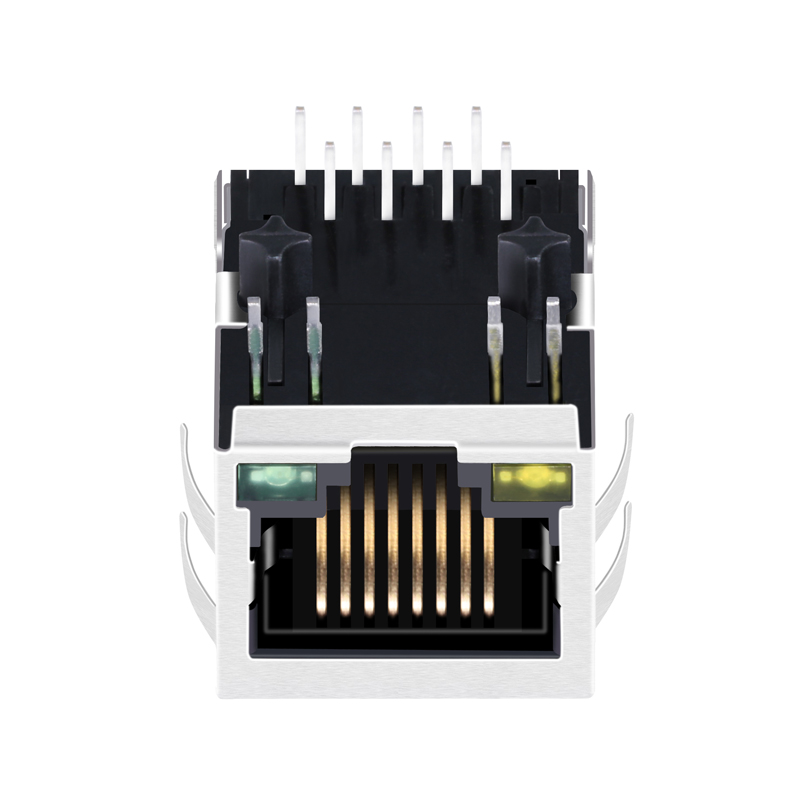

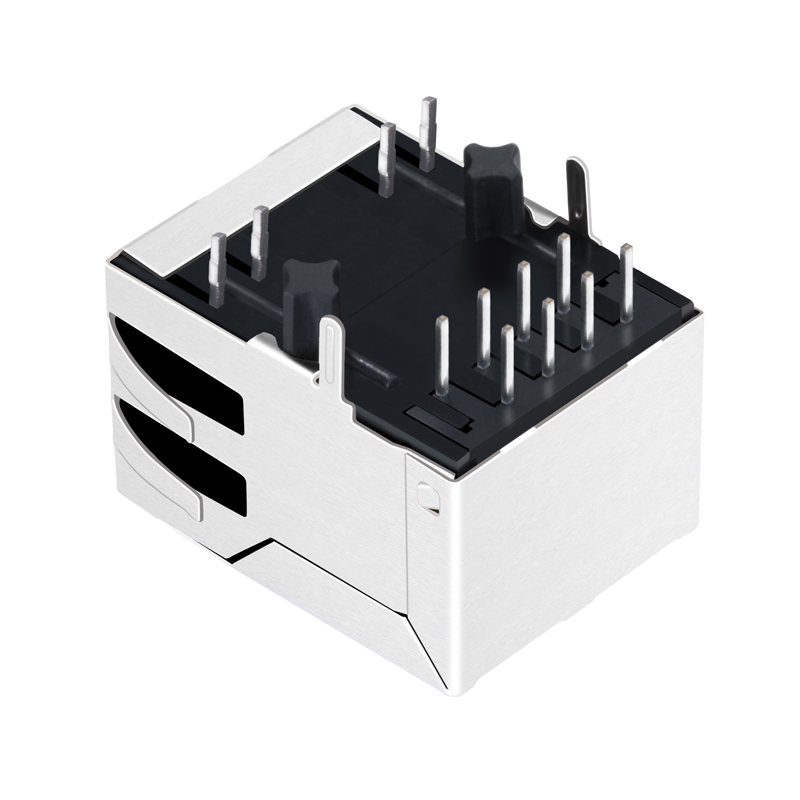

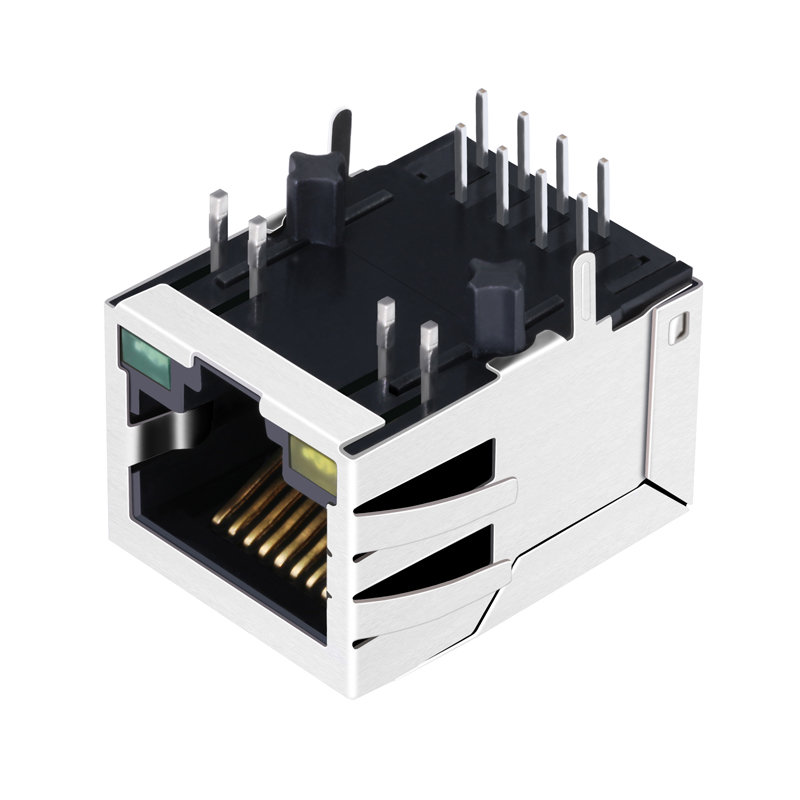

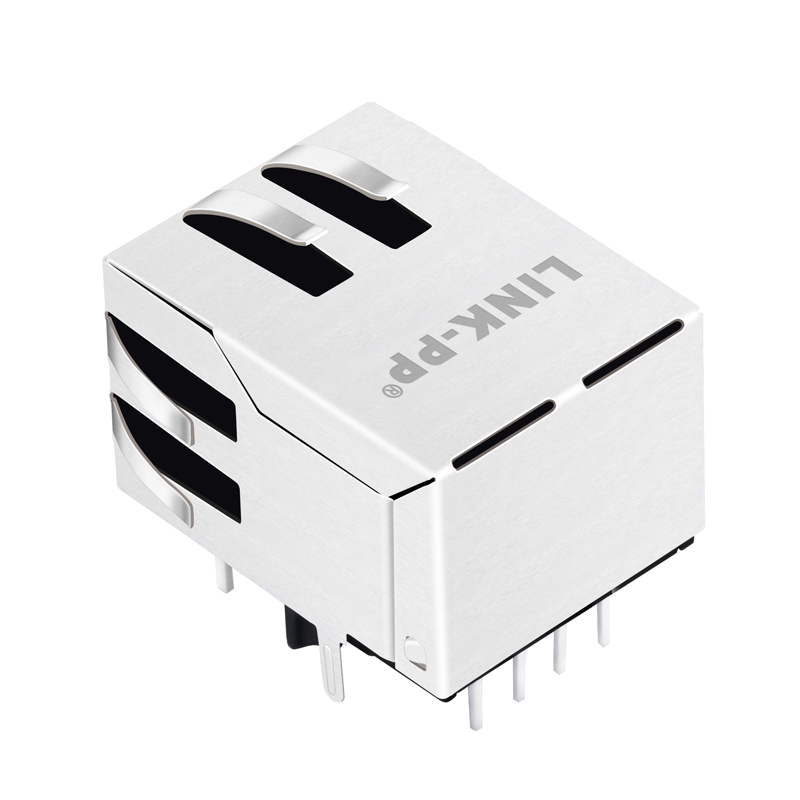

Female RJ45 for Internet Modular Plug TIC-L003-11

1 / 5

Female RJ45 for Internet Modular Plug TIC-L003-11

Send Inquiry

Product Description

Female RJ45 for Internet Modular Plug TIC-L003-11

Technical Specifications

Part Number	TIC-L003-11
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	WithOUT LEDS
Latch	DOWN
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 With LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	With OR WithOUT
Speed	10/100 BASE-T
Temperature	0 TO 70°C/-40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification

ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

100% Quality Guarantee

Manufactured Under Strict Controls
100% Tested (Not Just Batch Tested)
Experienced OEM Manufacturing
Successful Customer references: Samsung, Cisco, Siemens, Intel...
Quality Guarantee: 6 Years

Competitive Price & Service

Competitive Price in the Market
Delivery Time: 2-3 Weeks After Orders
Free Samples Are Available
Custom Designs for Requirements
Optimized Worldwide Shipping Costs

Product Gallery

Preferred Supplier for Industry Leaders like Samsung, Cisco, Siemens & Intel

FAQ

1. What is the transmission speed of the TIC-L003-11 connector? The TIC-L003-11 supports 10/100 BASE-T speeds, making it suitable for standard Ethernet applications.

2. Does this RJ45 connector include integrated LEDs? No, this specific model (TIC-L003-11) is designed without integrated LEDs.

3. What is the operating temperature range for this modular plug? It is designed to operate reliably within a standard range of 0 to 70°C, with extended options available for -40 to 85°C.

4. Is the product compliant with environmental standards? Yes, it is RoHS compliant and meets UL and Reach certification standards.

5. What type of plating is used on the contact mating area? The contacts feature gold plating available in 6u", 15u", or 30u" thicknesses to ensure high conductivity and durability.

6. What is the mounting orientation on the PCB? This is a side entry (right angle) connector designed for THT (Through-Hole Technology) soldering.
