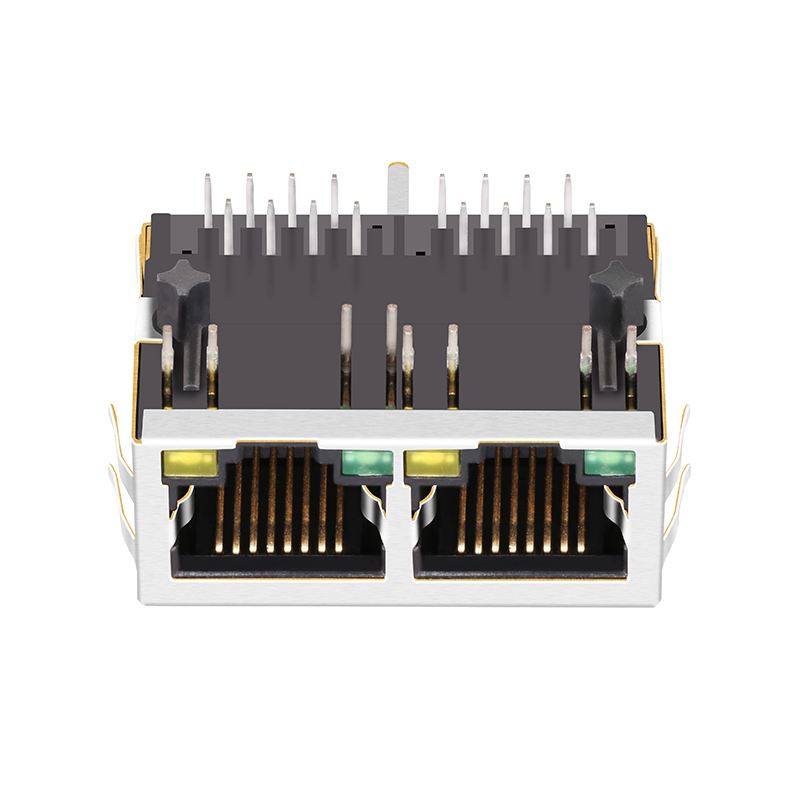

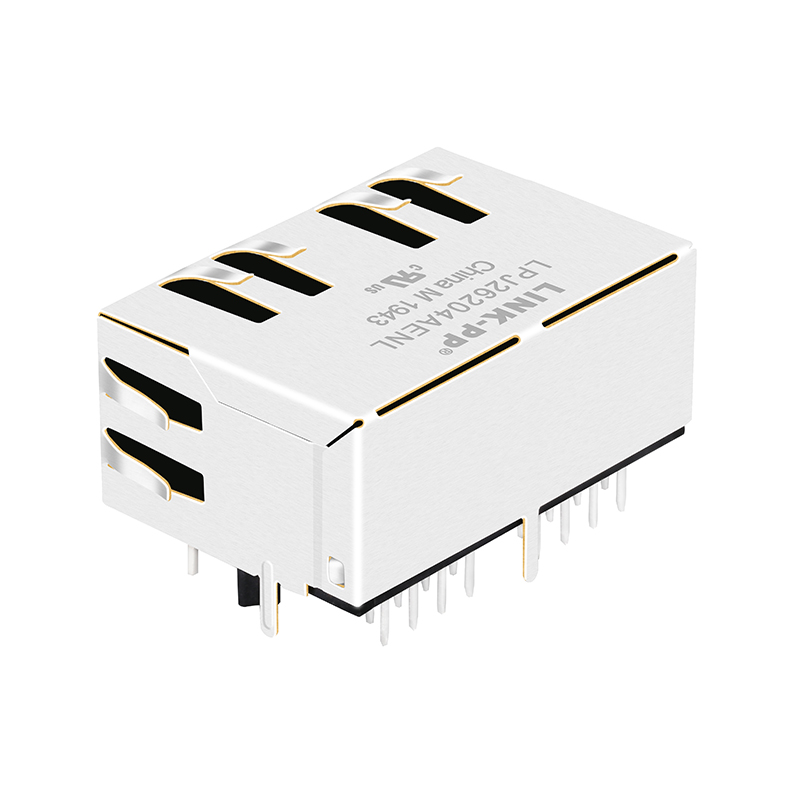

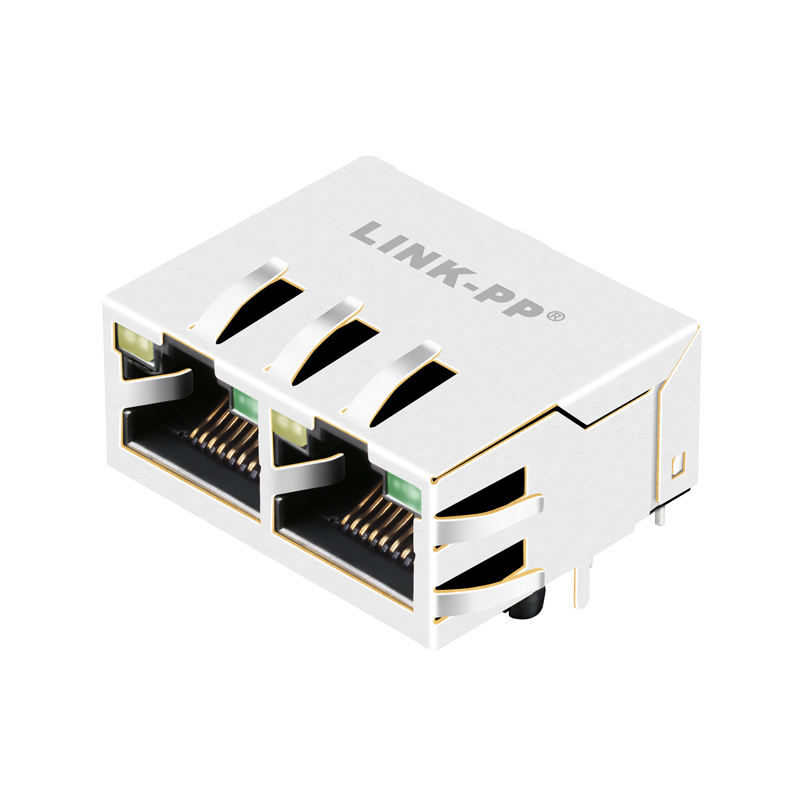

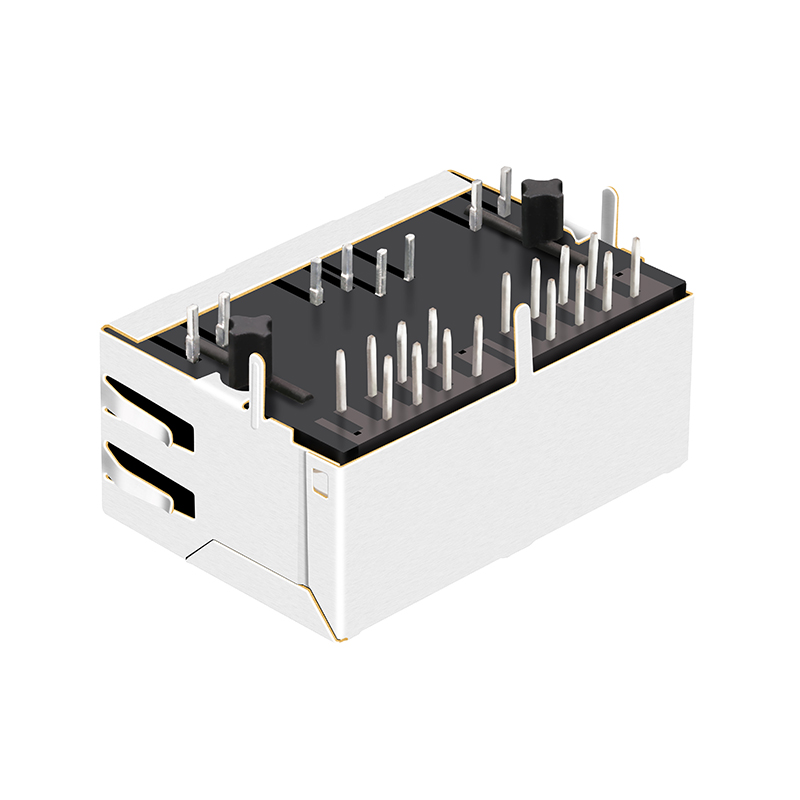

Industrial Tab up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors

Product Description

RJ45 Series Display

Industrial Tab Up 1000 Base-t Magnetic Jack Ethernet 1x2 Ports Female RJ45 Connectors

Products Description
Item Specifications
Part NumberLPJG25465ADNL
StatusActive
Connector TypeJack
Positions/Contacts10p8c (RJ45, Ethernet)
ApplicationEthernet (Non-PoE)
Number of Ports1x2 Port
Speed10/100/1000 Base-T
Latch DirectionUp
Cores per Port8
Orientation90° Angle (Right)
PCB Mount AngleSide Entry
Shield EMI TabsWith
LED OptionYellow/Green
PCB MaterialFR4
Retaining PostT POST
Temperature Range-40℃ TO 85℃
Bst CircuitYes
AutoMDIXYes
Contact PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Product Dimensional Drawing
RJ45 Connector Variety Schematic Diagram Internal Structure
Application 1 Application 2 Factory Overview
Production Line Testing Facility
About the Manufacturer
Professional designer and manufacturer in magnetic telecom and networking components since 1997.
Global supplier for OEMs, contract manufacturers, and CEMs, serving over 10,000+ customers in 200 countries.
Equipped with multi-warehouse systems and extensive inventory for Ethernet RJ45 connectors and LAN transformers.
Workshop Warehouse Certifications
Frequently Asked Questions
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, and SFP modules.
2. Can I get a sample before mass production?
Yes, we provide free samples to test quality. The customer is responsible for the shipping fees.
3. What is the typical delivery time?
Stock items are ready to ship immediately. For mass production, the lead time is typically 15-30 days.
4. What after-sales service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
5. Do you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us for a detailed discussion on your requirements.
6. What is your manufacturing advantage?
With over 19 years of production experience, we have established long-term partnerships with major global technology leaders.
