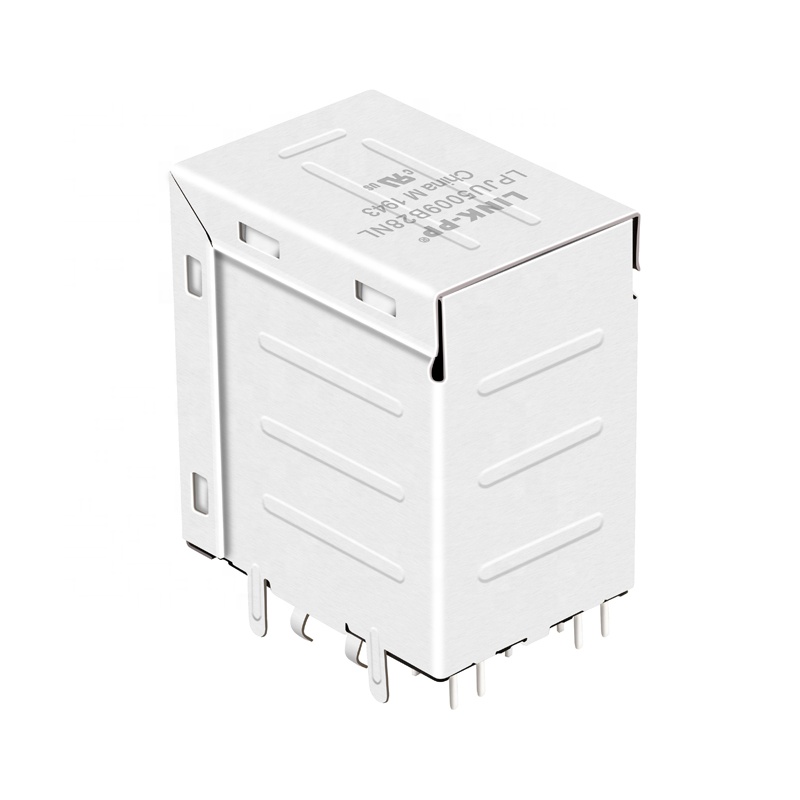

45F-10101DYD2NL JW0-0009NL C893-1AX1-E1 Magnetic RJ45 Connector Jack with Dual USB
Products Description
| Item | RJ45 Female Connector |
| Part Number | LPJU5009B28NL |
| Alternative Part Number | C893-1AX1-E1 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | Single Port With Dual USB |
| Speed | 10/100 Base-T |
| Latch | Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |

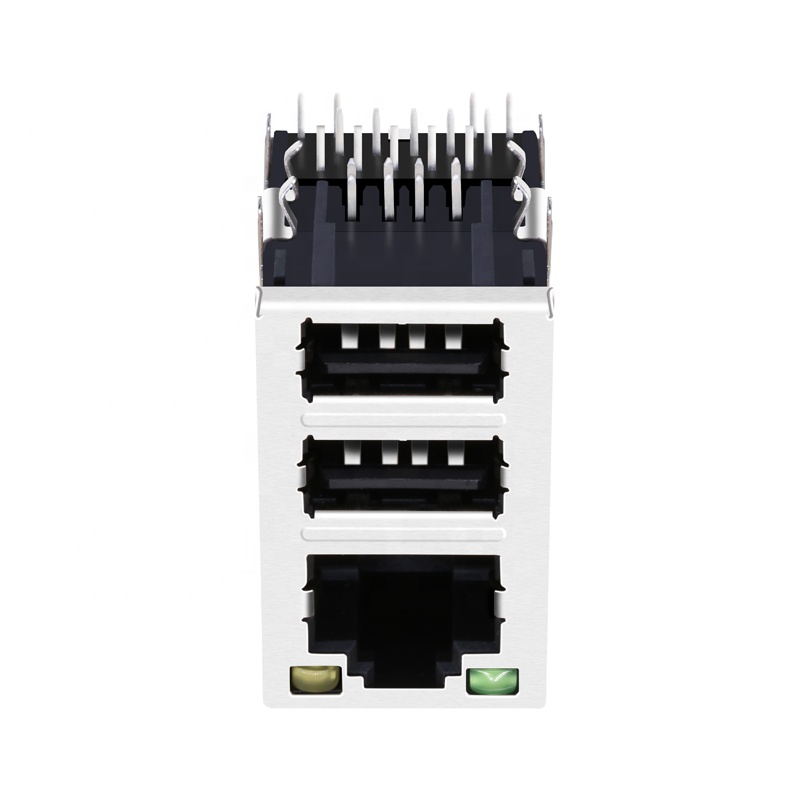

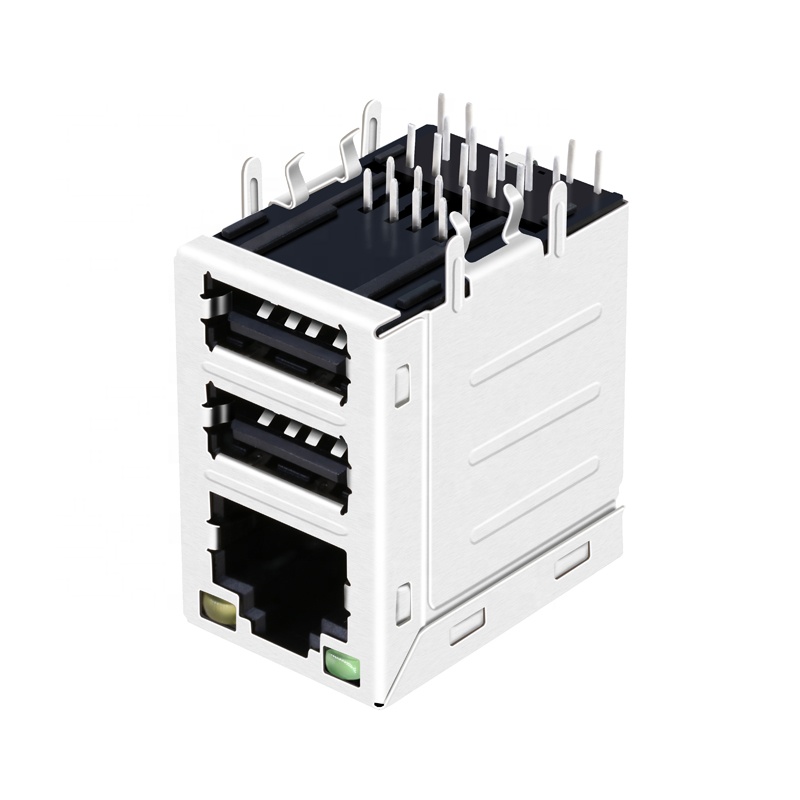

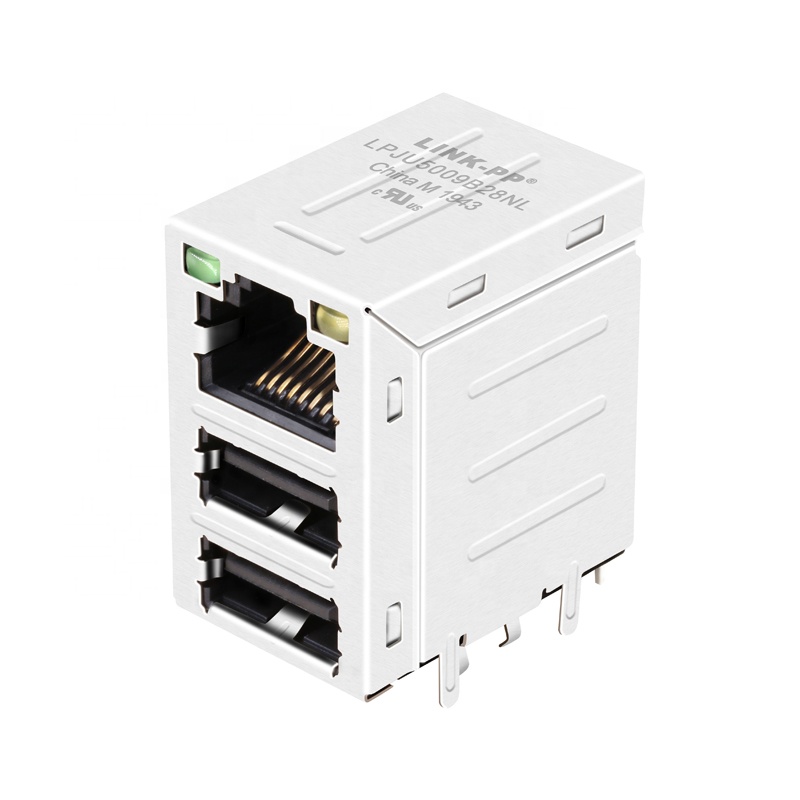

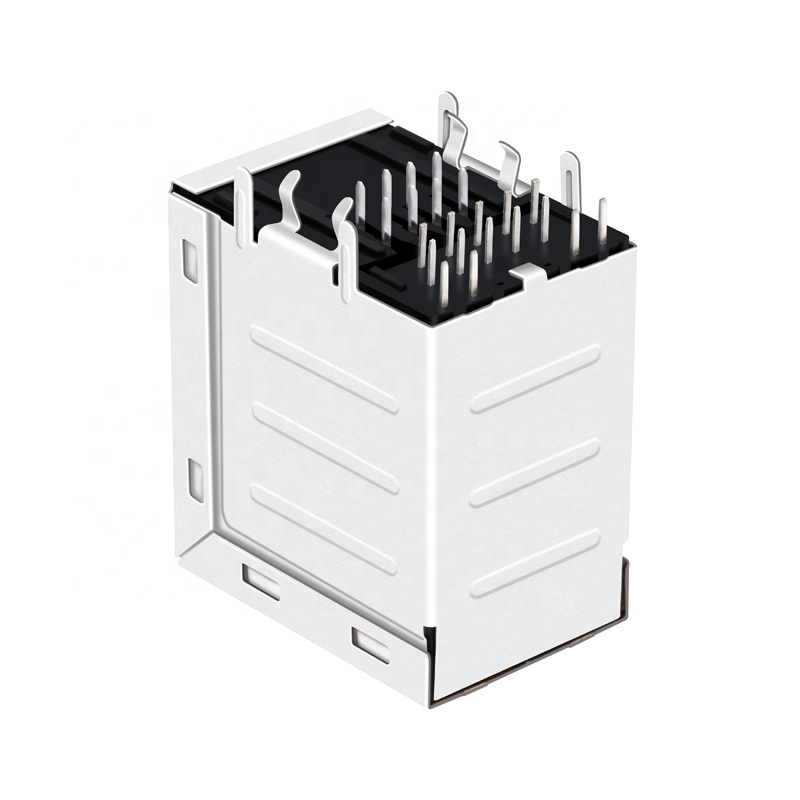

Product Gallery
Why Choose Us
Company Profile
The manufacturer is a specialized producer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Equipped with advanced manufacturing facilities and testing equipment, the company was established in 1997 and currently employs approximately 2000 staff. With a robust productive capacity of 3000K per month, we ensure timely delivery and professional complete solutions for magnetic components along with strong technical support.
Main products include 10/100/1000M LAN pulse transformers and filters, RJ45 connectors with integrated magnetics, T1/E1, T3/DS3/E3/STS-1 interface line transformers, and ISDN, HDSL, ADSL, and VDSL splitters. These products are widely utilized in networking and communication equipment such as HUBs, PC cards, Switches, Routers, IP Phones, and xDSL modems. Our engineering expertise is dedicated to developing optimal solutions for unique customer requirements.
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees are typically covered by the customer.
What is your delivery time?
Items in stock are ready to ship immediately; mass production typically requires 15-30 days.
What after-sales service do you provide?
We offer a one-year guarantee period and 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries to discuss specific requirements and custom solutions.
What is your core advantage?
With 19 years of production experience, we maintain long-term partnerships with leading global technology firms.
