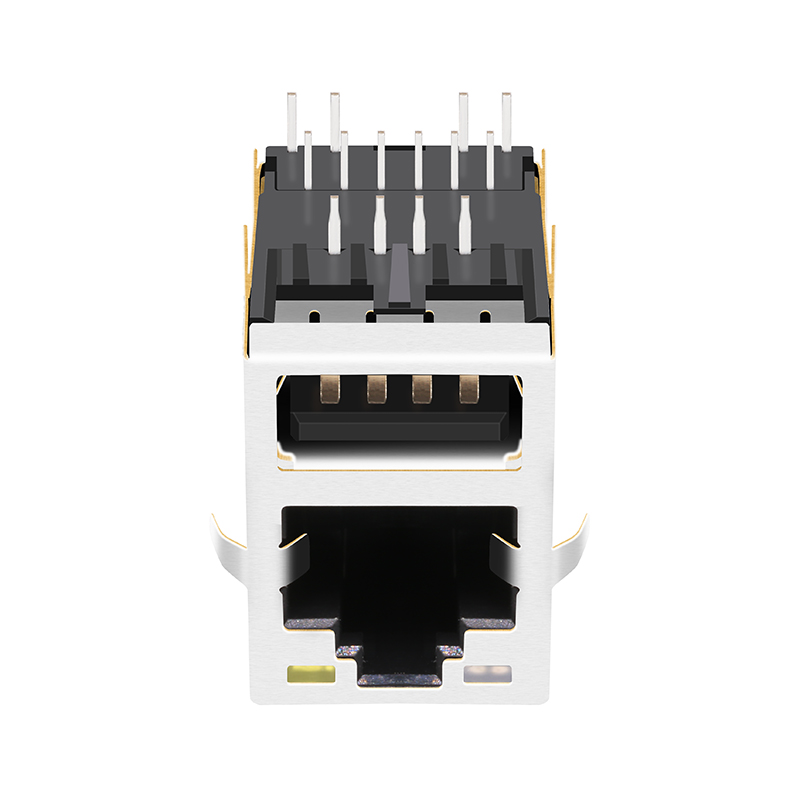

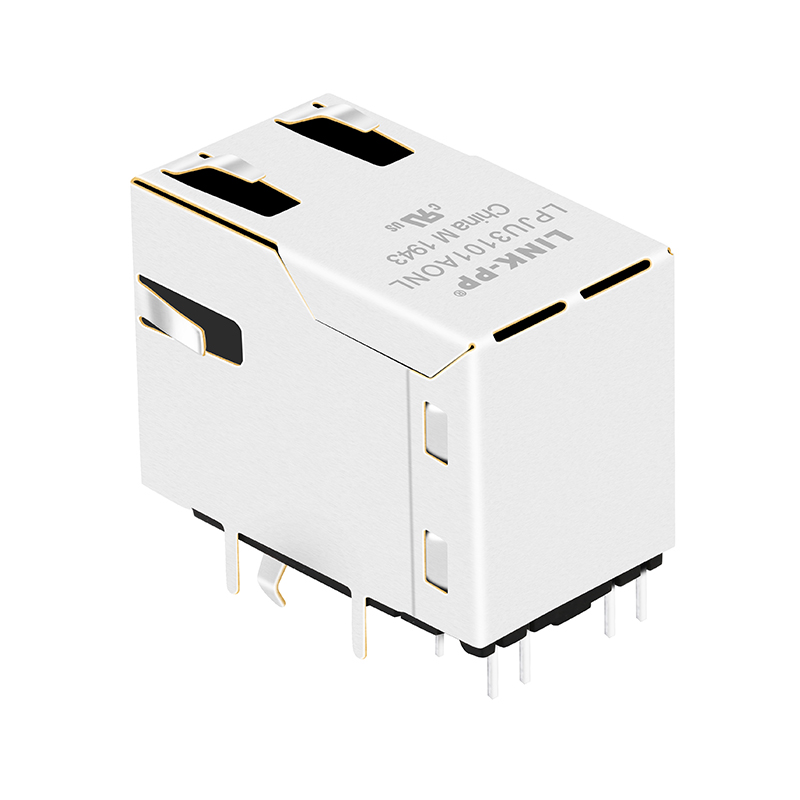

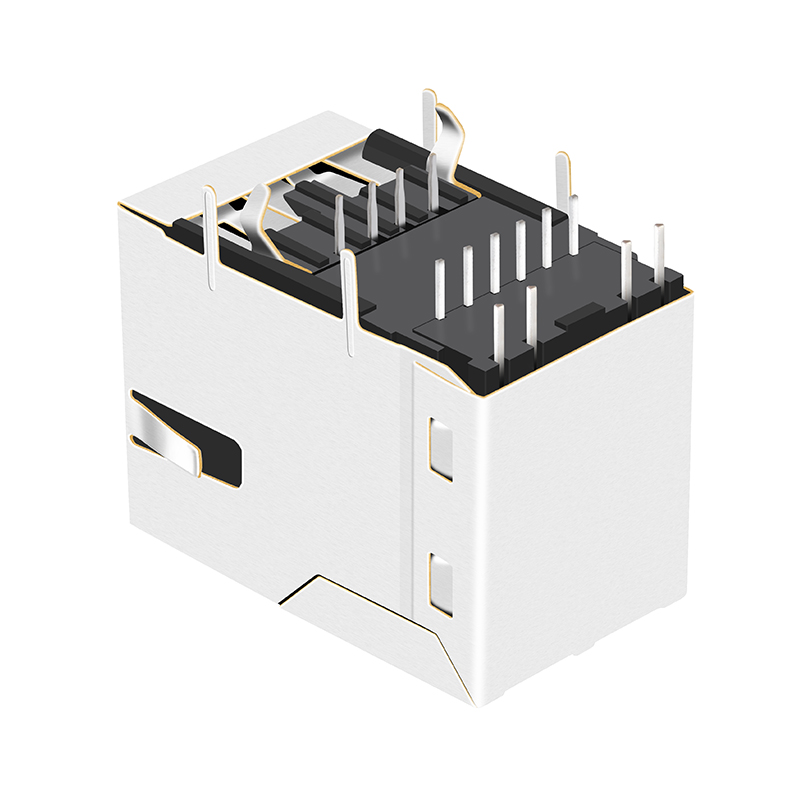

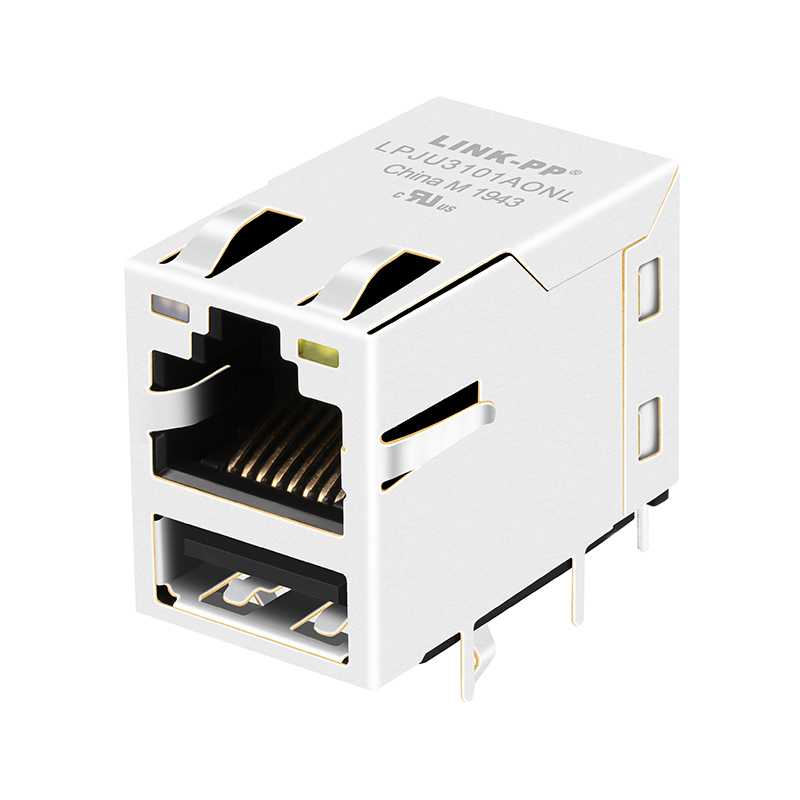

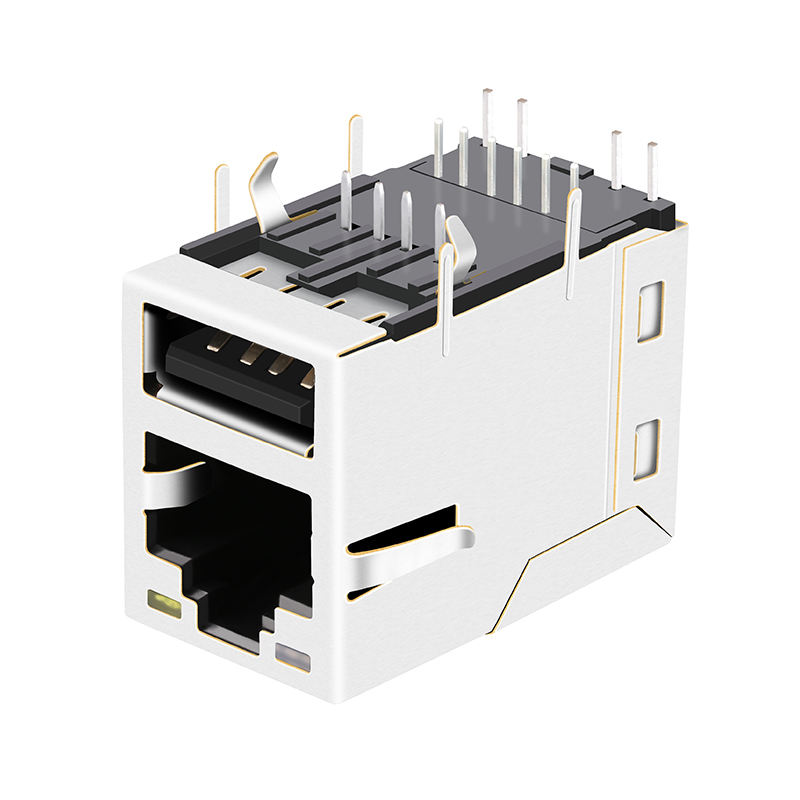

| Item | RJ45 Female Connector |
| Manufacturer Part Number | LPJU3101AONL |
| Cross Reference Part | 43F-1201DYD2NL |
| Part Status | Active |
| Connector Type | Jack |
| Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non-PoE) |
| Number of Ports | 1x1 Port With 1 USB |
| Speed | 10/100 Base-T |
| Latch Direction | Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Orange & Green / Yellow |
| PCB Material | FR4 |
| Retaining Post | T POST |
| Operating Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutoMDIX | YES |
| Contact Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
Our enterprise is a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we currently maintain a significant production team ensuring abundant capacity of 3000K per month, allowing for short delivery times.
We provide professional complete solutions for magnetic components and strong technical support. Main products include 10/100/1000M LAN pulse transformers and filters, RJ45 connectors with magnetics, T1/E1, T3/DS3/E3/STS-1 interface line transformers, and SFP modules. Our products are widely used in networking and communication equipment such as Hubs, Switches, Routers, IP Phones, and xDSL modems.
