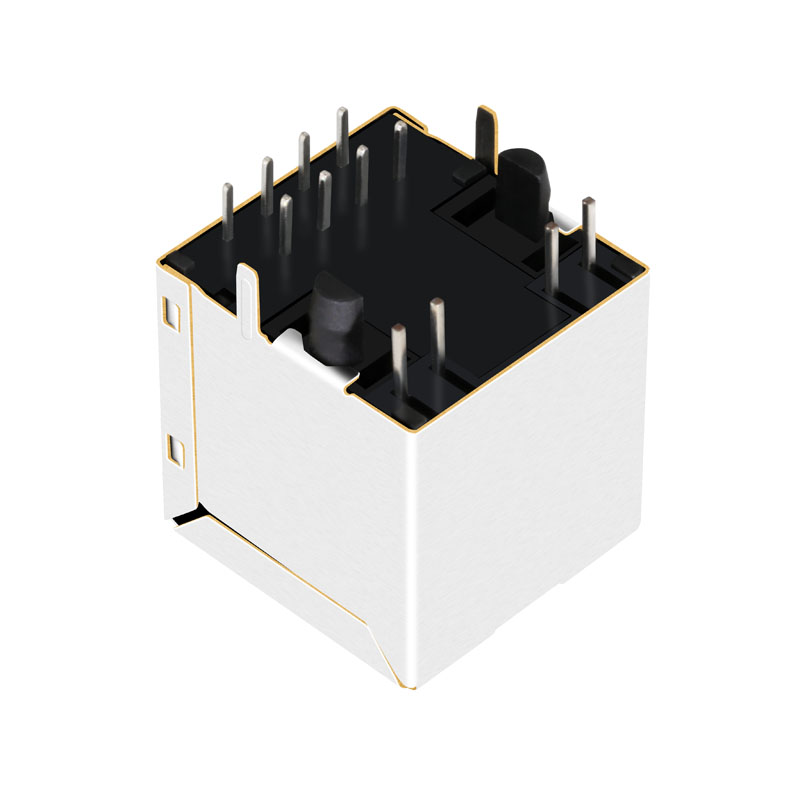

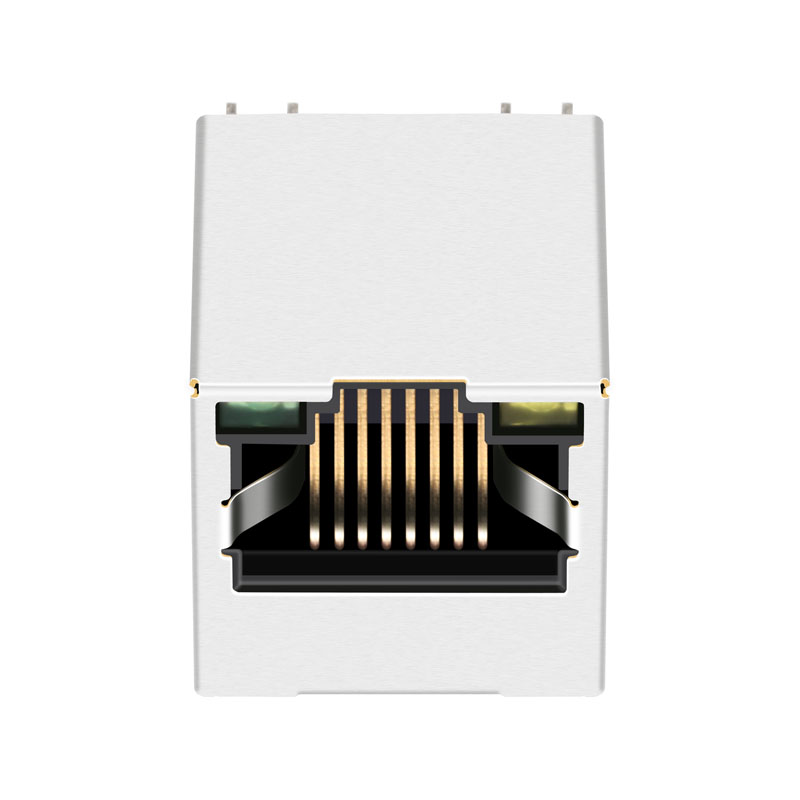

XRJV-01V-4-D12-380 Vertical Top Entry 10/100 Base-t Ethernet Magnetic RJ45 Jack With Leds
XRJV-01V-4-D12-380 Vertical Top Entry 10/100 Base-t Ethernet Magnetic RJ45 Jack With Leds
XRJV-01V-4-D12-380 Vertical Top Entry 10/100 Base-t Ethernet Magnetic RJ45 Jack With Leds
XRJV-01V-4-D12-380 Vertical Top Entry 10/100 Base-t Ethernet Magnetic RJ45 Jack With Leds
XRJV-01V-4-D12-380 Vertical Top Entry 10/100 Base-t Ethernet Magnetic RJ45 Jack With Leds
1 / 5
XRJV-01V-4-D12-380 Vertical Top Entry 10/100 Base-t Ethernet Magnetic RJ45 Jack With Leds
XRJV-01V-4-D12-380 Vertical Top Entry 10/100 Base-t Ethernet Magnetic RJ45 Jack With Leds
XRJV-01V-4-D12-380 Vertical Top Entry 10/100 Base-t Ethernet Magnetic RJ45 Jack With Leds
XRJV-01V-4-D12-380 Vertical Top Entry 10/100 Base-t Ethernet Magnetic RJ45 Jack With Leds
XRJV-01V-4-D12-380 Vertical Top Entry 10/100 Base-t Ethernet Magnetic RJ45 Jack With Leds

XRJV-01V-4-D12-380 Vertical Top Entry 10/100 Base-t Ethernet Magnetic RJ45 Jack With Leds

Send Inquiry

Product Description

Electronic Components Overview
XRJV-01V-4-D12-380 Vertical Top Entry 10/100 Base-t Ethernet Magnetic RJ45 Jack With Leds
⚙ Products Description
ItemRJ45 Female Connector
Part StatusActive
Part NumberLPJD0012BENL
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
Cores per Port4
Orientation180° Angle (Right)
PCB Mount AngleTop Entry
Shield EMI TabsWithout
LED OptionWith
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃
Bst CircuitYes
AutomDXYes
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
Product Technical Drawing
🗂 Product Categories
Product Range Selection
🏢 Manufacturing & Quality
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Production Facility
Testing Equipment
Assembly Line
Certification
Quality Control
Quality Assurance
Final Product
Factory Environment
Warehouse
Shipment Logistics
❓ FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though shipping fees are typically the responsibility of the customer.
3. What is your delivery time?
Items in stock are ready to ship immediately. For mass production, the standard lead time is 15-30 days.
4. What after-service can you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, we welcome OEM/ODM orders. Please contact us to discuss your specific requirements in detail.
6. What is your advantage?
We have 19 years of professional production experience and have been a trusted partner to major industry leaders for many years.
