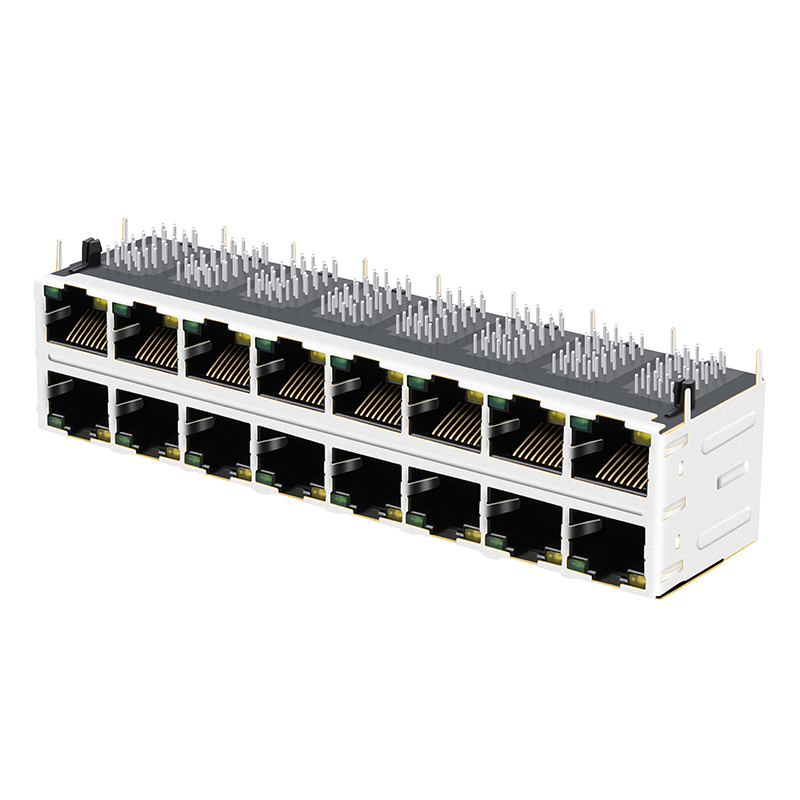

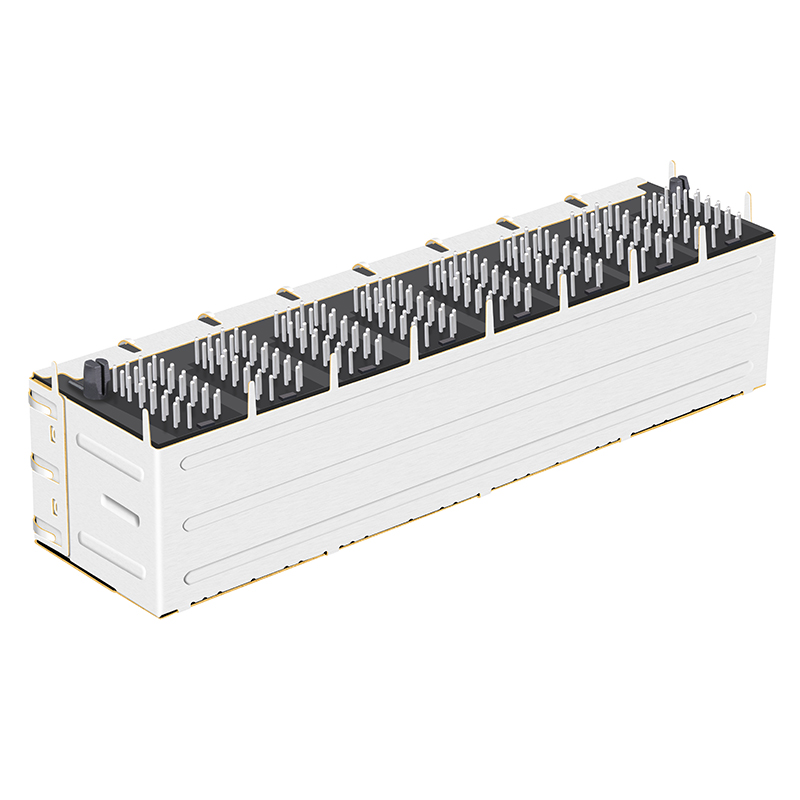

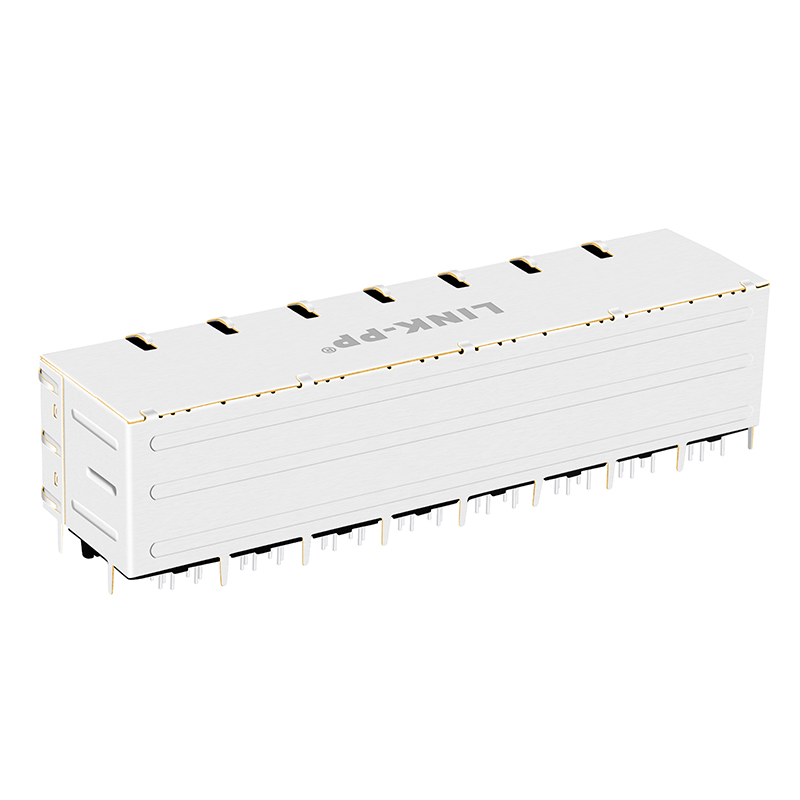

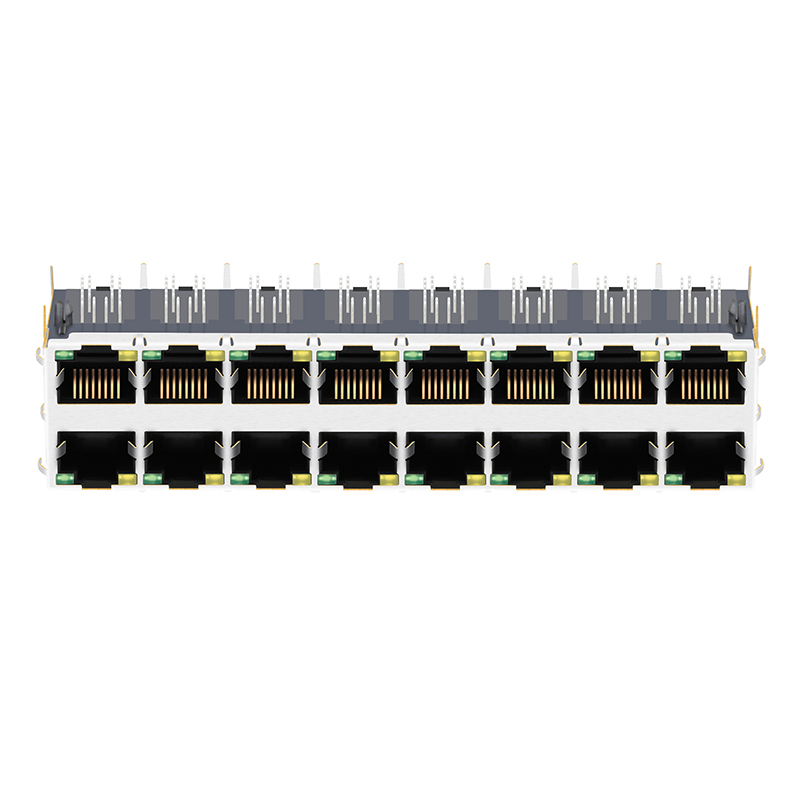

2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69
2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69
2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69
2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69
2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69
1 / 5
2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69
2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69
2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69
2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69
2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69

2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69

Send Inquiry

Product Description

RJ45 Jack Shielded Banner

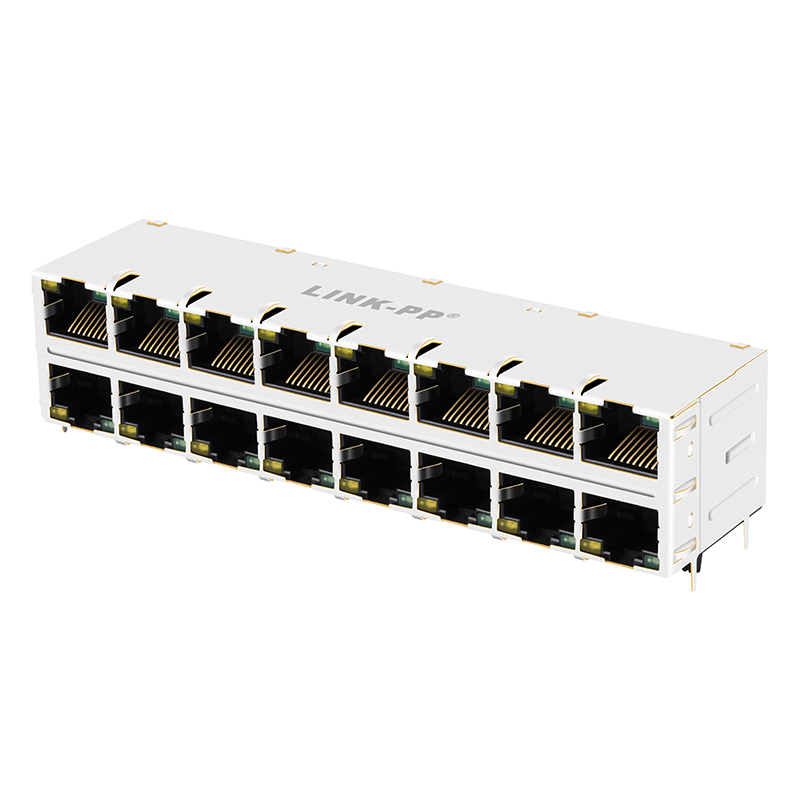

16port RJ45 Connector Product View
Technical Specifications Banner

Product Specifications

Part NumberRJ45 connector
Application-LANETHERNET (NON POE)
AutoMDIXYES
Bst CircuitYES
Configuration RX/TXT,C / T,C
Contact PlatingGOLD 6u"/15u"/30u"
Cores Per Port8
DiodesNO DIODES
LED OptionWITH LEDS
LatchUp/Down
Number of Ports2x8 (16 Ports)
PCB MaterialFR4
Mount AngleSIDE ENTRY
Pin TypeTHT SOLDER
RoHS CompliantYES
Speed10/100/1000 Base-T
Temperature-40°C ~ 85°C
Turns Ratio1CT:1
RJ45 Jack Dimensional Drawing

✔️Professional Certification

  • ISO 9001:2008
  • UL Certification
  • Reach Certification
  • RoHS Compliance
  • Active Environmental Policy

🛡️100% Quality Guarantee

  • Manufactured Under Strict Controls
  • 100% Tested (Not Just Batch Tested)
  • Quality Guarantee: 6 Years

💰Service & Value

  • Competitive Pricing
  • Delivery Time: 2-3 Weeks
  • Free Samples Available
  • Custom Design Support
Detailed Technical Specifications
RJ45 Connector Detail 1
RJ45 Connector Detail 2
Quality Assurance Banner
Product Application View
Connector Cross Section

Frequently Asked Questions

Q: What is the port configuration for this RJ45 jack? A: This is a 2x8 port configuration, providing a total of 16 shielded RJ45 ports in a single connector housing.
Q: What network speeds does this connector support? A: It is designed for high-speed Ethernet applications, supporting 10/100/1000 Base-T speeds.
Q: What is the operating temperature range? A: This connector is designed for industrial durability, with an operating temperature range of -40°C to 85°C.
Q: Does the connector include integrated LEDs? A: Yes, this model comes with integrated LEDs and an Up/Down latch configuration.
Q: Is this product RoHS compliant? A: Yes, the product is RoHS compliant, meeting international environmental standards for electronic components.
Q: What type of mounting does this RJ45 connector use? A: It uses THT (Through-Hole Technology) solder pins with a side-entry PCB mount angle.
