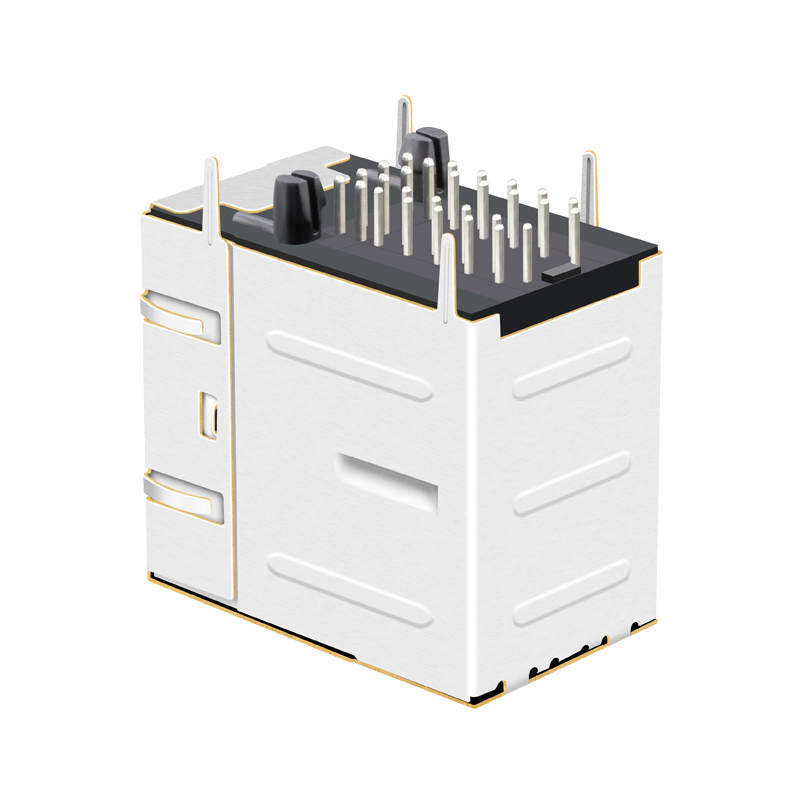

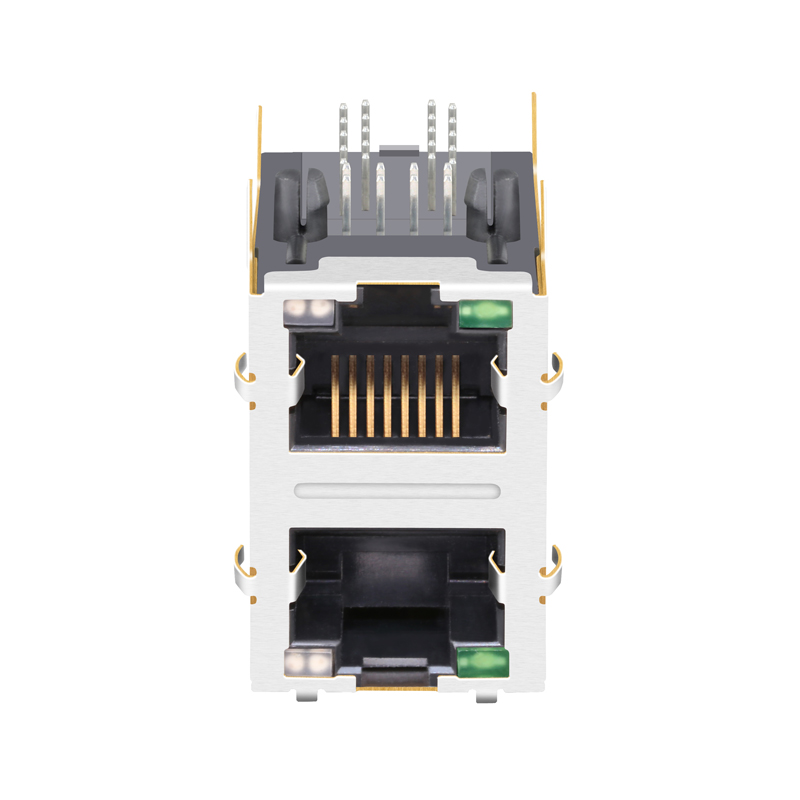

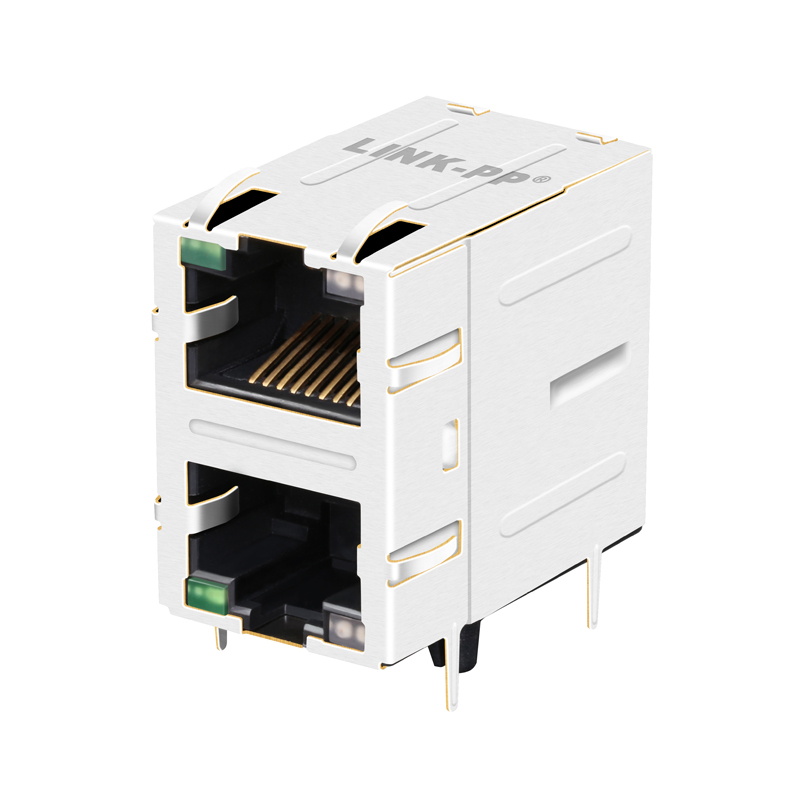

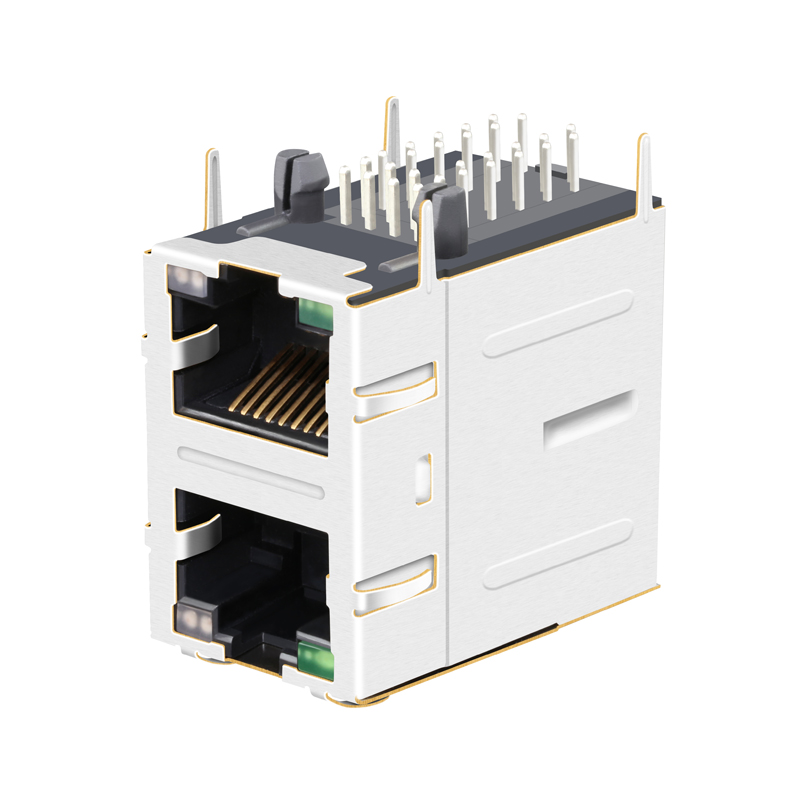

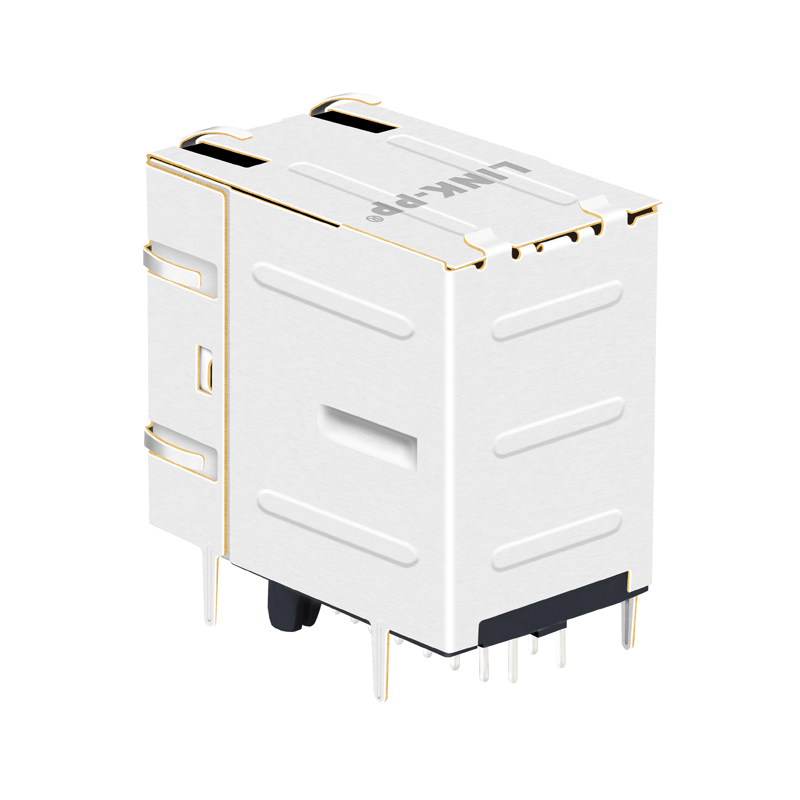

This high-performance Multi-Port RJ45 Connector is designed for stacked 2X1 configurations, providing a compact and efficient solution for Ethernet networking. Compatible with part numbers like SS-7188S-A-PG4-1-BA-50, 0844-2B1T-33-F, E5908-0T0343-L, and 0845-2R1T-W2, it is engineered for reliability in high-speed data environments.
| Item | RJ45 Female Connector |
| Compatible With | E5908-0T0343-L 0845-2R1T-W2 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non PoE) |
| Number of Ports | 2xN Port |
| Speed | 10/100/1000 Base-T |
| Latch | Down/Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without/With |
| LED Option | Green/Yellow |
| PCB Material | FR4 |
| PCB Retaining Post | T POST |
| Temperature Range | 0℃ TO 70℃ / -40℃ TO 85℃ |
| Bst Circuit | Yes |
| AutoMDX | YES |
| Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
Established in 1997, our company is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve as a global supplier to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries.
By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
