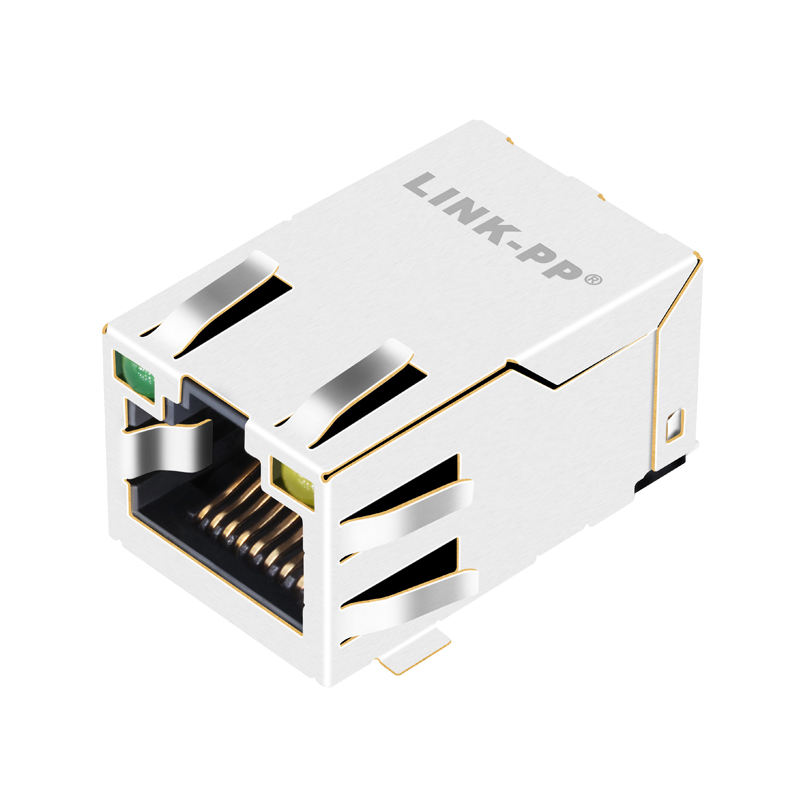

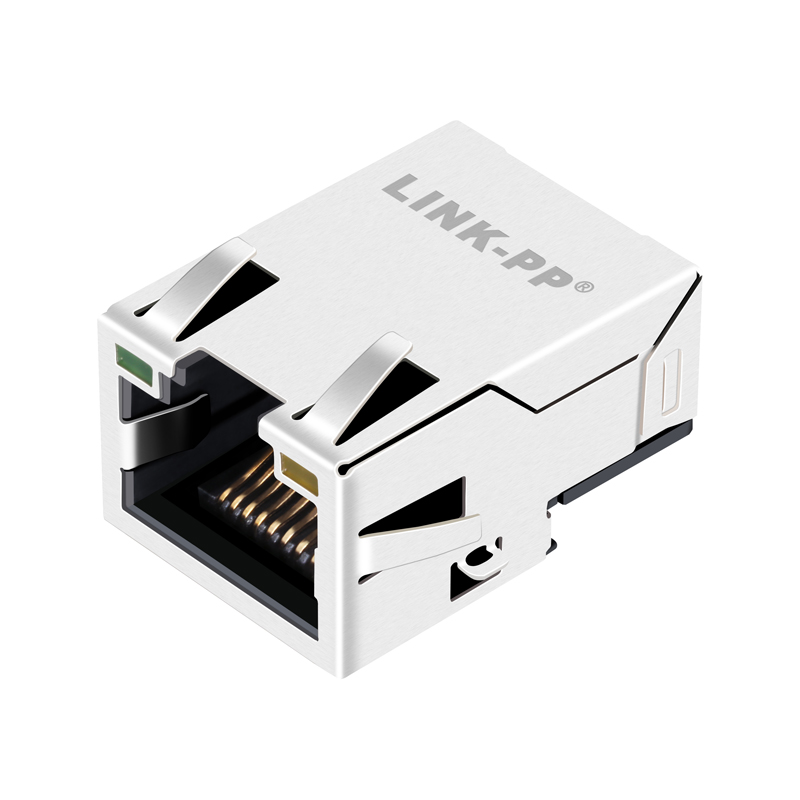

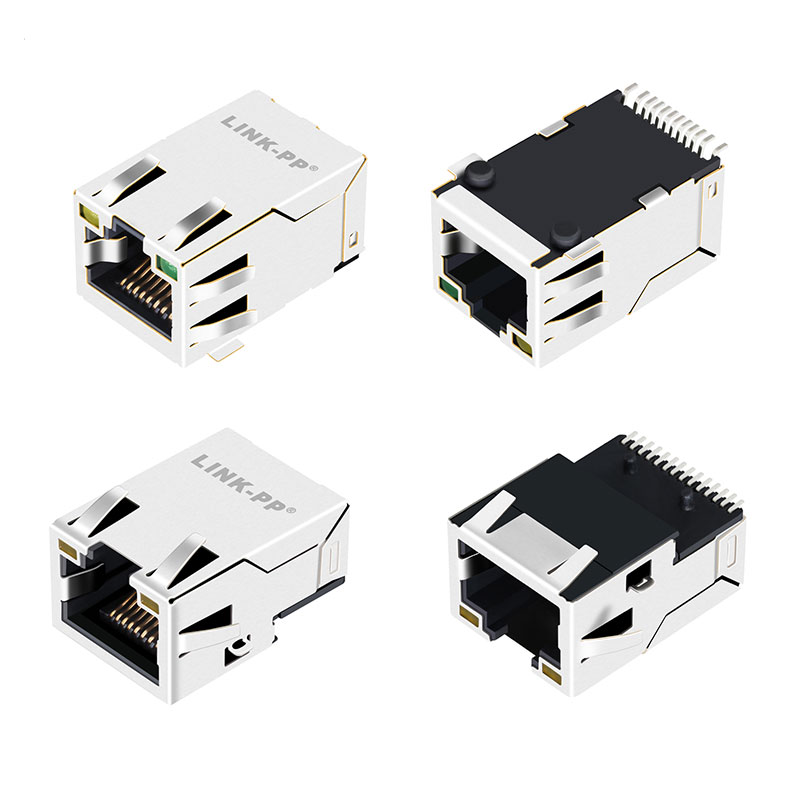

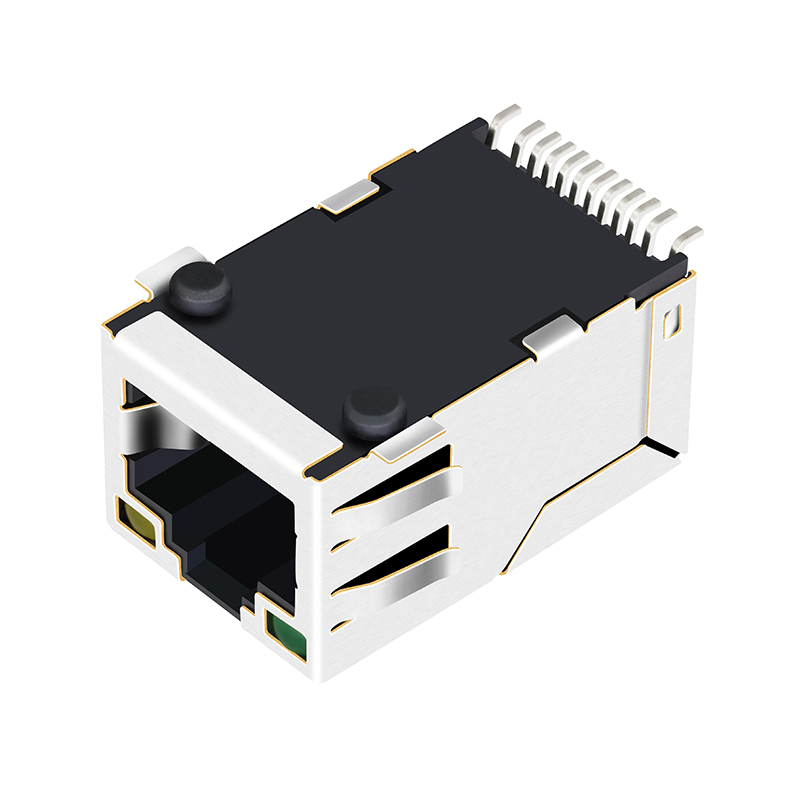

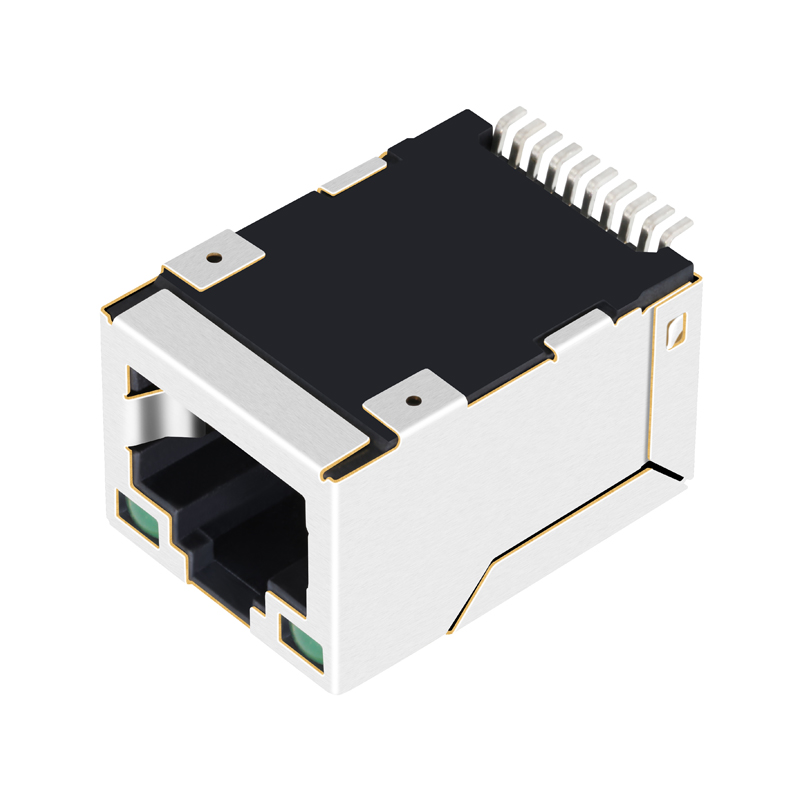

100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors

Send Inquiry

Product Description

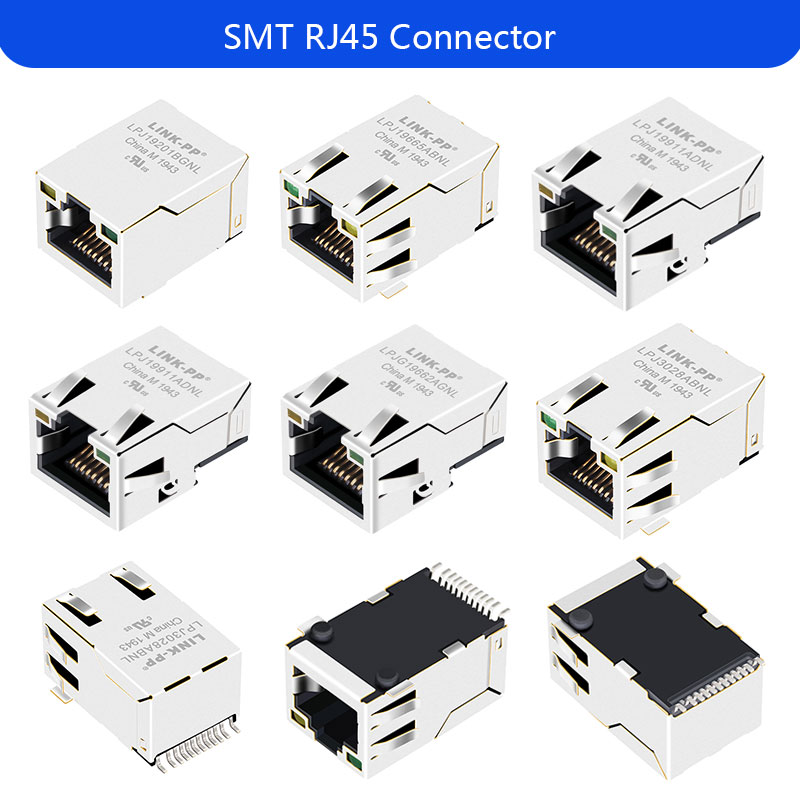

📋 Characteristics

RJ45 Connector with integrated transformer / common mode choke. Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s. Available in SMT, THT and THT with USB. Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt. HPLE products: Improved Common Mode Rejection due to additional NiZn cores.

⚙️ Specifications

Model Number	SMT RJ45 Connector
Part Status	Active
Connector Type	RJ45
Applications-Lan	Ethernet(PoE/Non_PoE)
Speed	10/100/1000 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack	4/6/8/12
Shielding	Shielded, Emi Finger
Number of Ports	Single Port
Features	Board Guide
Tab Direction	Down/Up
Contact Finish	Gold
Configuration RX/TX	T,C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	0°C ~ 70°C / -40°C ~ +85°C

📦 Packing & Delivery

Package Details: Tray Packing
Carton size: 34.5*34.5*27cm
G.W./carton: 6.9kg
Qty/carton: 550pcs
SPQ: 110pcs
N.W/pcs: 0.013kg

🏭 Production Facility

❓ FAQ

How is the quality of the RJ45 connectors guaranteed?

We always provide a pre-production sample before starting mass production and conduct a final inspection before every shipment to ensure the highest quality standards.

What specific products are available in your range?

Our product line includes RJ45 Magnetic connectors, Lan transformers, RJ11 Connectors, standard RJ45 Connectors, and SFP modules.

What are the technical capabilities of these connectors?

The connectors feature integrated transformers, support Power over Ethernet (PoE) up to 50 Watts, and can achieve data speeds up to 10 Gbit/s. They are available in SMT and THT mounting types.

Which industrial standards do your products comply with?

Our products are compliant with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and the upcoming IEEE 802.3bt standards.

What delivery terms and payment methods are accepted?

We accept various delivery terms including FOB, CFR, CIF, EXW, DDP, and Express Delivery. Accepted payment methods include T/T, L/C, Credit Card, PayPal, and Western Union in multiple currencies such as USD, EUR, and HKD.

What makes these connectors different from other suppliers?

With 19 years of specialization in manufacturing RJ45 connectors and LAN transformers, we maintain a high production capacity of 30,000K per week and hold certifications including SGS, UL, and CE.
