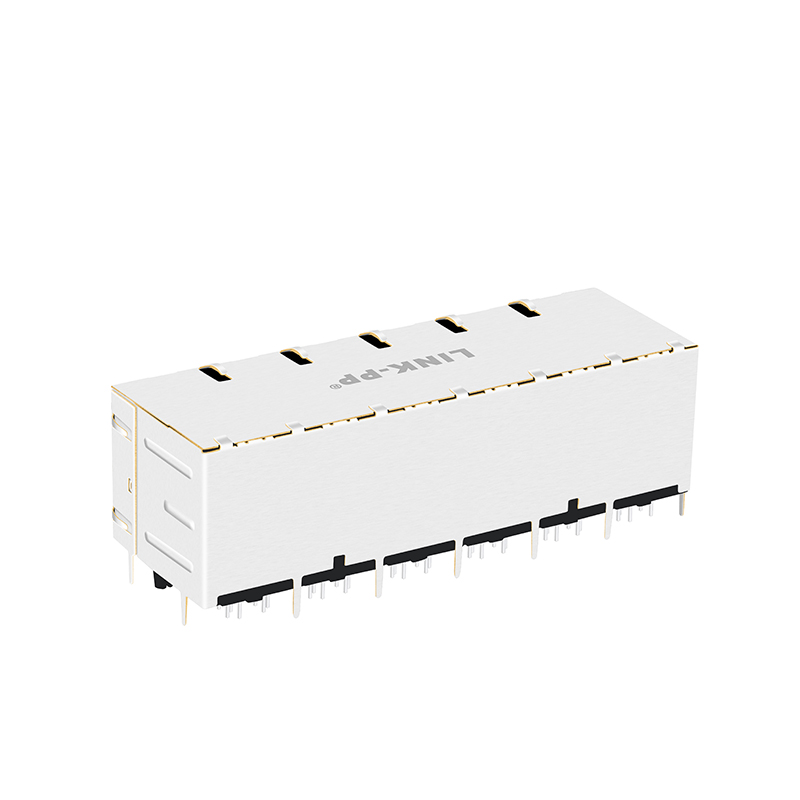

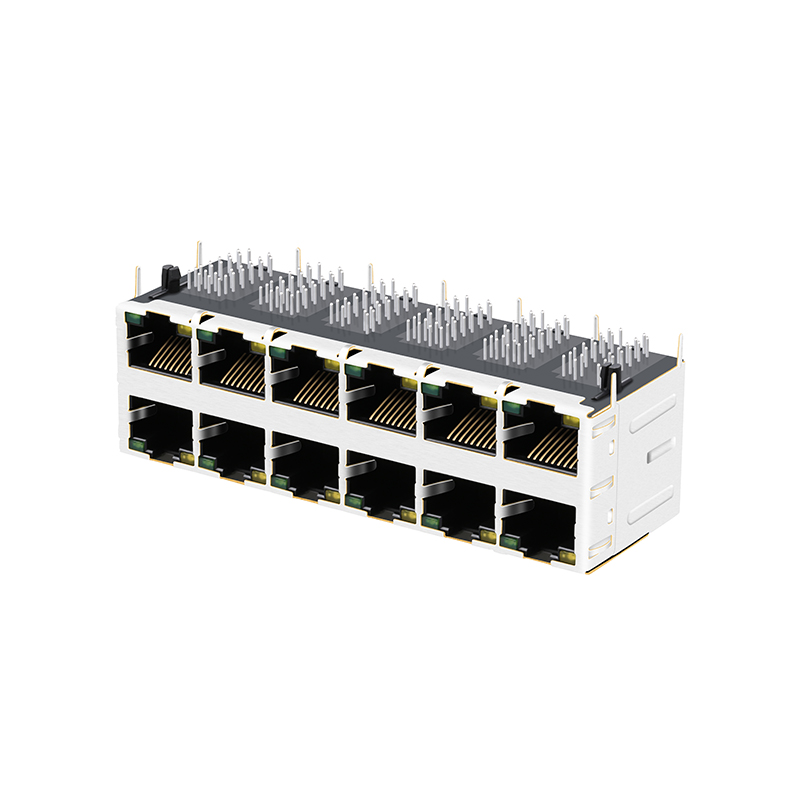

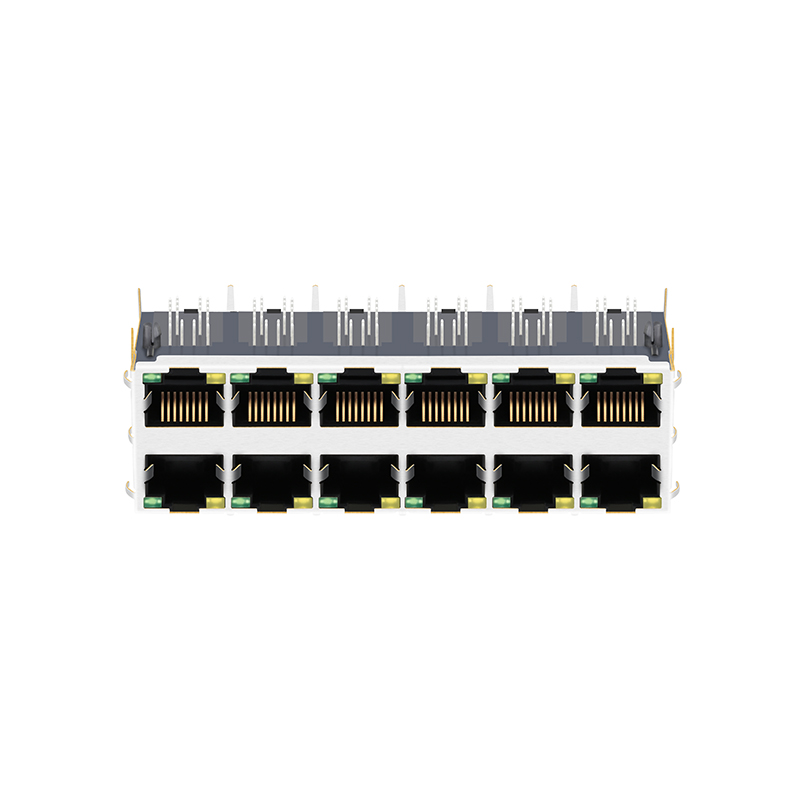

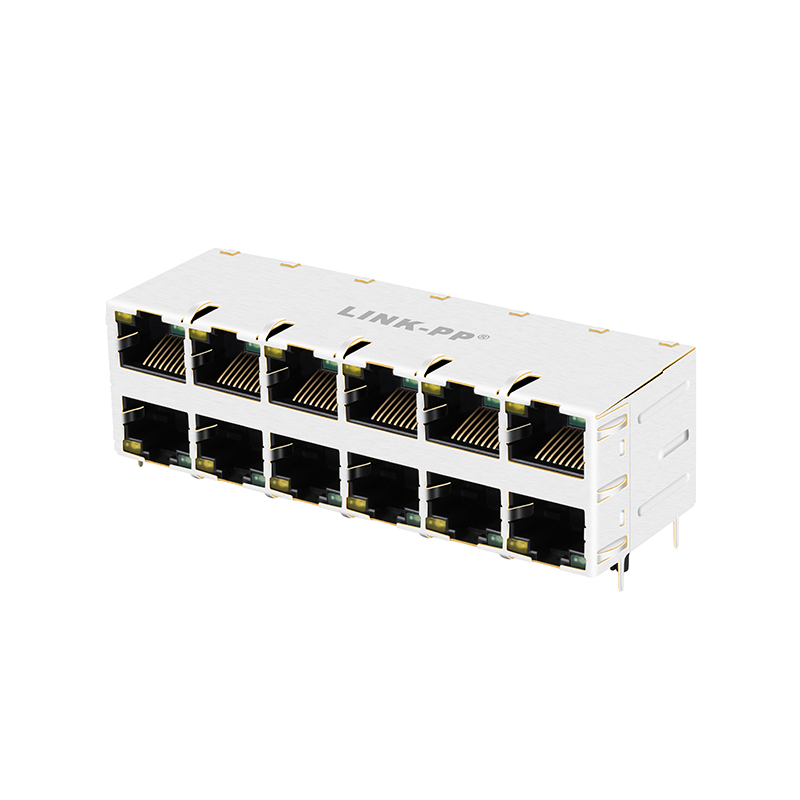

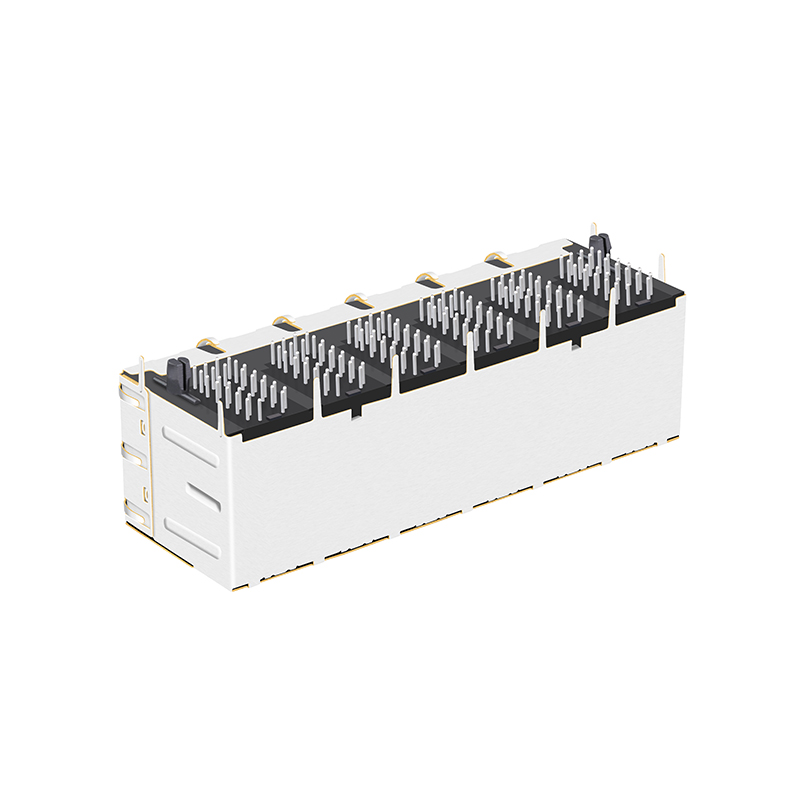

10/100/1000 Base-T RJ45 Stacked Jack 2x6 port RJ45 Jack RJGE-12M6170DJP

Send Inquiry

Product Description

Part Number	RJGE-12M6170DJP
Application-LAN	ETHERNET (NON POE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	WITH/WITHOUT LEDS
Latch	UP/DOWN
Number of Ports	2X6
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH OR WITHOUT
Speed	10/100/1000/10G BASE-T
Temperature	0 TO 70°C / -40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Why Choose Us

World Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

• Preferred Supplier of Leading Brands like Samsung, Cisco, Siemens, and Intel.

• You Will Find Our Logo on Major BeagleBone Boards.

Frequently Asked Questions

What is the data transfer speed supported by this RJ45 Jack?

This stacked RJ45 jack supports 10/100/1000/10G Base-T speeds, making it suitable for high-speed Ethernet applications.

Does this connector support Power over Ethernet (PoE)?

No, this specific model (RJGE-12M6170DJP) is designed for non-PoE Ethernet applications.

What are the environmental operating conditions?

The connector can operate in temperatures ranging from standard commercial (0 to 70°C) to industrial grades (-40 to 85°C).

Is this product RoHS compliant?

Yes, it is RoHS-5 compliant with lead-in-solder exemption, following an active environmental policy.

What is the mounting type and configuration for this part?

It features a 2x6 port stacked configuration with side entry (right angle) PCB mounting and THT solder pins.

Can I get samples for testing before placing a bulk order?

Yes, free samples are available for customer evaluation and design requirements.
