LumoWave
1 / 5

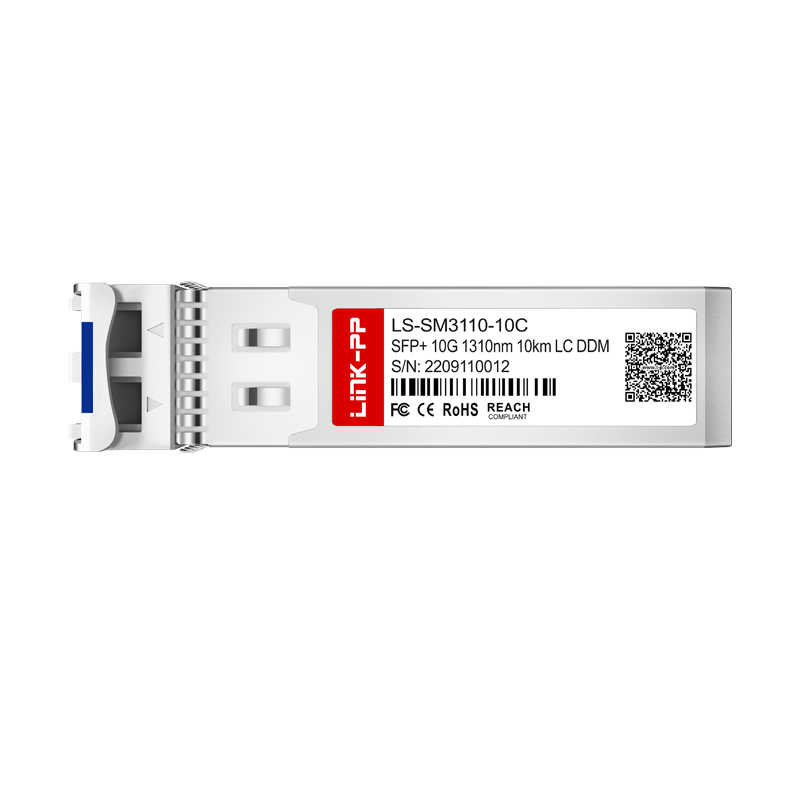

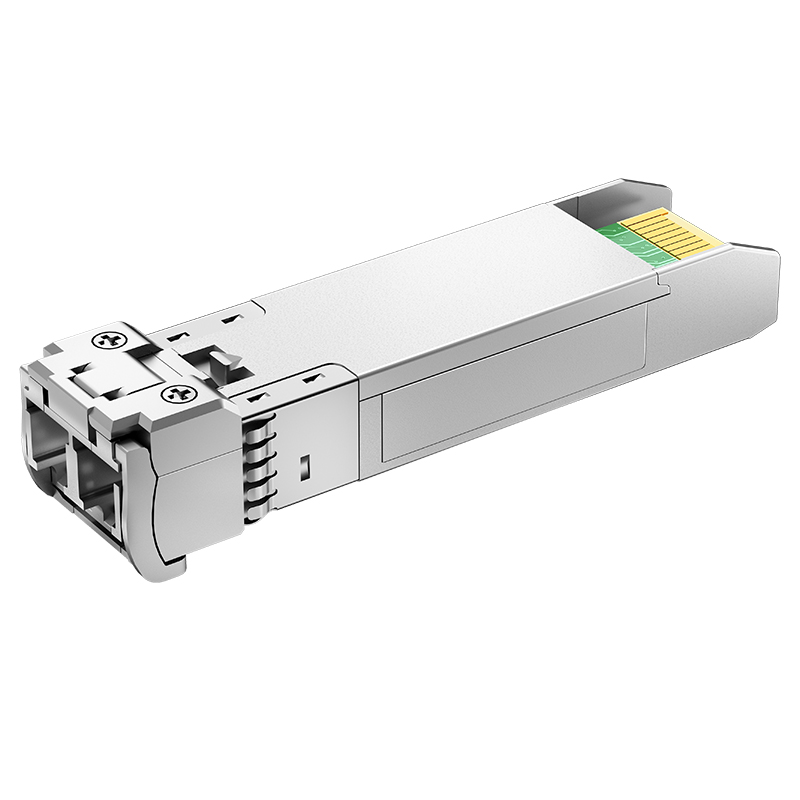

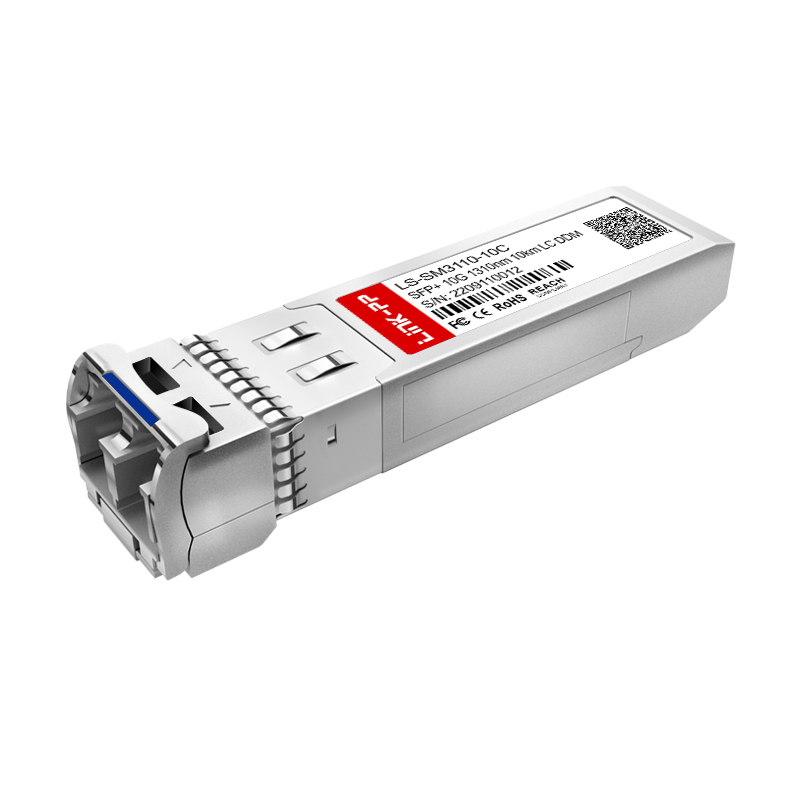

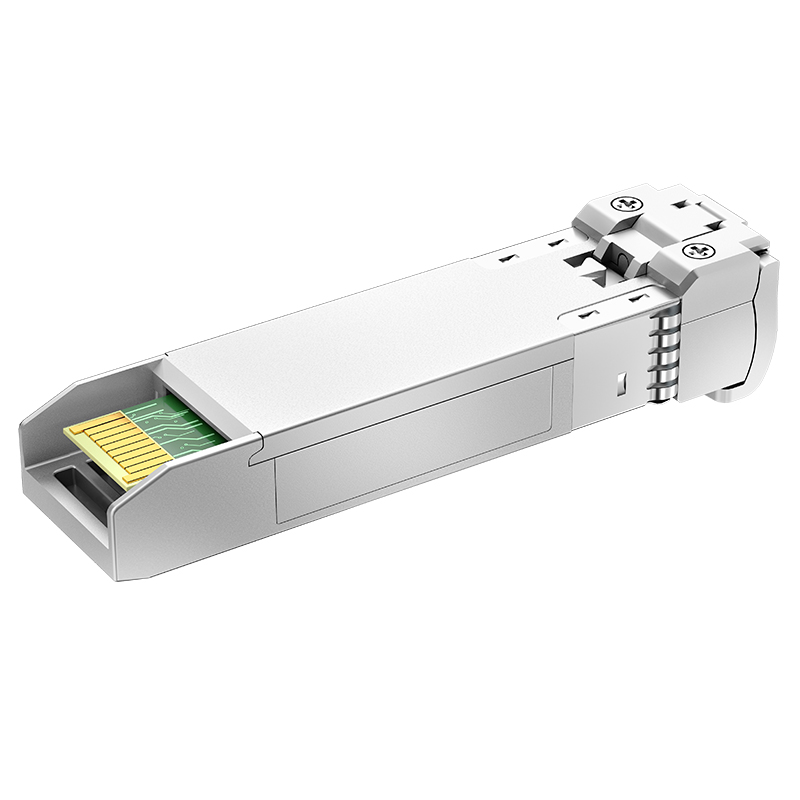

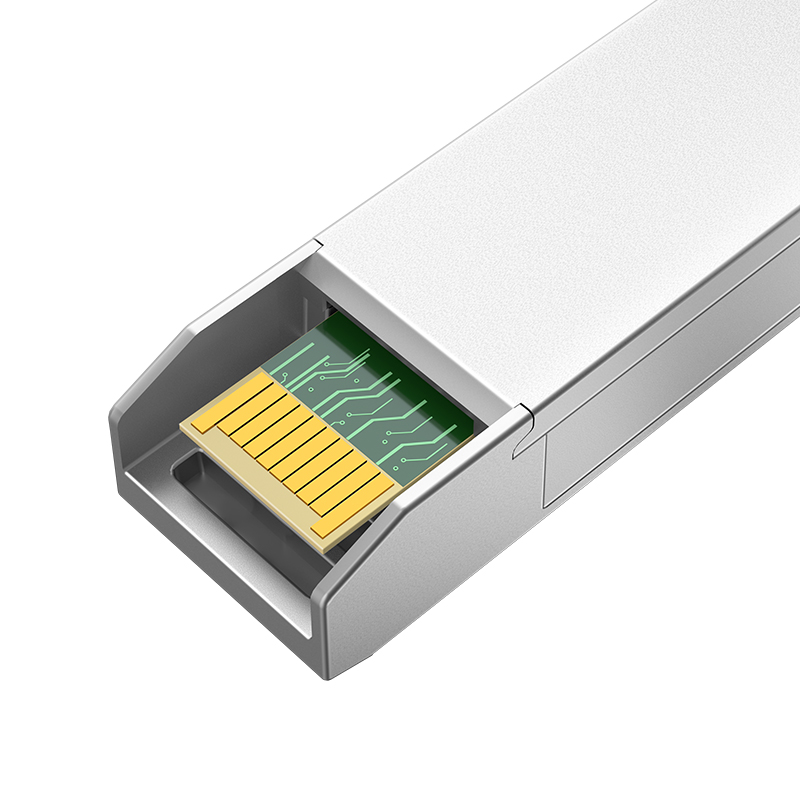

| Item | Fiber Optical Modules |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 10G Base |
| Wavelength | 1310nm |
| Max Cable Distance | 10km |
| Fiber Type | SMF |
| Media | 1x1 Port |
| Connector | Duplex LC |
| Power Consumption | <1W |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| EMC | Supported |
| MTBF | 1,000,000 Hours |
| Protocols | IEEE Std 802.3 and 802.3ab, SFP MSA Compliant |
| Warranty | 5 Years |
| Sample | Available |
🚀 We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
🌐 We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
As a specialized manufacturer of magnetic telecom and networking components, we are certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad.
With abundant productive capacity, we are able to deliver products within a short time. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks.
