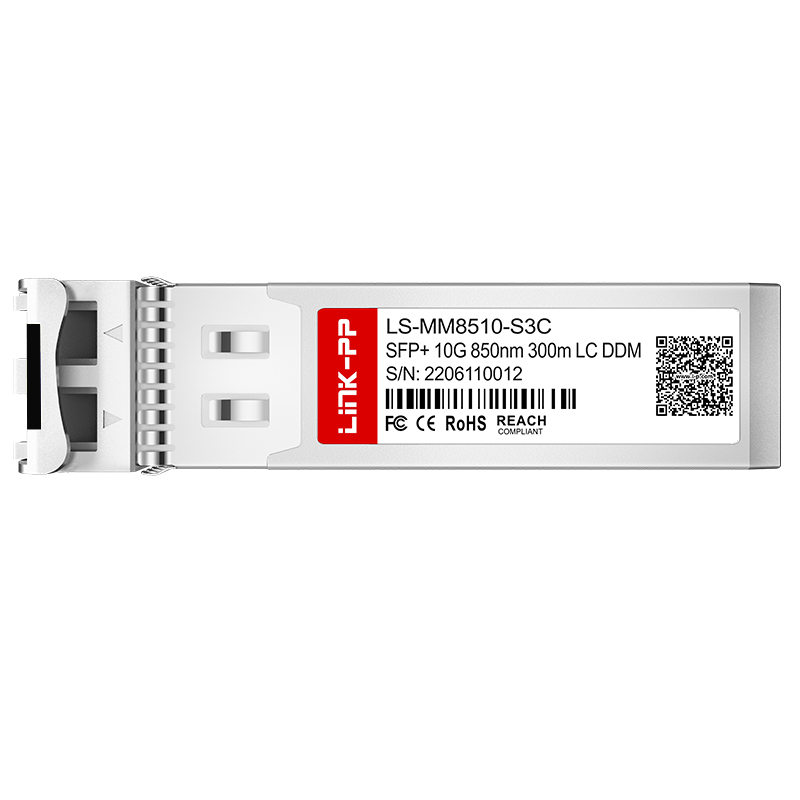

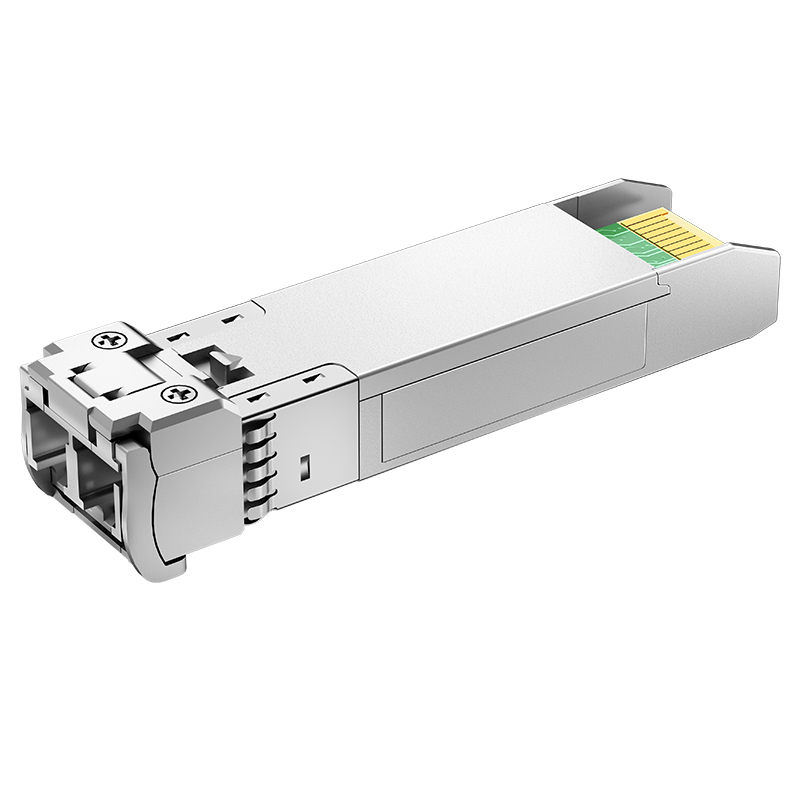

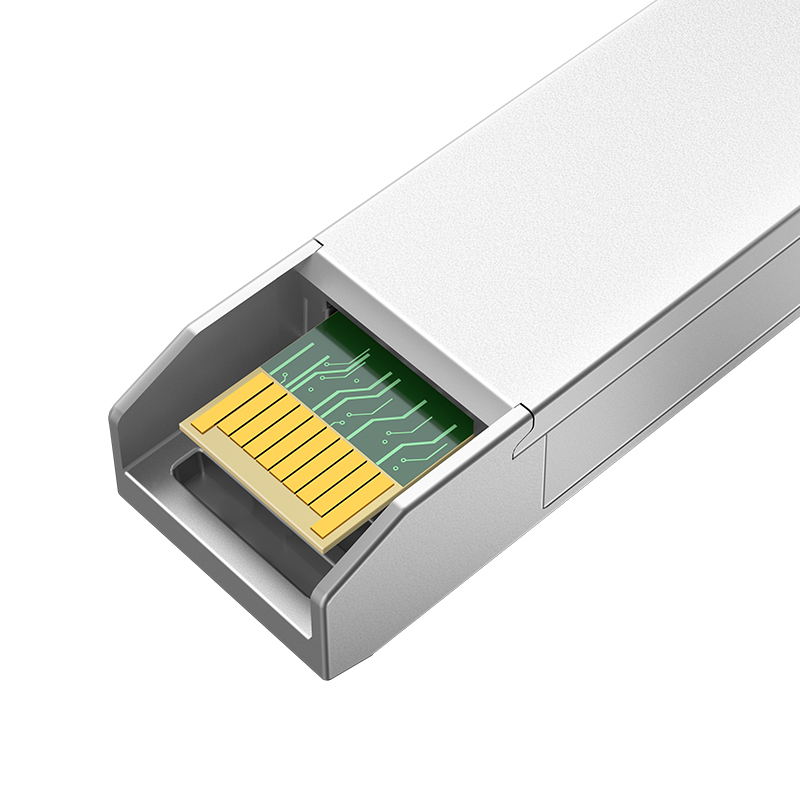

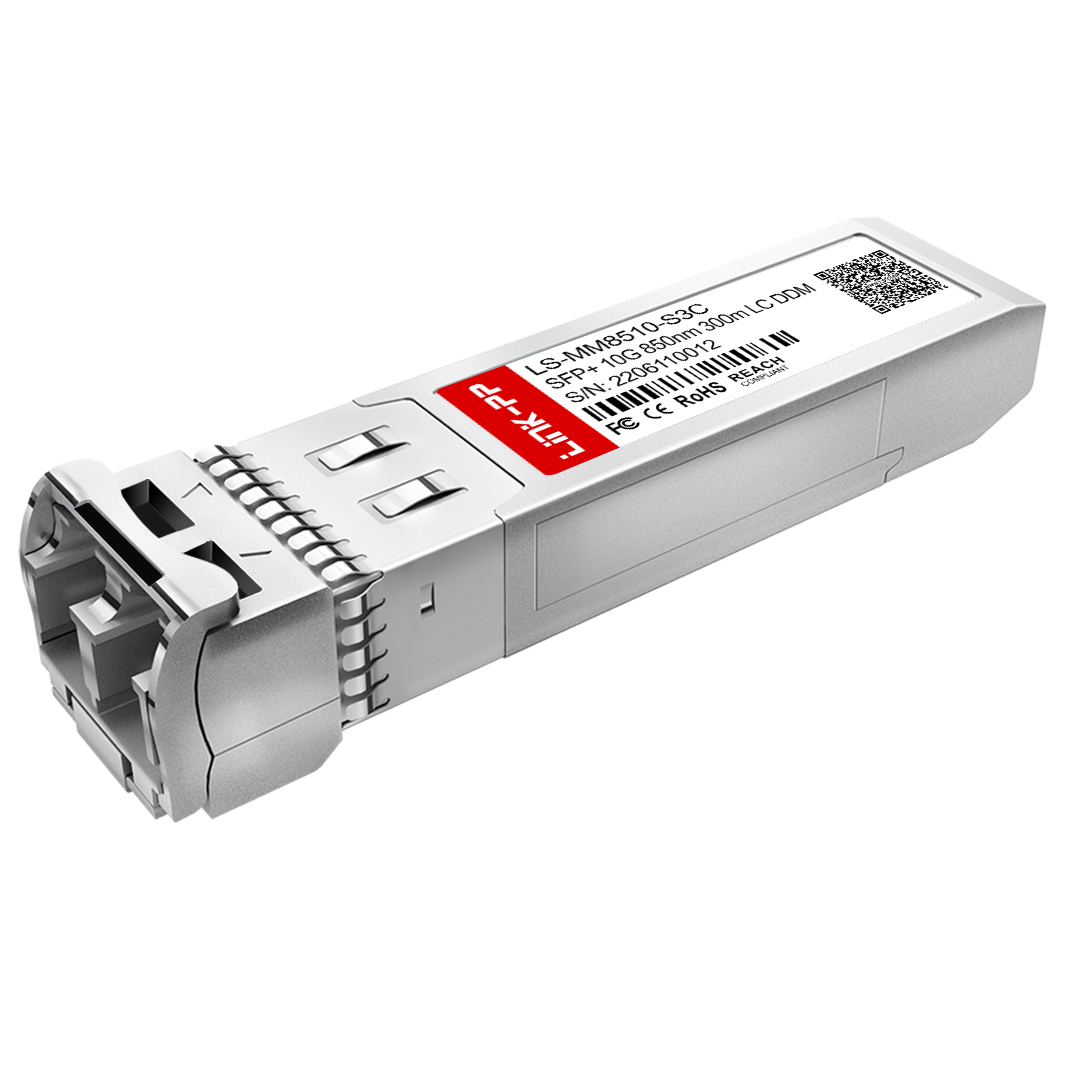

| Item | 10G SFP+ Module |
| Part Status | Active |
| Form Factor | SFP+ |
| Max Data Rate | 10G |
| Max Cable Distance | 300m@OM3 / 400m@OM4 |
| Wavelength | 850NM |
| Connector | Duplex LC |
| Media | MMF |
| Optical Component | VCSEL/PIN |
| TX Power | -7.3~-1dBm |
| Receiver Sensitivity | < -11.1dBm |
| Receiver Overload | -1dBm |
| Power Consumption | <1W |
| DDM/DOM | DDM Supported |
| Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |
| Sample | Available |
💡 We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
Providing a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, with a large workforce and abundant productive capacity, we ensure short delivery times and high-quality output for high-speed optical interconnection solutions, cloud computing, and ultra-broadband networks.
