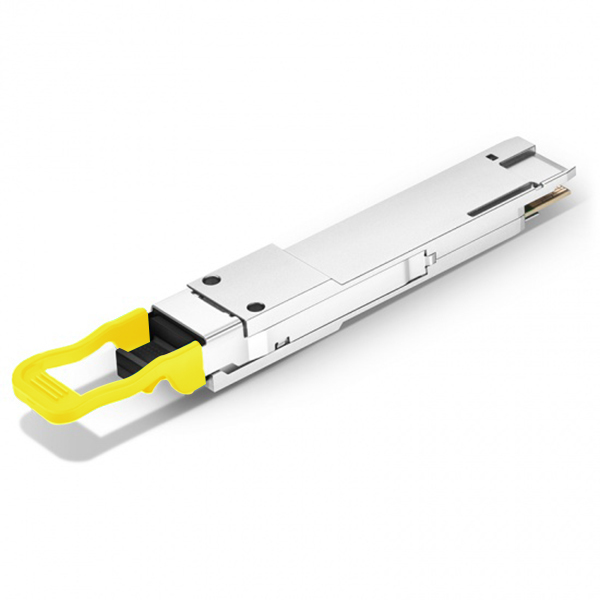

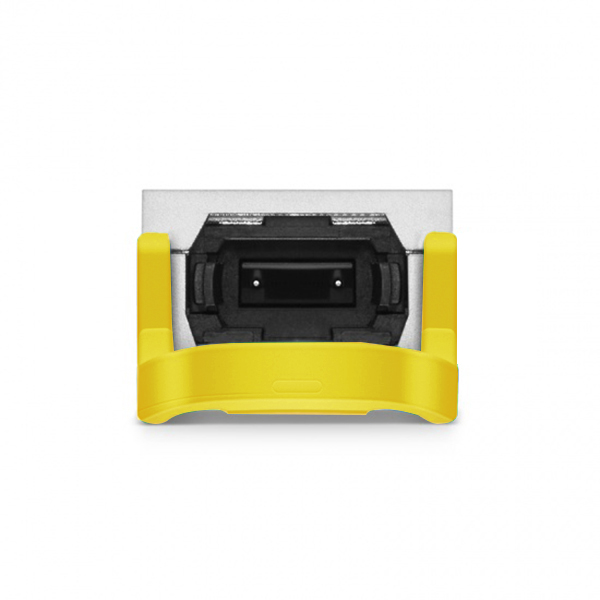

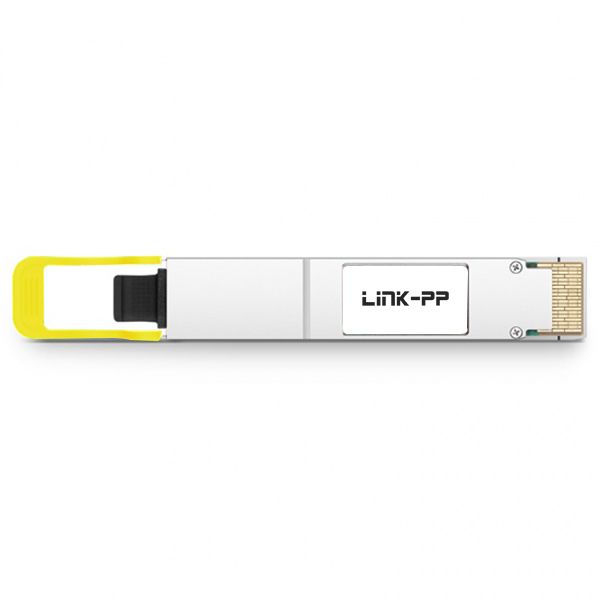

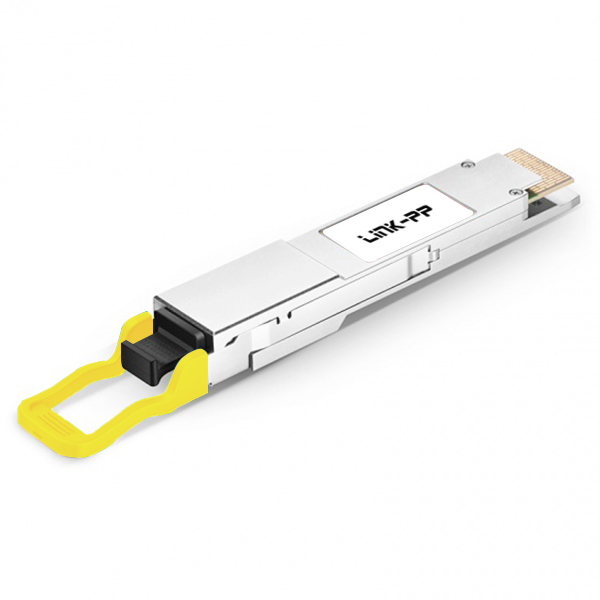

400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module
400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module
400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module
400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module
400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module
1 / 5
400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module
400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module
400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module
400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module
400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module

400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module

Send Inquiry

Product Description

400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module
View Our Solution
⚙️
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Products Description
ItemFiber Optical Modules
Part StatusActive
Form FactorQSFP-DD
Max Data Rate425Gbps (4x106.25Gb/s)
Max Cable Distance500m
Wavelength1310nm
ConnectorMTP/MPO-12 APC
MediaSMF
Optical ComponentDFB/PIN
TX Power-2.9~4dBm
RX Power-5.9~4.0dBm
Receiver Sensitivity-6.5dBm
Power budget3dB
Power Consumption≤10W
Extinction Ratio3.5dB
DDM/DOMDDM Supported
Commercial Temperature Range0 to 70°C (32 to 158°F)
Warranty5 Years
SampleAvailable
ProtocolsIEEE 802.3bs, QSFP-DD MSA, CMIS 4.1
Product Image 1 Product Image 2 Product Image 3 Product Image 4 Product Roadmap Product Features
Production Detail 1 Production Detail 2
Related Products
SFP Cage
Why Choose Us
Benefit 1 Benefit 2 Benefit 3 Benefit 4
Manufacturing Excellence
🏢
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have a large professional team and abundant productive capacity to ensure short delivery times. We offer high-speed optical interconnection solutions for cloud computing and ultra-broadband networks.
Factory View 1 Factory View 2 Quality Control
Frequently Asked Questions
🔹 1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, and SFP modules.
🔹 2. Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees are typically covered by the customer.
🔹 3. What is your delivery time?
We have items ready to ship for stock orders, and mass production typically takes 15-30 days.
🔹 4. What after-service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
🔹 5. Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries for detailed discussion based on your requirements.
🔹 6. What is your core advantage?
With over 19 years of production experience, we are a trusted partner for major global technology firms.
