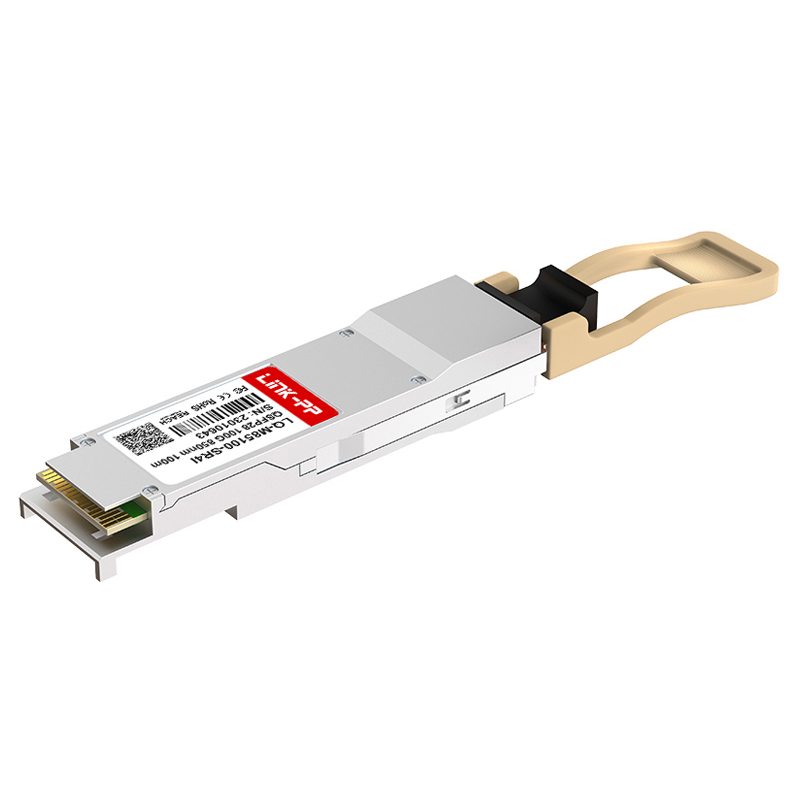

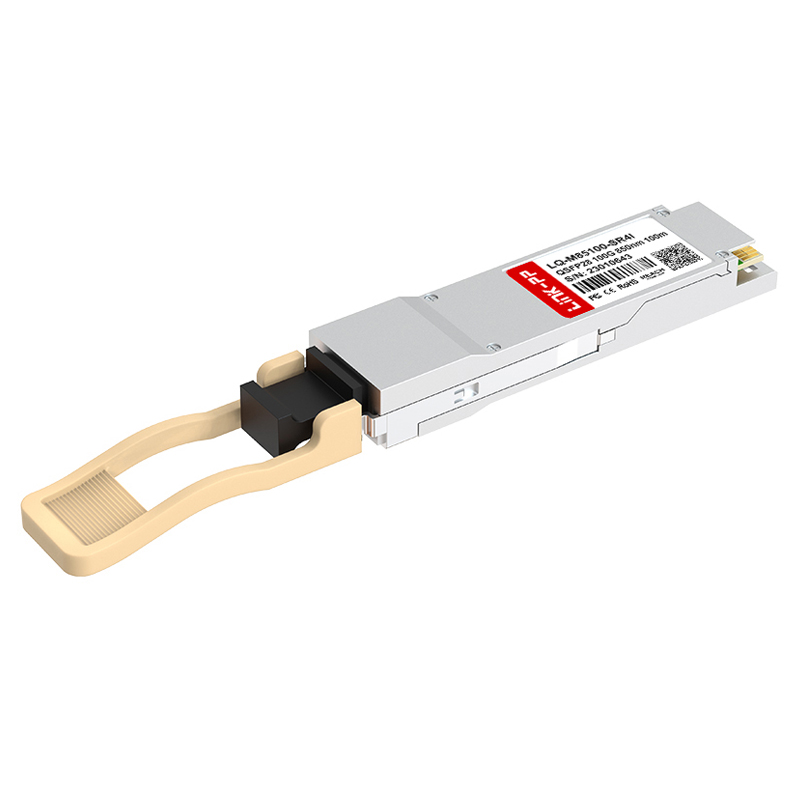

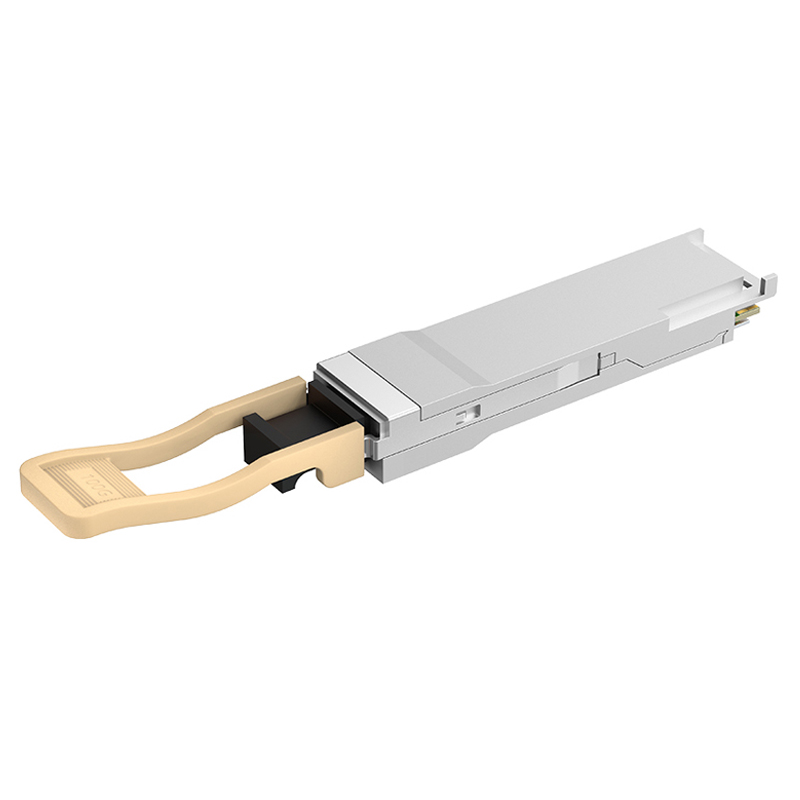

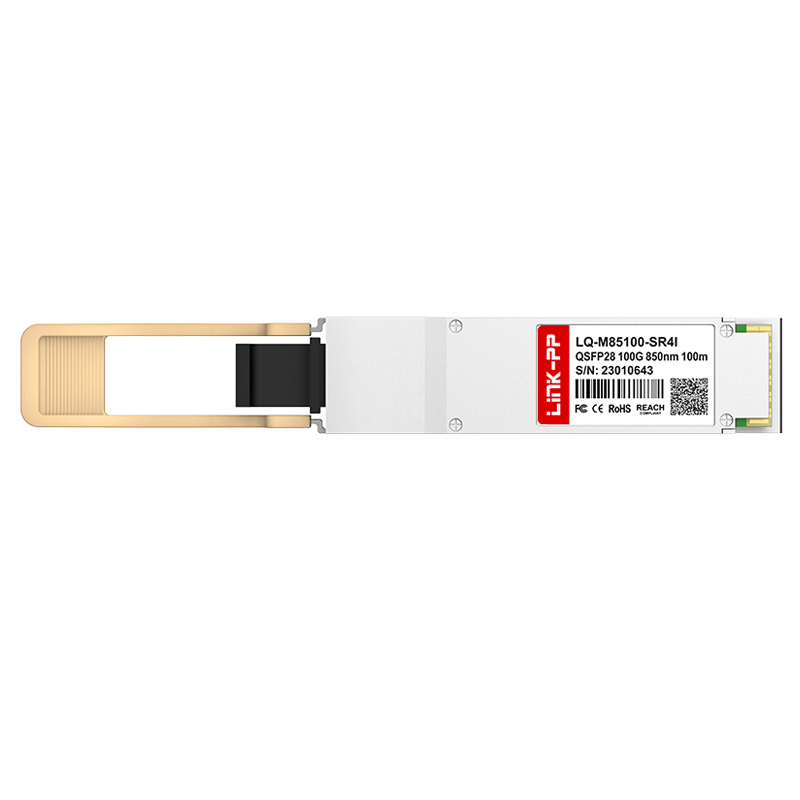

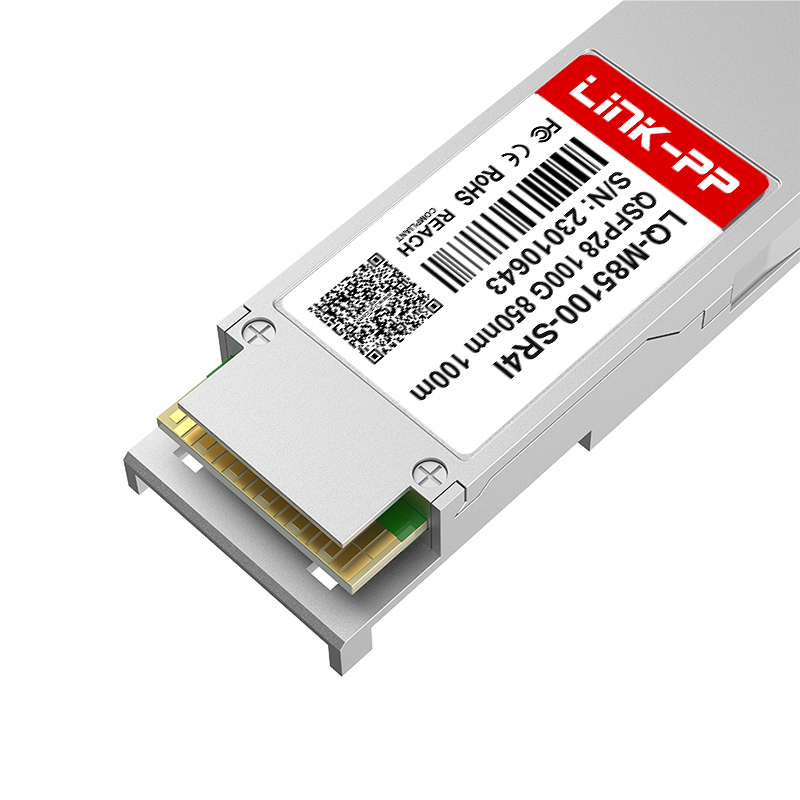

QSFP28 100G Base-t 850nm 100m MPO MMF Fiber Optical Transceiver Module

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Products Description

Item	Fiber Optical Modules
Part Status	Active
Form Factor	QSFP
Max Data Rate	103.125Gbps (4x 25.78Gbps)
Max Cable Distance	70m@OM3/100m@OM4
Wavelength	850nm
Connector	MTP/MPO-12
Commercial Temperature Range	0 to 70°C (32 to 158°F)
Transmitter Type	VCSEL 850nm
TX Power	-8.4~2.4dBm
Receiver Sensitivity	<-10.3dBm
Power Budget	1.9dB
Receiver Overload	2.4dBm
Power Consumption	≤2.5W
Extinction Ratio	＞3dB
DDM/DOM	Supported
Warranty	5 Years
Protocols	IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, RoHS, CPRI, eCPRI

VIEW OUR SOLUTION

Related Products SFP Cage

Why Choose Us

Company Profile

Our company is a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad.

Established in 1997, we currently have around 2000 staff members. With an abundant monthly production capacity of 3000K, we are able to deliver products within a short timeframe.

We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks.

FAQ

1. Are you a factory or trading company? We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

2. Can I get a sample before mass production? Yes, we can offer free samples to test quality, though shipping fees apply.

3. What is your delivery time? Ready-to-ship for stock items and 15-30 days for mass production.

4. What after-sales service do you offer? We provide a one-year guarantee period and technical support online 24 hours.

5. Can you accept OEM/ODM orders? Yes, we welcome inquiries for detailed discussions regarding custom orders.

6. What is your advantage? With 19 years of production experience, we have established long-term partnerships with leading global technology companies.
