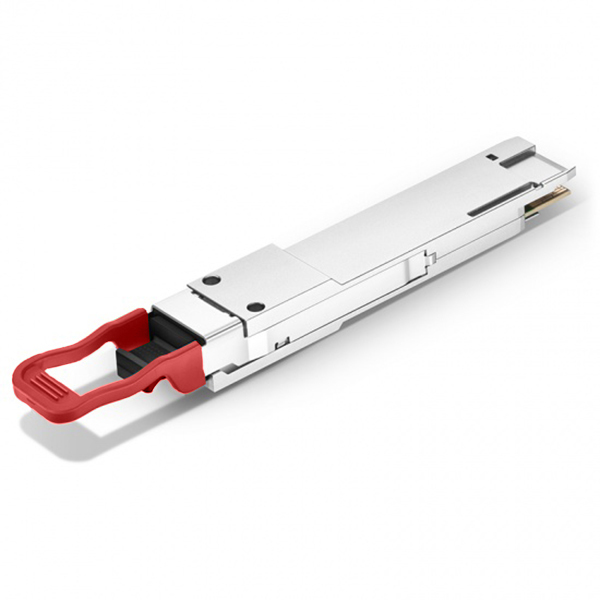

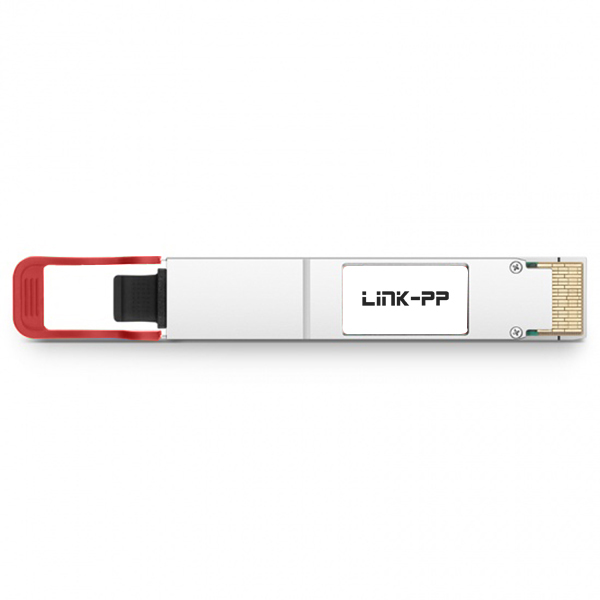

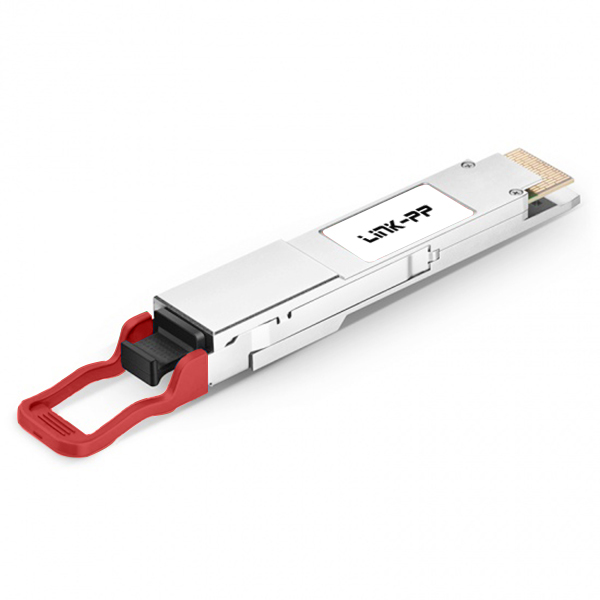

| Item | Fiber Optical Modules |
| Part Status | Active |
| Form Factor | QSFP-DD |
| Max Data Rate | 425Gbps |
| Max Cable Distance | 40km |
| Wavelength | 1310nm |
| Connector | Duplex LC |
| Media | SMF |
| Optical Component | LWDM EML/APD |
| TX Power | -0.6~5.6dBm |
| RX Power | -16.1~-3.4dBm |
| Modulation | 8x 50G PAM4 |
| Powerbudget | 15.5dB |
| Power Consumption | ≤10W |
| Extinction Ratio | 6dB |
| DDM/DOM | DDM Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Warranty | 5 Years |
| Sample | Available |
| Protocols | IEEE 802.3cn, QSFP-DD MSA, CMIS 4.0 |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
Providing a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
