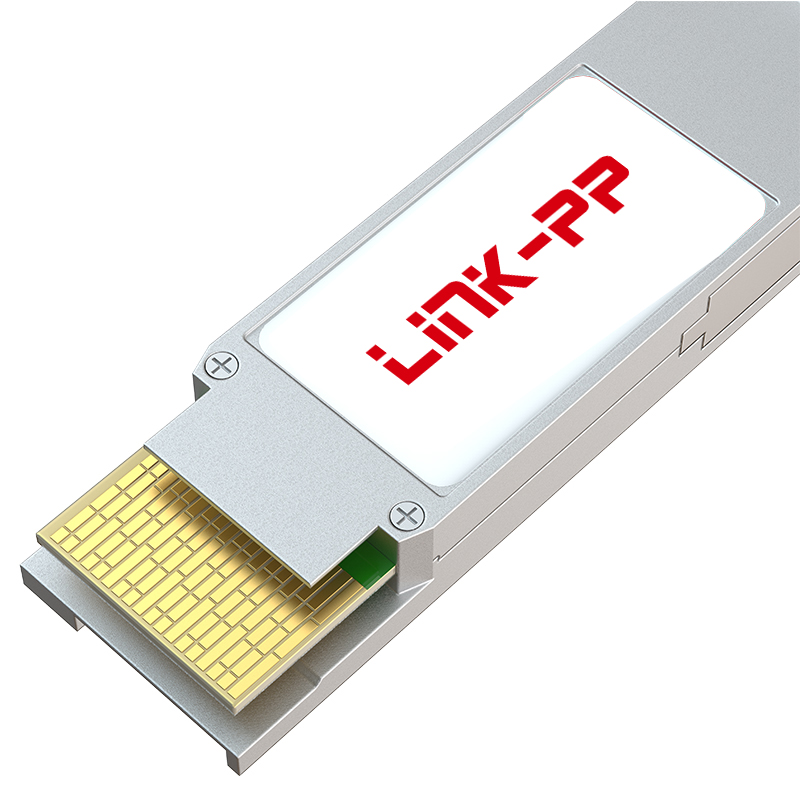

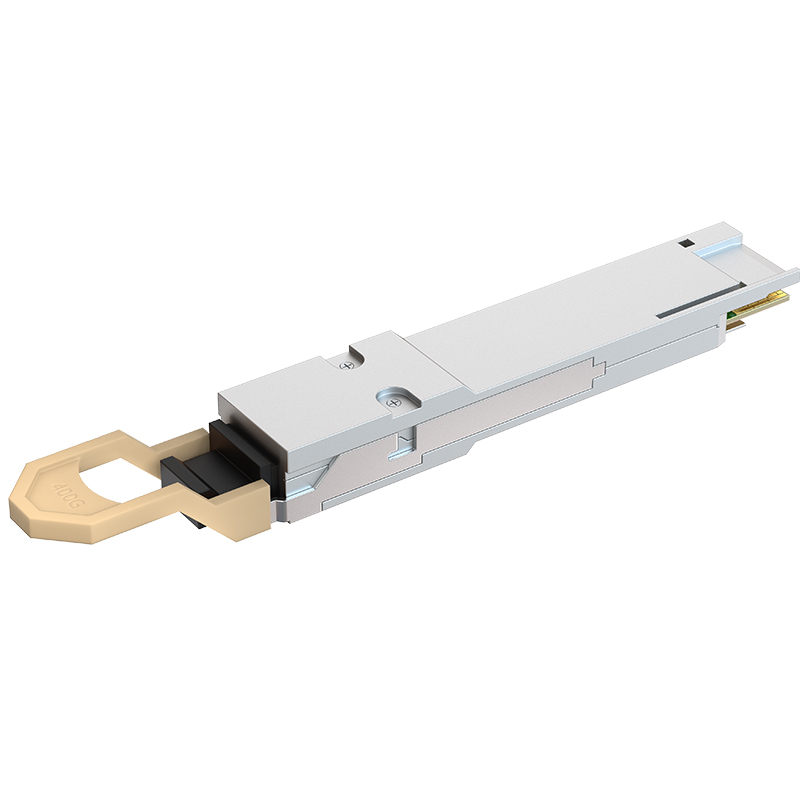

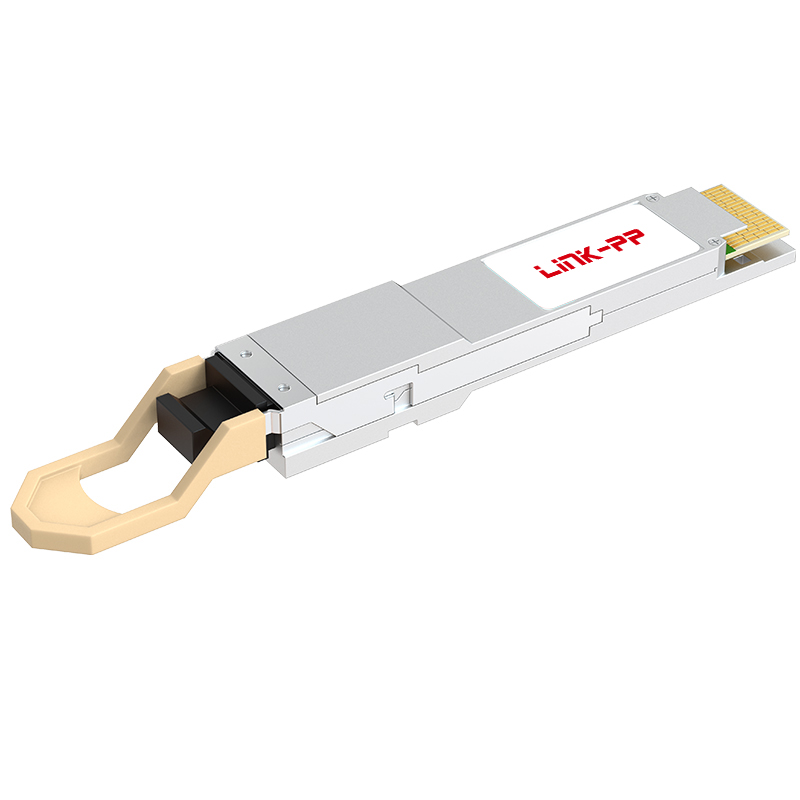

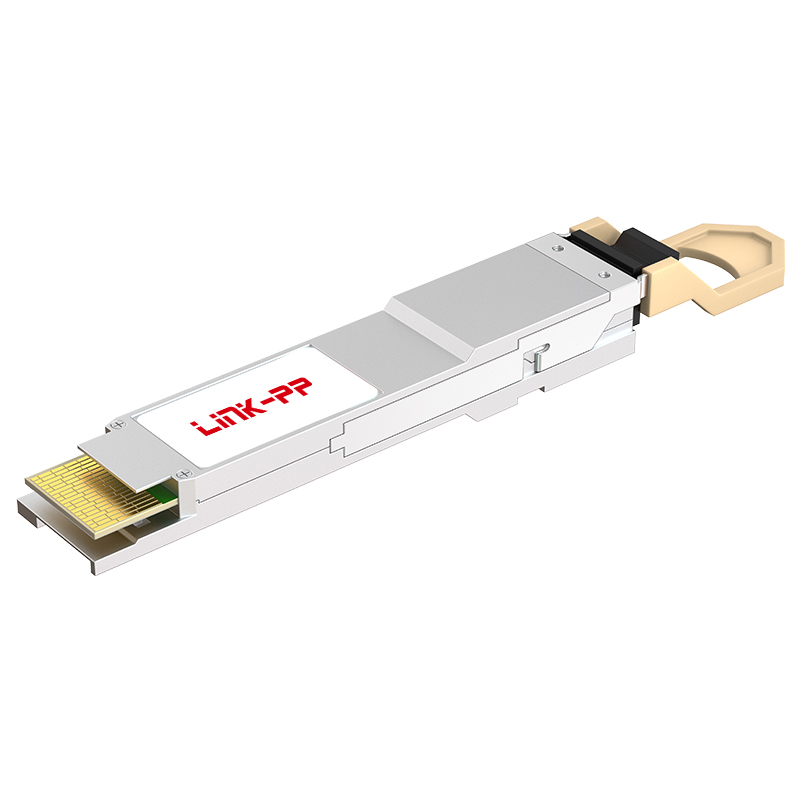

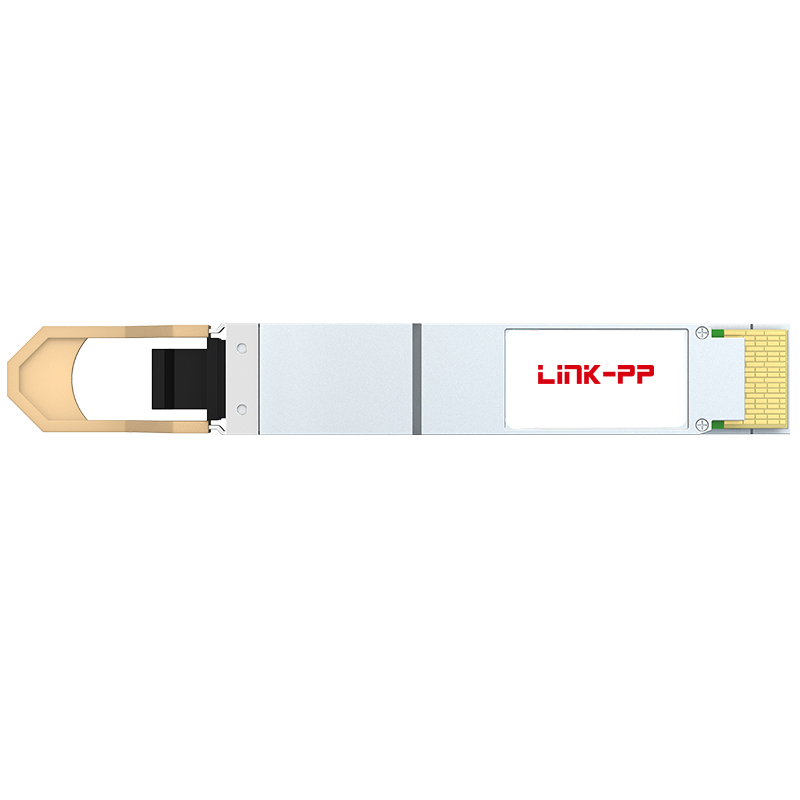

Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Products Description
| Item | Fiber Optical Modules |
| Part Status | Active |
| Form Factor | QSFP-DD |
| Max Data Rate | 400Gbps |
| Max Cable Distance | 70m@OM3 / 100m@OM4 |
| Wavelength | 850nm |
| Connector | MTP/MPO-16 (APC) |
| Media | MMF |
| Optical Component | VCSEL/PIN |
| TX Power | -6~4dBm |
| RX Power | -7.9~4dBm |
| Modulation | 8x 50G PAM4 |
| Power Budget | 1.9dB |
| Power Consumption | ≤10W |
| Extinction Ratio | 3dB |
| DDM/DOM | Supported |
| Temperature Range | 0 to 70°C (32 to 158°F) |
| Warranty | 5 Years |
| Sample | Available |
| Protocols | IEEE 802.3cd, QSFP-DD MSA, CMIS 4.0 |
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Frequently Asked Questions
What is the maximum transmission distance of this 400G SR8 module?
The module supports a maximum cable distance of 70 meters using OM3 multimode fiber (MMF) and up to 100 meters using OM4 multimode fiber.
What type of connector does this transceiver use?
This module is designed with an MTP/MPO-16 (APC) connector, specifically for high-density 400G network environments.
Does the module support real-time monitoring?
Yes, it fully supports DDM (Digital Diagnostic Monitoring), allowing users to monitor parameters such as temperature, voltage, and optical power in real-time.
What are the power requirements for this QSFP-DD module?
The module is designed for high efficiency with a power consumption of ≤10W, making it suitable for modern energy-conscious data centers.
Can I request a sample before placing a bulk order?
Yes, samples are available for quality testing and compatibility verification. Please contact our support team for sample availability.
What standards and protocols does this module comply with?
It complies with IEEE 802.3cd, QSFP-DD MSA, and CMIS 4.0 standards, ensuring broad compatibility across various networking hardware.
