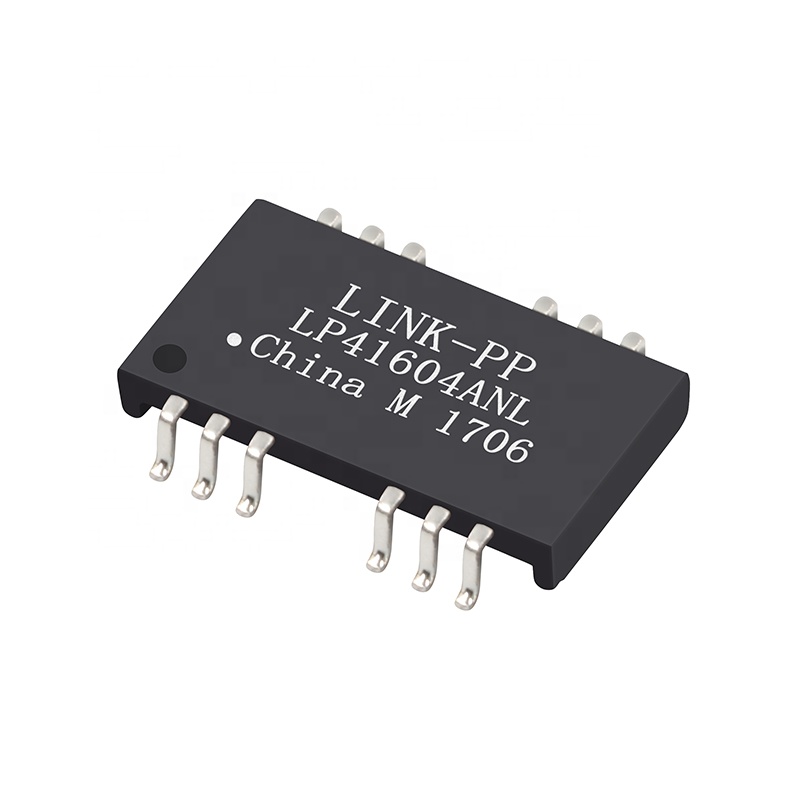

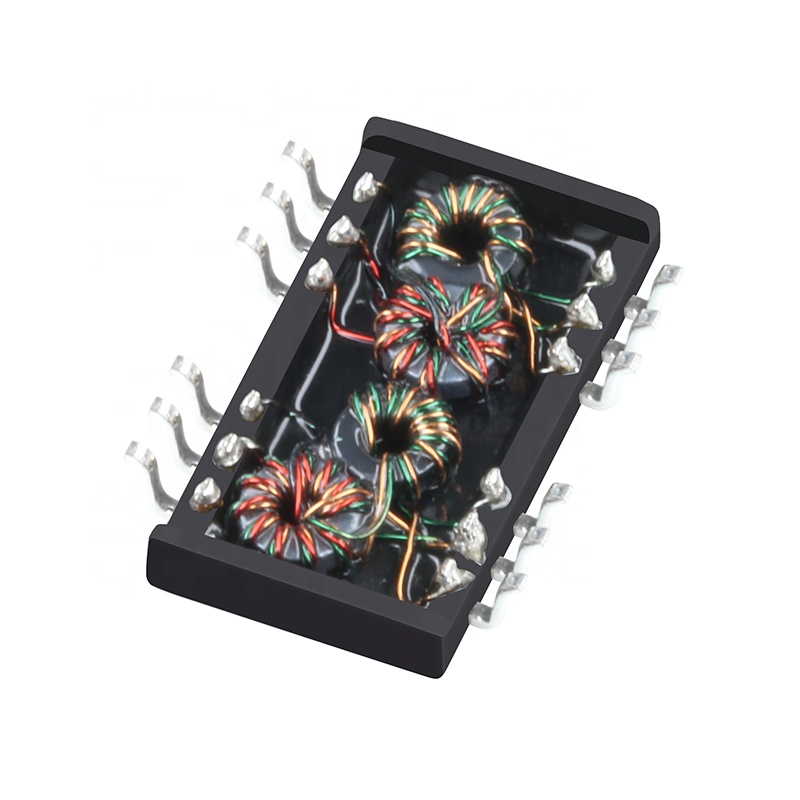

| Item | Lan Transformer |
| Replaceable Brand Model | H81621S |
| Part Status | Active |
| Construction | Open frame |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non PoE) |
| Number of Ports | Single / Dual / Quad |
| Speed | 10 / 100 / 1000 Base-t |
| Cores per Port | 4 / 8 / 12 |

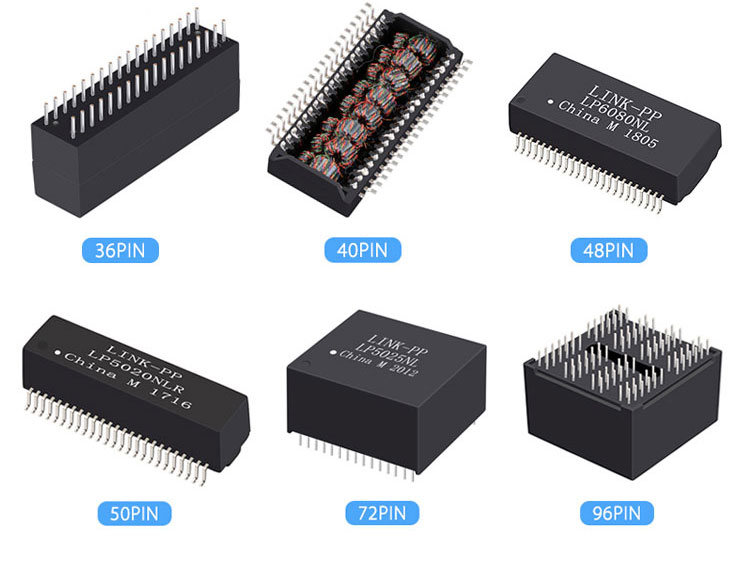

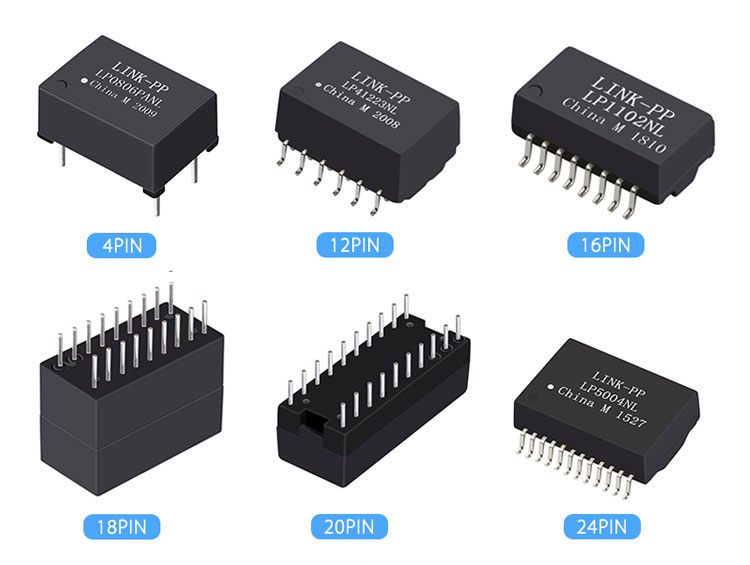

| Pin Number | 10 Pin / 12 Pin / 24 Pin / 48 Pin |
| Mounting Type | Dip / Smt |
| Temperature | 0℃ To 70℃ / -40℃ To 85℃ |
| AutoMDIX | YES |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C,S |
| Package | Tape & Reel |
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Established in 1997, our team provides professional complete solutions for magnetic components and strong technical support. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.
Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter.
