LumoWave
1 / 5
| item | Lan Transformer |
| Place of Origin | China |

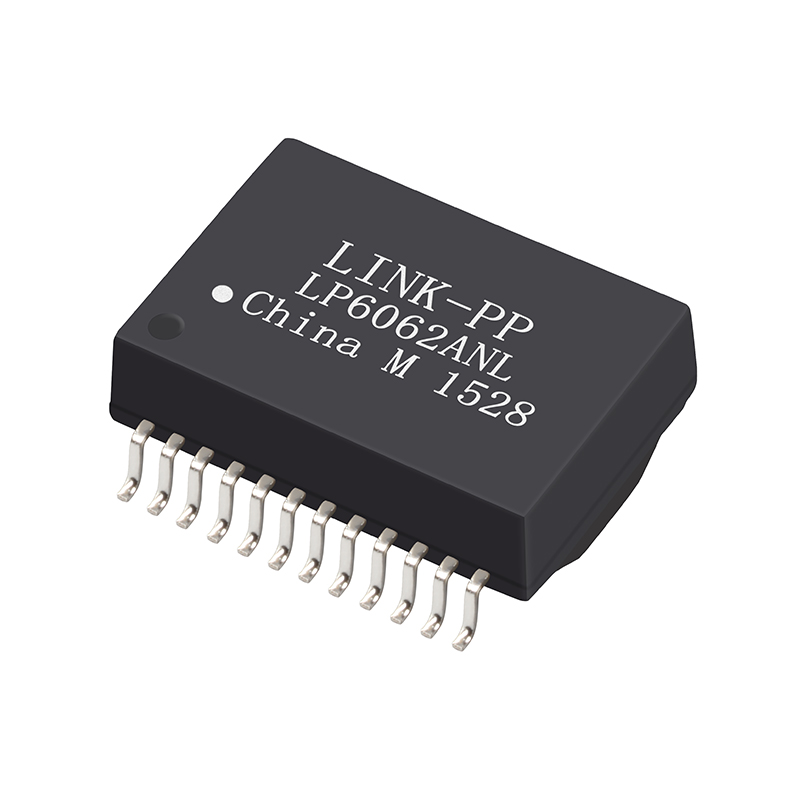

| Part Number: | LP6062ANL |
| Cross Reference | H6062NL |
| Transformer Type | Lan Transformer |
| Application-Lan | Ethernet(PoE+) |
| Number of Ports | Single Port |
| Speed | 10/100/1000 Base-T |
| Package | Tape & Reel |
| Cores per Port | 8 |
| PIN number | 24 Pin |
| Mounting Type | Surface Mount |
| Temperature | -40℃ TO +85℃ |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C,S |
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing facilities and test equipment imported from abroad. With abundant productive capacity of 3000K per month, we are able to deliver goods within a short time. Moreover, we provide professional complete solutions for magnetic components and strong technical support.
Main Products:
• 10/100/1000M LAN pulse transformer and filter
• RJ45 connector with 10/100/1000M magnetic
• T1/E1, T3/DS3/E3/STS-1 interface line transformer
• ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Our products are widely used in networking and communication equipment such as HUB, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.
