Network 8P8C Crystal Head Keystone Jack Connector RJ45 Cat6

Product Description

Product Overview

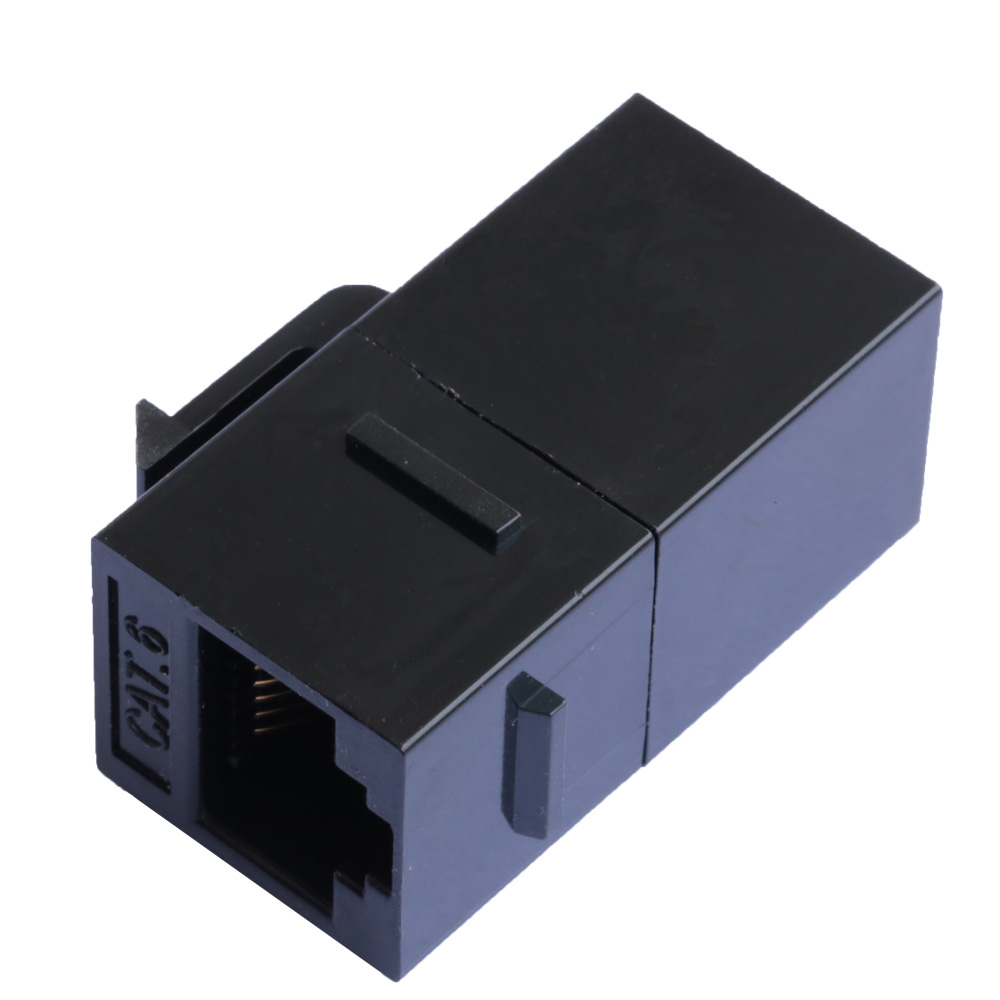

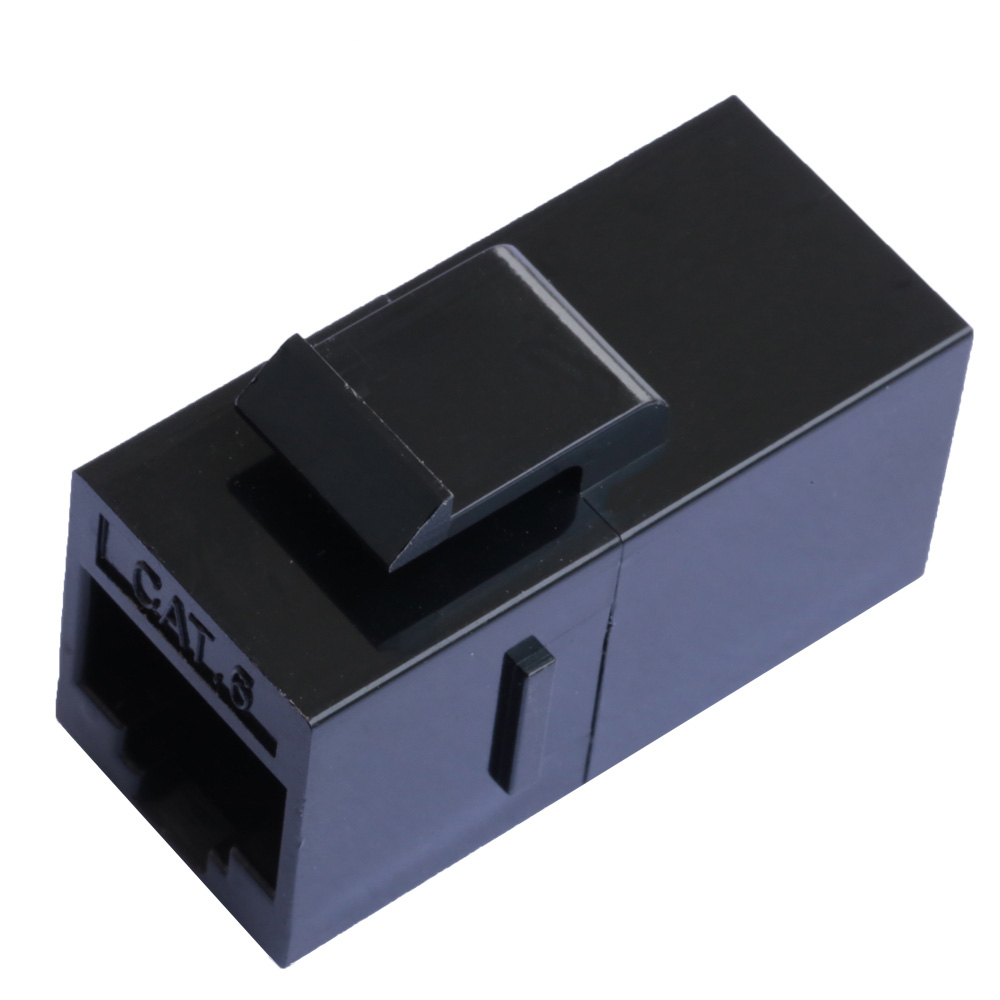

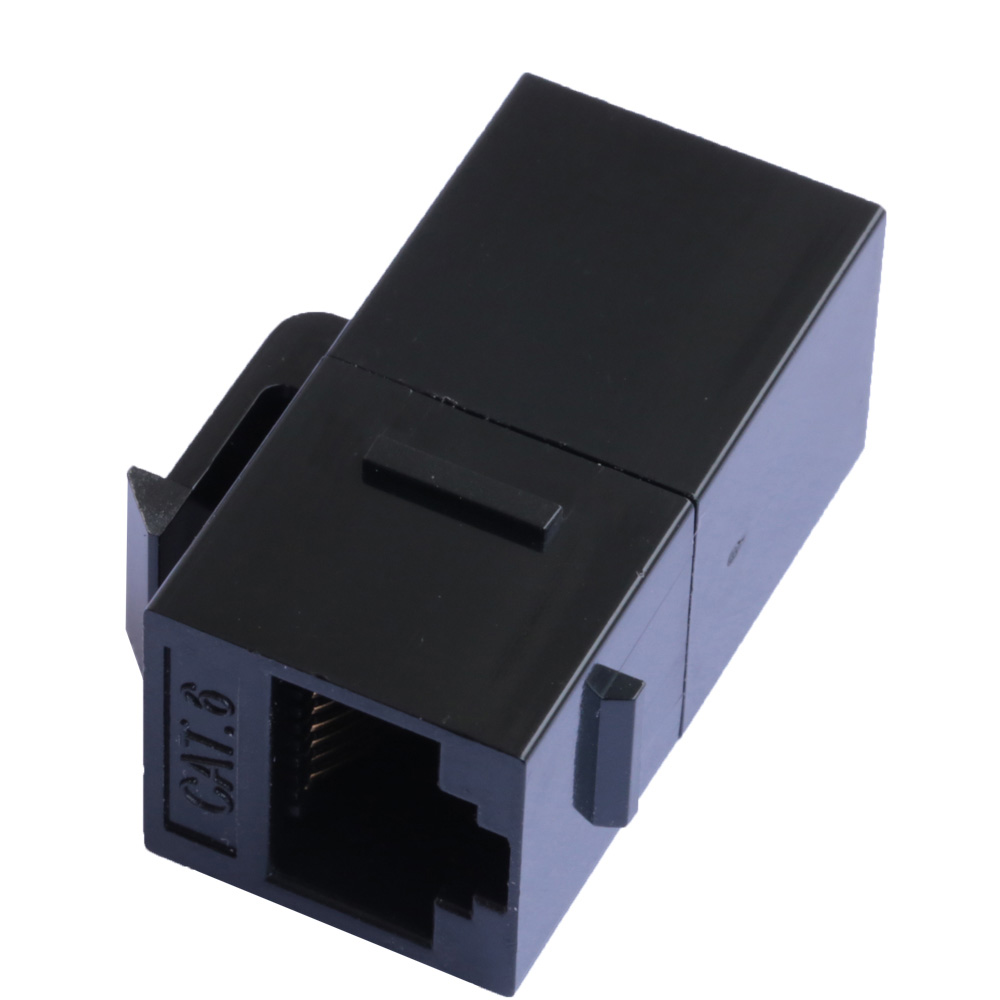

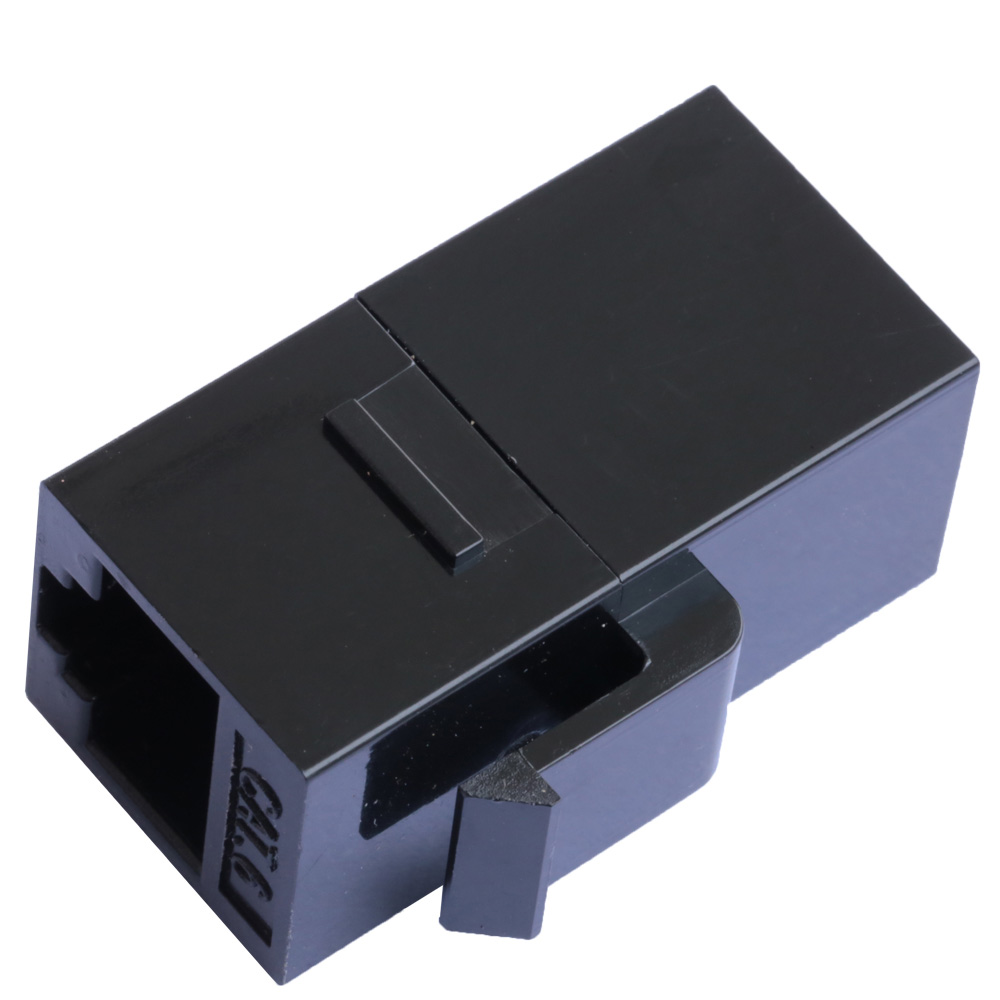

Network 8P8C Crystal Head Keystone Jack Connector RJ45 Cat6

Products Description
ItemRJ45 Female Connector
Part NumberLP88CP03
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet (Non PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
LatchDown
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout
PCBFR4
PCB Retaining PostT POST
Temperature-40℃ TO 85℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
Detail 1
Detail 2

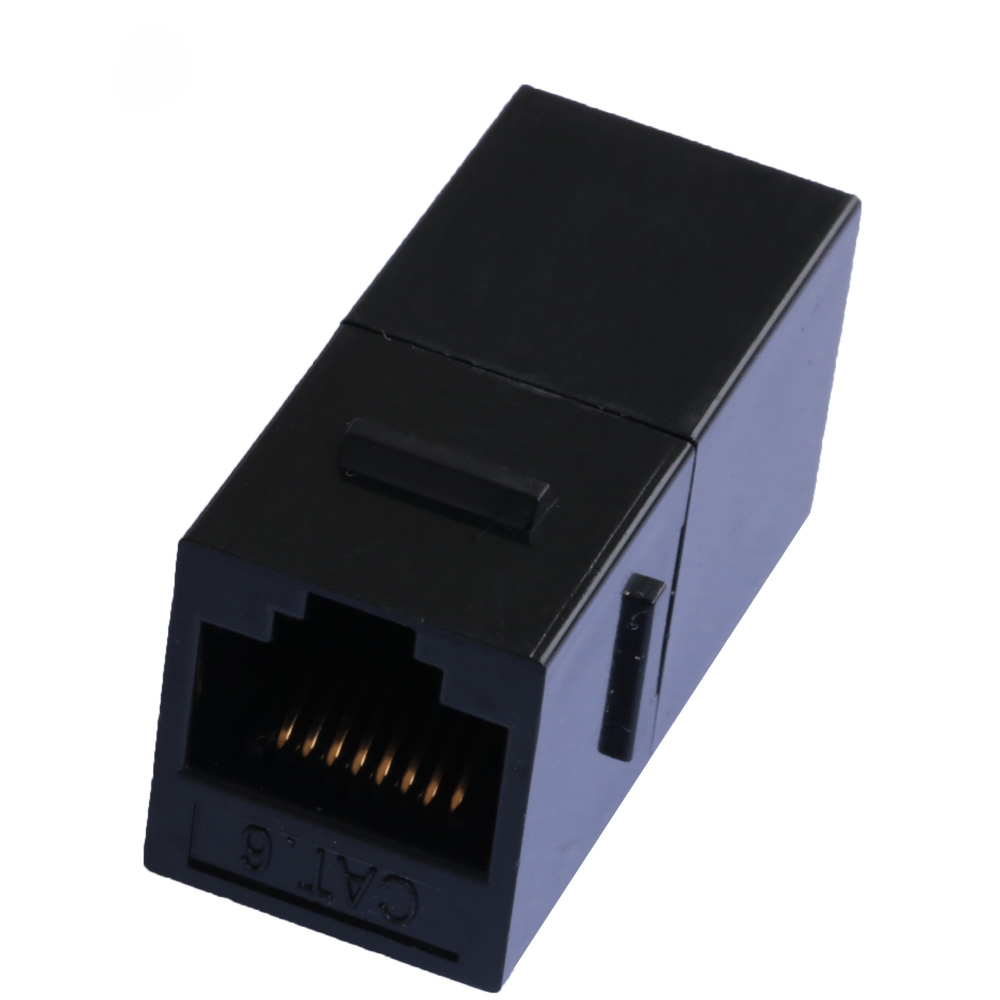

Detail 3
Detail 4
Detail 5
Technical Specifications & Variations
Variation Catalog
Technical Drawing 1
Technical Drawing 2
Mechanical Dimensions
Pin Definition
Schematic Diagram
Board Layout
Professional Manufacturing
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve as a global supplier for magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a world leader in Ethernet RJ45 connectors and LAN transformer solutions.
Facility 1
Facility 2
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees are typically covered by the requester.
What is the standard delivery time?
Items in stock are ready to ship immediately. For mass production, the typical lead time is between 15 to 30 days.
What kind of technical support do you provide?
We offer a one-year guarantee period and provide 24-hour online technical support to assist with integration and specifications.
What are the key advantages of your RJ45 connectors?
With over 19 years of production experience, our products feature high-quality gold plating (up to 30u"), industrial temperature tolerance (-40℃ to 85℃), and robust FR4 PCB material.
Can you handle custom OEM/ODM orders?
Yes, we have extensive custom capabilities. Please contact us to discuss your specific requirements in detail.
