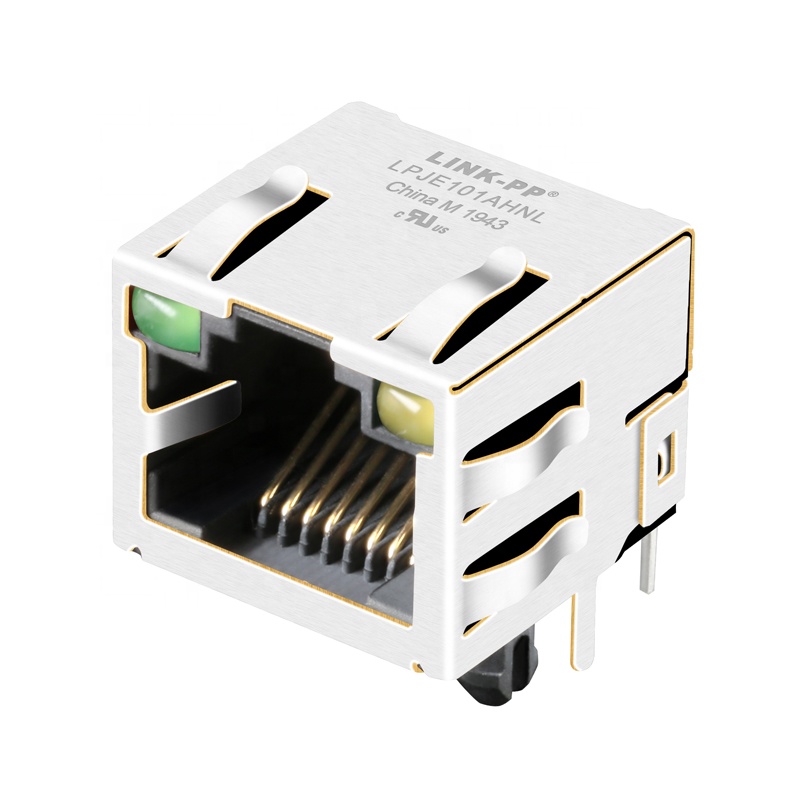

Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4

Send Inquiry

Product Description

Tyco Part Number	1116173-4
LINK-PP Part Number	LPJE101AHNL
Application-LAN	ETHERNET (NON POE)
AutoMDIX	YES
Package Height (Inches/mm)	0.516/13.10
Package Length (Inches/mm)	0.620/15.75
Package Width (Inches/mm)	0.640/16.26
Configuration TX/RX	T, C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	-
Diodes	No
Latch	Up
LED Option	Green/Yellow LEDS
Number of Ports	1X1
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Shield EMI Tabs	WITH
Temperature Range	-40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Preferred Supplier of TI Samsung Cisco Siemens

Our logos are visible on high-end boards like the BeagleBone Board, confirming our position as a trusted industry partner.

Frequently Asked Questions

Q1: What is the operating temperature range for this RJ45 Jack?

A: The operating temperature range is -40 to 85°C, making it suitable for industrial environments.

Q2: Does this model support Power over Ethernet (PoE)?

A: No, this specific part (1116173-4) is designed for non-PoE Ethernet applications.

Q3: What are the LED color options available?

A: This model comes with Green and Yellow LEDs integrated into the modular jack.

Q4: Is the product RoHS compliant?

A: Yes, it is RoHS-5 compliant with lead in solder exemption.

Q5: Can I request free samples for testing?

A: Yes, free samples are available for quality evaluation and design verification.

Q6: What is the typical lead time for bulk orders?

A: The standard delivery time is 2-3 weeks after order confirmation.
