LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
1 / 5
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

Send Inquiry

Product Description

Product Description

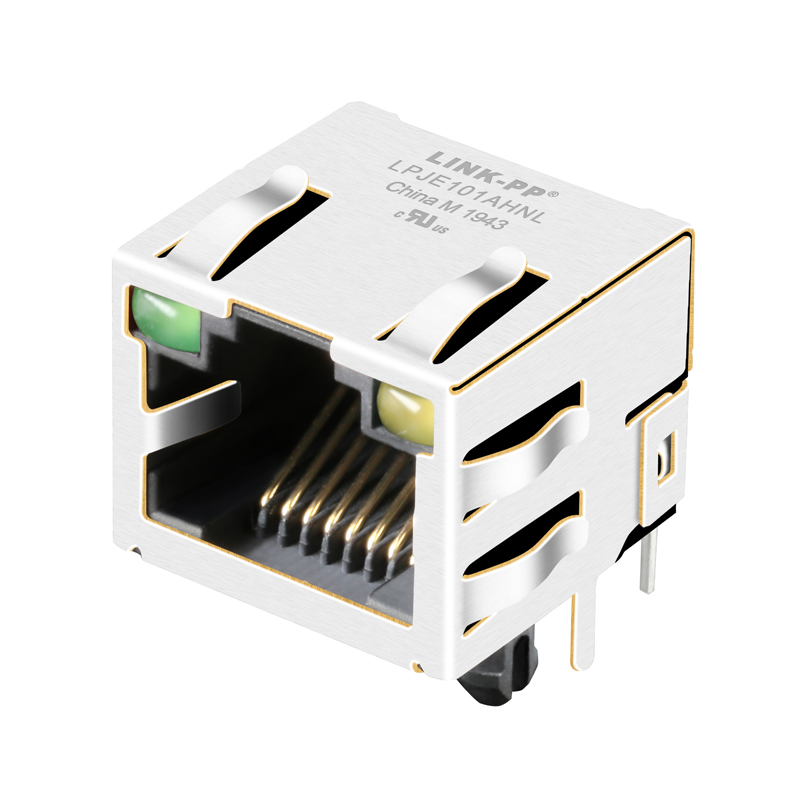

Product View 1

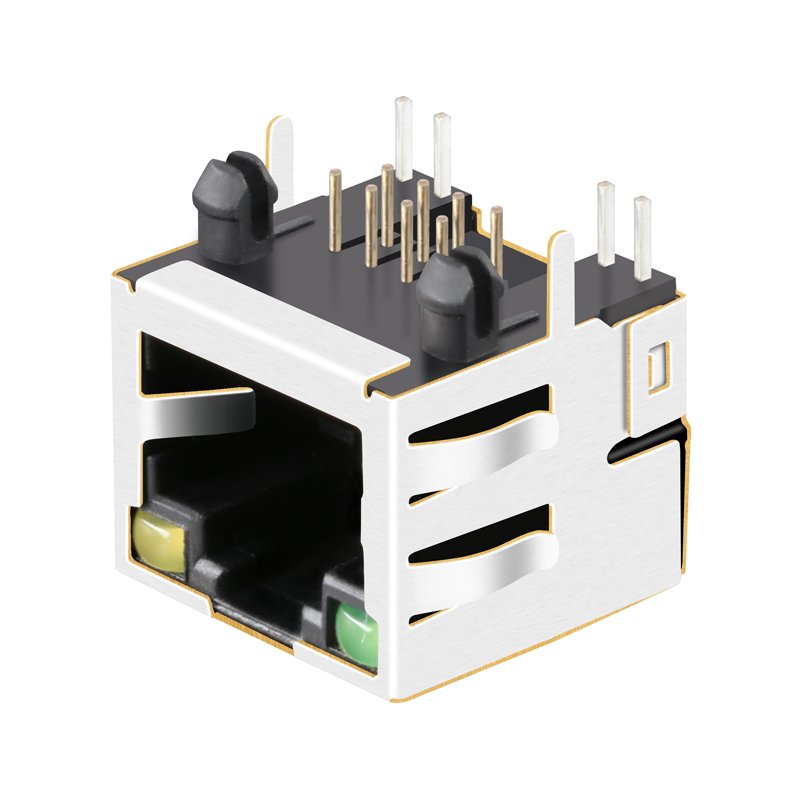

Product View 2

Specification

Model NumberLPJE101AHNL
Part StatusActive
Connector TypeRJ45
ApplicationsWithout Magnetics
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorYellow/Green
ShieldingShielded, EMI Finger
Number of PortsSingle Port
FeaturesBoard Guide
Tab DirectionUp
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature-40°C ~ 85°C

Packing & Delivery

Package:Tray
Carton size:54.5*28.5*27cm
G.W/carton:13.1kg
Qty/carton:3000pcs
SPQ:100pcs
N.W/pcs:0.004kg
Packing Details

Production Facility & Quality Control

Facility 1
Facility 2
Facility 3
Facility 4
Facility 5
Facility 6

Frequently Asked Questions

What is the specific application for model LPJE101AHNL?
This model is a single-port RJ45 connector designed without magnetics, suitable for through-hole mounting.
What are the LED color indicators for this connector?
The LPJE101AHNL features a dual LED configuration with Yellow and Green colors.
Does this RJ45 connector provide EMI protection?
Yes, it is fully shielded and includes an EMI Finger for superior electronic interference protection.
What is the operating temperature range?
This connector is built to perform in industrial environments with an operating temperature range of -40°C to 85°C.
What is the tab direction and orientation of this component?
The connector features an "Up" tab direction and a 90° right-angle orientation for PCB mounting.
How is the product packaged for bulk shipping?
Products are packed in trays, with 3,000 pieces per carton and a Standard Package Quantity (SPQ) of 100 pieces per tray.
