| Item | Value |
|---|---|

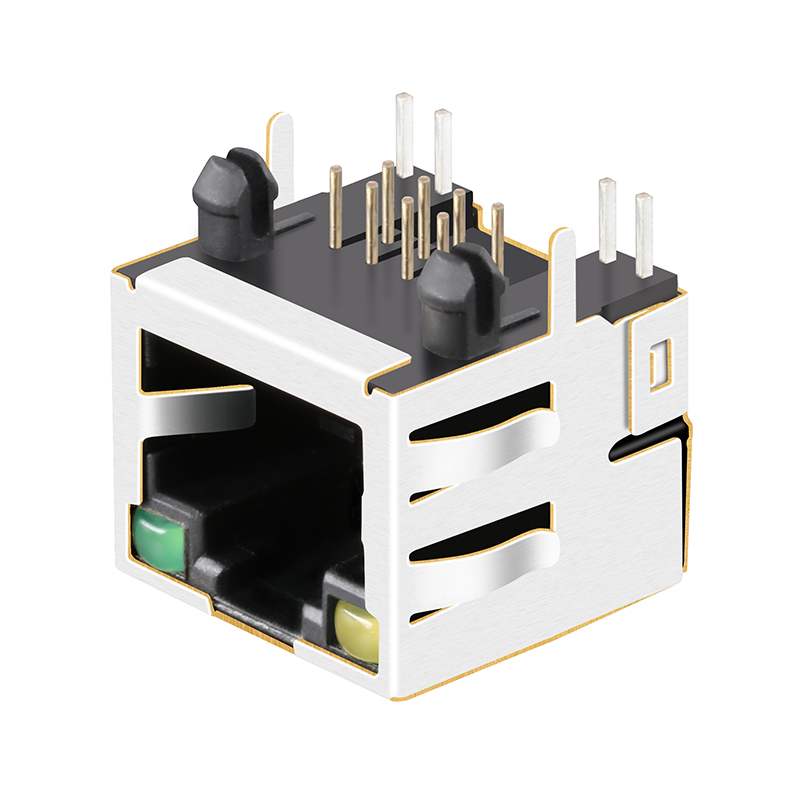

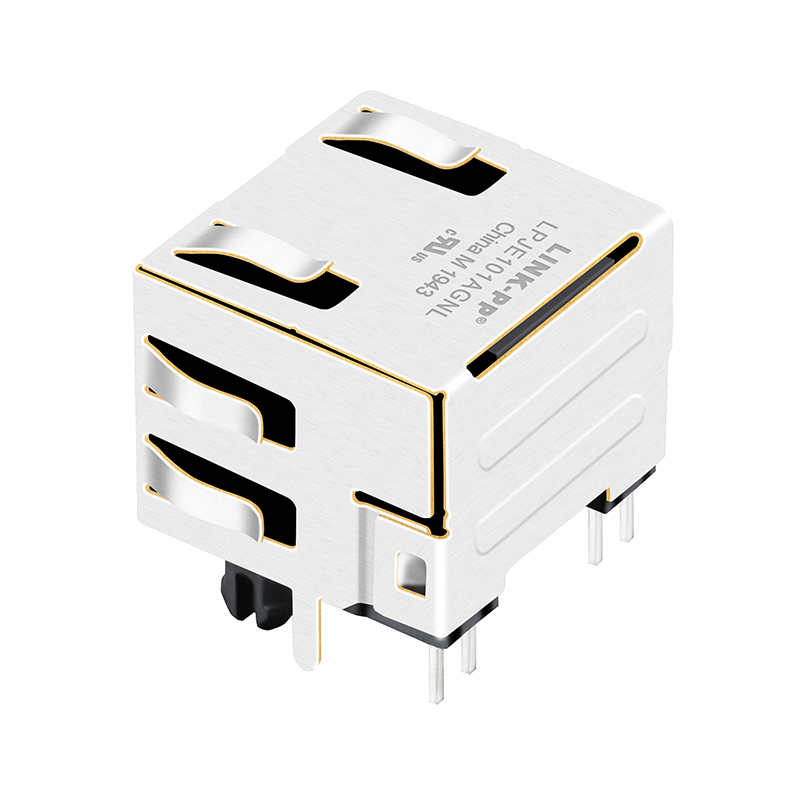

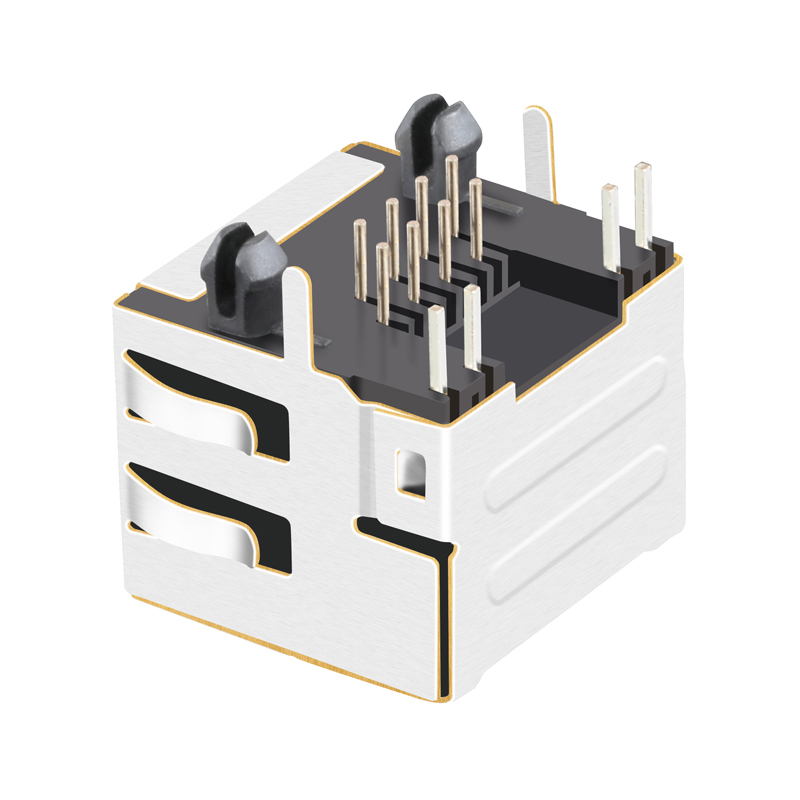

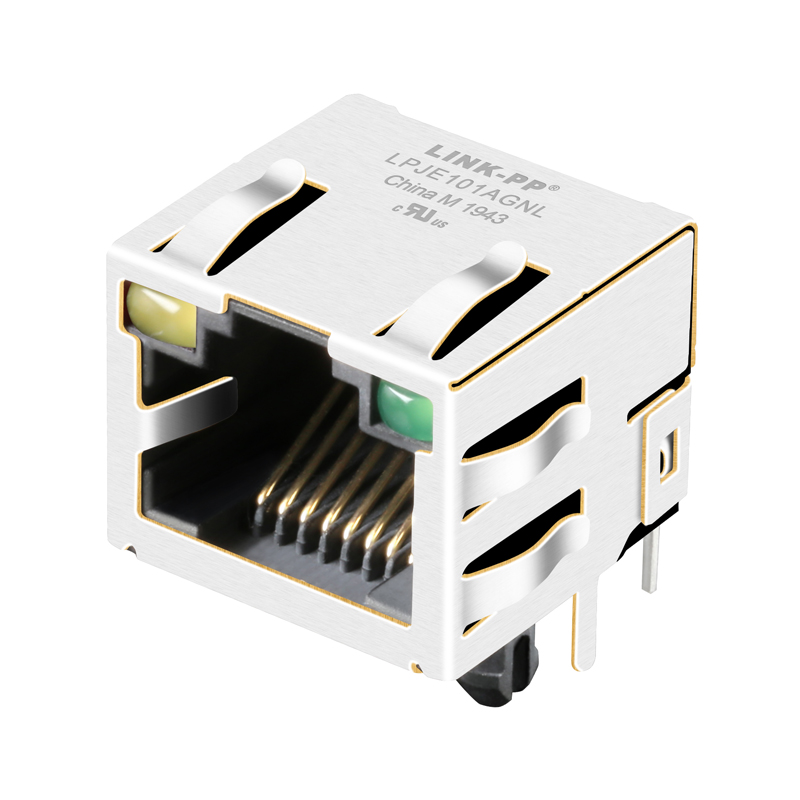

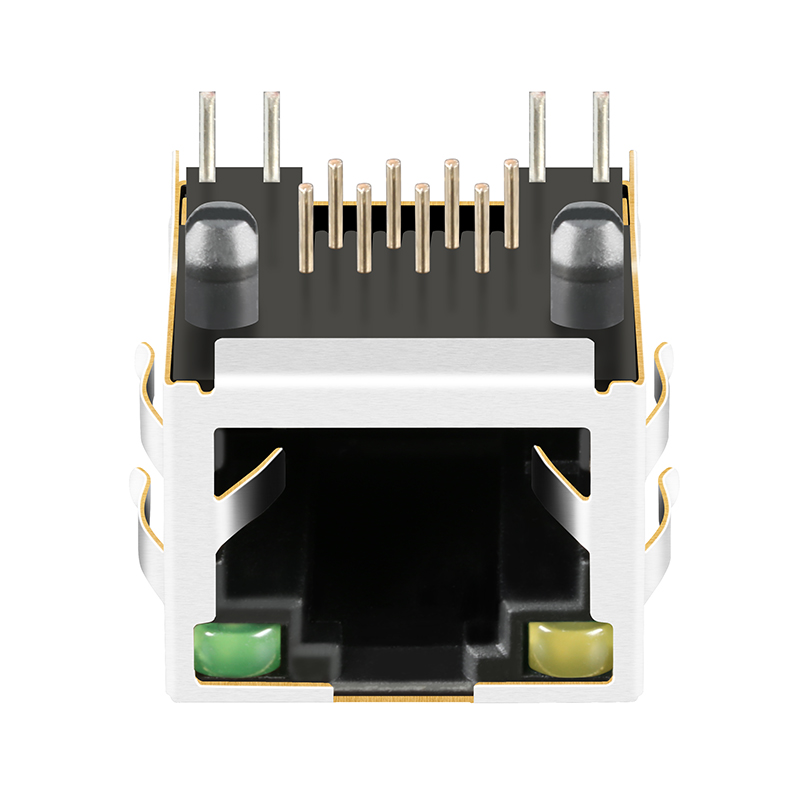

| Model Number | LPJE101AGNL |
| Part Status | Active |
| Connector Type | RJ45 |
| Applications-Lan | - |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| LED Color | Yellow/Green |
| Number of Cores per Jack | - |
| Shielding | Shielded |
| Number of Ports | Single Port |
| Features | Board Guide |
| Tab Direction | Up |
| Contact Finish | Gold |
| Configuration RX/TX | T,C |
| Turns Ratio RX/TX | 1CT:1CT |
| Operating Temperature | -40°C ~ 85°C |
Package Details: 100 pcs in 1 tray, 3000 tray in 1 carton.
Carton Dimensions: 54.5*28.5*27cm
Weight: 13.1KGS per carton (3000pcs)
RJ45 Connector with integrated transformer / common mode choke. Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s. Available in SMT, THT and THT with USB. Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt. HPLE products: Improved Common Mode Rejection due to additional NiZn cores.
